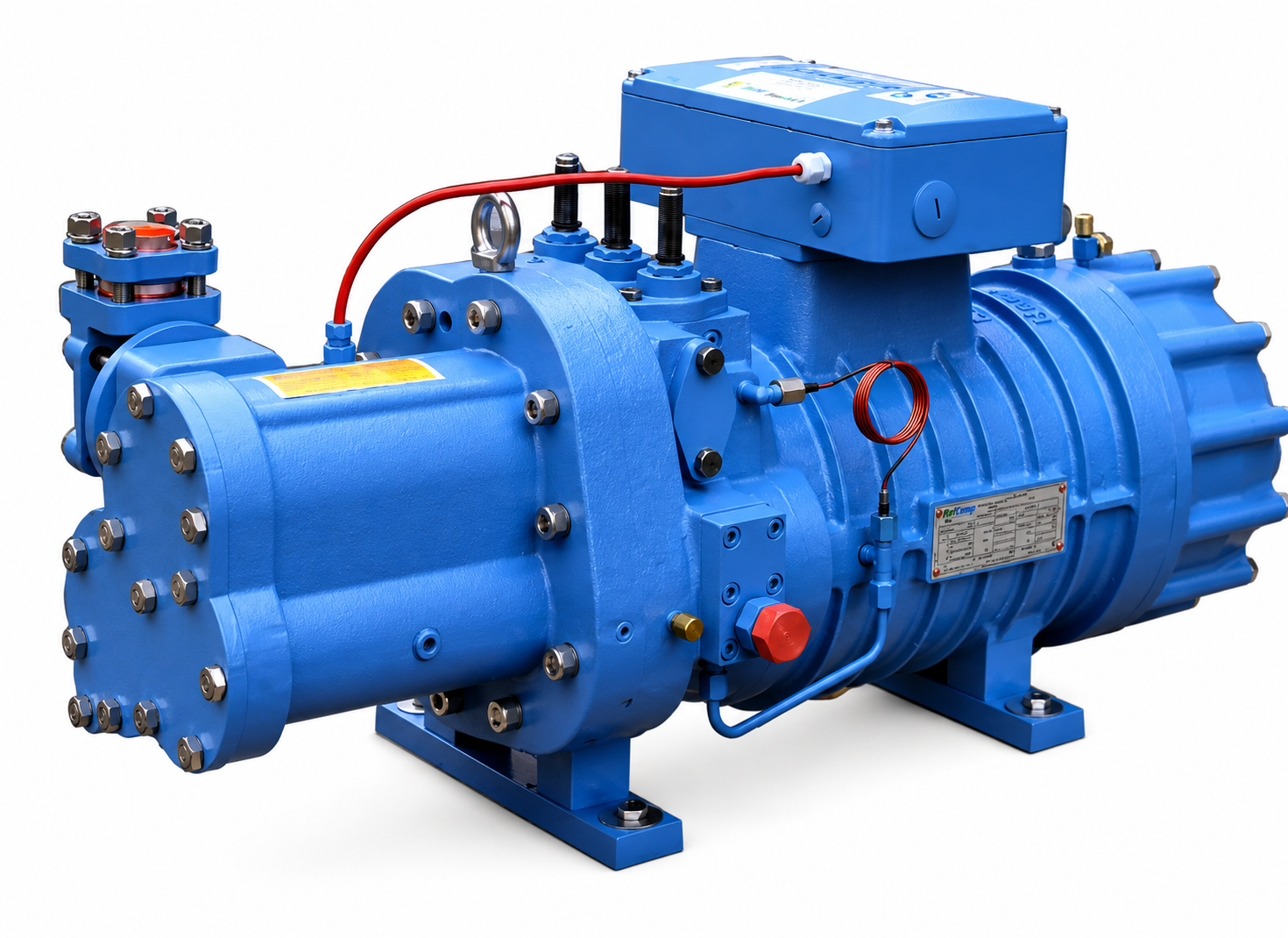

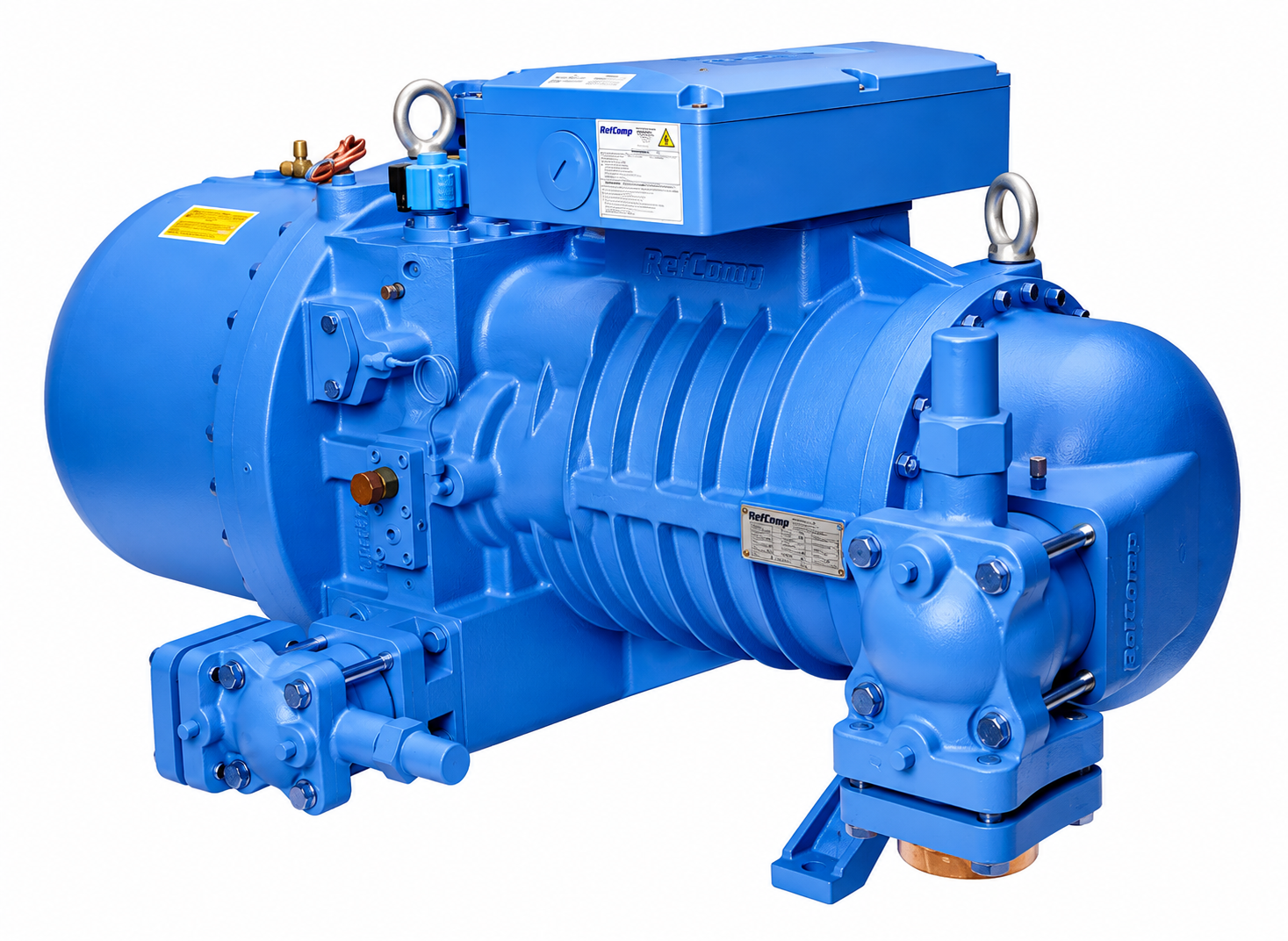

RefComp SW5L020 20 HP Semi-Hermetic Screw Compressor

Name: RefComp SW5L020 20 HP Semi-Hermetic Screw Compressor
Brand: Freezing valley Refrigeration Equipment
Availability: InStock

$0.00

-1%

The RefComp SW5L020 is a high-efficiency semi-hermetic screw compressor from the SW5 Series, specifically designed for medium and low-temperature commercial and industrial refrigeration applications.

With a 20 HP motor and displacement of 84 m³/h at 50 Hz, the SW5L020 provides reliable performance for cold storage, freezer rooms, food processing, process cooling and other demanding refrigeration systems.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Download

Description

⚙️ Main Specifications

🔹 Model: SW5L020
🔹 Series: SW5
🔹 Type: Semi-Hermetic Screw Compressor
🔹 Motor Power: 20 HP
🔹 Displacement @ 50 Hz: 84 m³/h
🔹 Housing Size: 1
🔹 Built-in Vi: 4.0
🔹 Application: Medium / Low Temperature Refrigeration
🔹 Electrical Box Protection: IP54

❄️ Refrigerants

Compatible refrigerants for the SW5 Series include:

R404A, R507, R448A, R449A, R407C, R1233ze and R22

✅ Key Features

🔹 Patented variable Vi compression ratio
🔹 Built-in step or stepless capacity control
🔹 High-efficiency screw compressor design
🔹 Suitable for heavy-duty and continuous operation
🔹 Compatible with variable-speed operation using an external inverter
🔹 Electronic motor protection
🔹 Compact design for easier installation and maintenance

🏭 Applications

Suitable for:

🔹 Cold storage rooms
🔹 Walk-in freezers
🔹 Industrial refrigeration
🔹 Food processing facilities
🔹 Process cooling
🔹 Central refrigeration systems
🔹 Refrigeration compressor racks

Shipping is not included and will be quoted separately according to the delivery destination.
