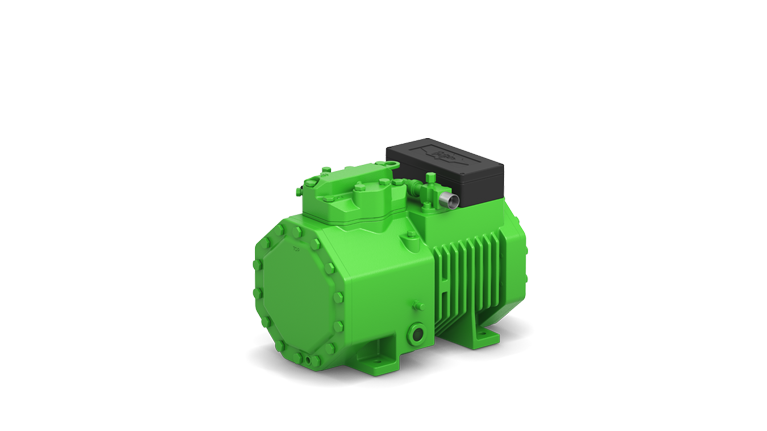

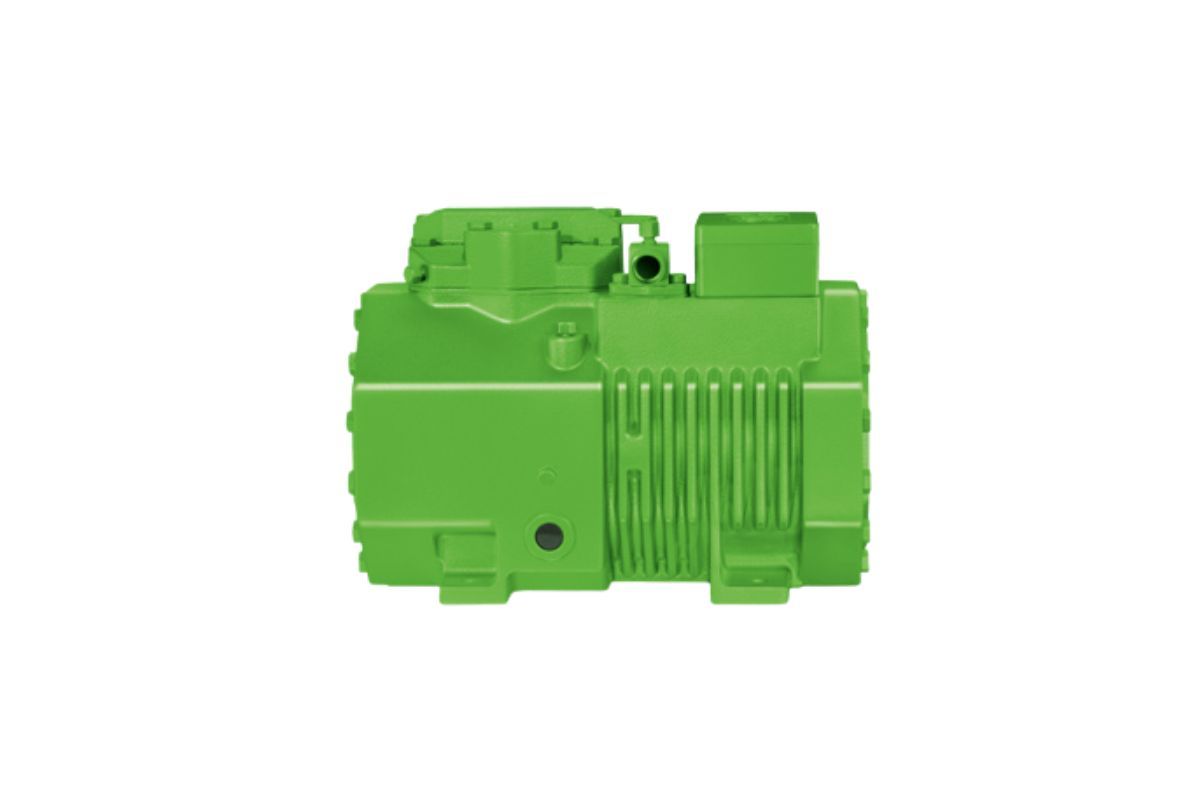

Bitzer 2CES-4Y Semi-Hermetic Reciprocating Compressor

🔧 Technical Data Summary

• Displacement (1450rpm, 50Hz): 16.24 m³/h
• Displacement (1750rpm, 60Hz): 19.60 m³/h
• Number of Cylinders × Bore × Stroke: 2 × 55 mm × 39.3 mm
• Weight: 76 kg
• Maximum Pressure (Low Pressure/High Pressure): 19 bar / 32 bar
• Connection - Suction Line: 22 mm – 7/8”
• Connection - Discharge Line: 16 mm – 5/8”
• Max. Operating Current: 10.0 A
• Starting Current (Rotor Locked): 44.2 A
• Max. Power Input: 5.6 kW
• Horsepower: 4 HP
• Oil Type:

• R134a/R407C/R404A/R507A/R407A/R407F → BSE32 (Standard)
• R134a (condensing temp >70°C) → BSE55 (Option)
• R22 (R12/R502) → B5.2 (Option)
• R1234yf → BSE32 (Standard) / BSE55 (Option if >70°C)
• R1234ze → BSE55 (Standard) / BSE85K (Option if conditions apply)
• R454C/R455A → BSE32 (Standard)
• R515B → BSE55 (Standard) / BSE85K (Option if conditions apply)

• Application: Medium- and low-temperature cold rooms, refrigeration cabinets, and air-cooled condensing units.

🔵 Why Choose This Compressor:

• Renowned Bitzer reliability and performance
• Compact, robust design ideal for limited-space installations
• Low operational noise and minimal vibration
• Easy servicing with accessible components
• Compatible with modern, eco-friendly refrigerants
• Perfect for supermarkets, food processing plants, restaurants, and industrial cold storage

📦 Need a Condensing Unit or Other Bitzer Models?

We offer a wide range of Bitzer compressors, condensing units, and original spare parts at competitive prices with worldwide shipping.

📧 Email us | 📞 Call or WhatsApp us

Please contact us if you have any questions — we’re ready to support your project!

🚚🌍 Shipping:

We ship worldwide!

• Standard voltage models (380V / 50Hz) are available for quick dispatch.
• For other voltages (such as 60Hz or custom motor options), please allow an additional 3–4 weeks for production.

📧 Contact us for more details about shipping and production times!

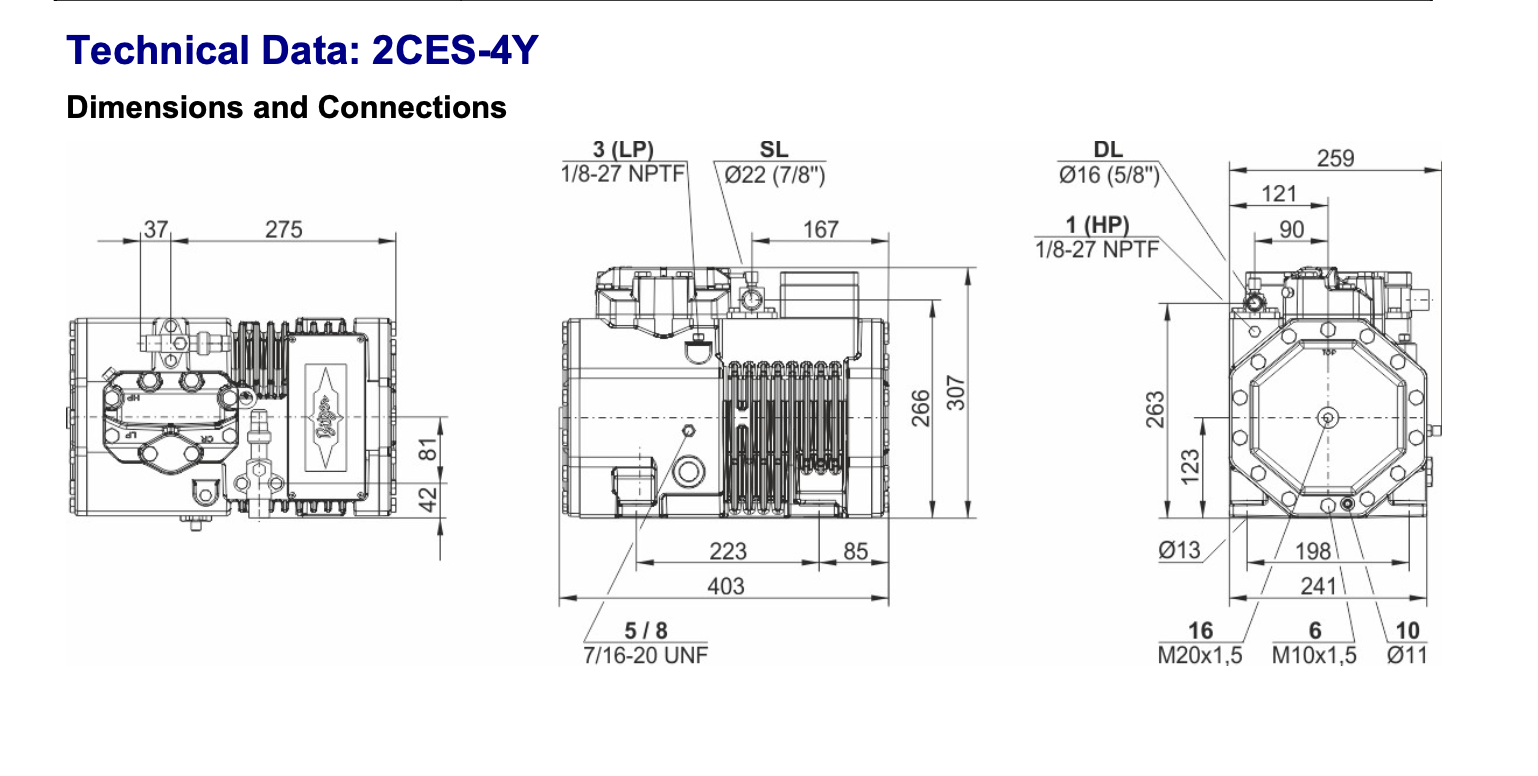

📑 For More Technical Data:

If you would like to view detailed 🔧 technical information (performance tables, mass flow, efficiency data),

please download the full datasheet available above.
