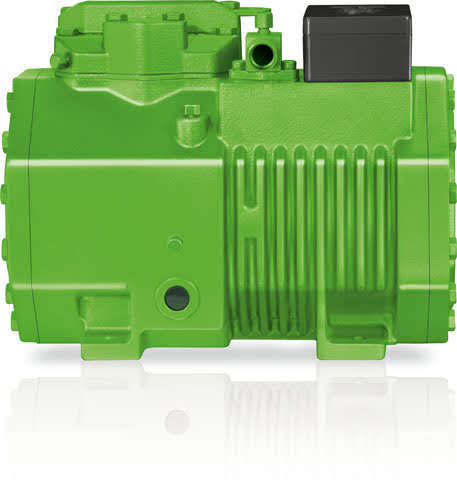

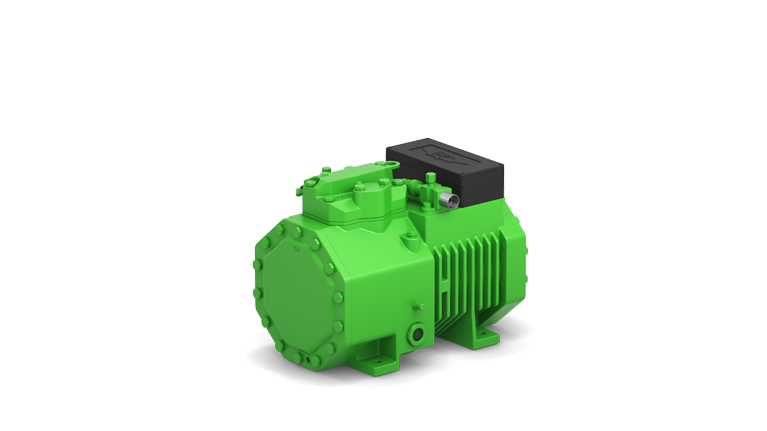

Bitzer 2CES-3Y Semi-Hermetic Reciprocating Compressor

🔧 Technical Specifications

• Displacement (50Hz): 16.24 m³/h
• Displacement (60Hz): 19.60 m³/h
• Cylinders / Bore / Stroke: 2 × 55 mm × 39.3 mm
• Weight: 76 kg
• Max Pressure (Low / High): 19 bar / 32 bar
• Suction Connection: 22 mm – 7/8”
• Discharge Connection: 16 mm – 5/8”
• Max Operating Current: 9.1 A
• Locked Rotor Amps: 37.0 A
• Max Power Input: 5.0 kW
• Horsepower: 3 HP

🛢 Oil & Refrigerant Compatibility

• Standard Oil: BSE32
• Compatible Refrigerants:
  • R134a, R407C, R404A, R507A, R407A/F → BSE32
  • R134a >70°C → BSE55
  • R22 → B5.2
  • R1234yf → BSE32 / BSE55
  • R1234ze → BSE55 / BSE85K
  • R454C, R455A → BSE32
  • R515B → BSE55 / BSE85K

💡 Why Choose the 2CES-3Y

✔️ Compact design with strong cooling output

✔️ Quiet, low-vibration operation

✔️ Easy to maintain with service-accessible layout

✔️ Built for continuous duty and tough environments

✔️ Compatible with eco-friendly refrigerants

✔️ Ideal for cold rooms, display cabinets, small condensing units, and supermarkets

📦 Condensing Units & Spare Parts

We offer complete Bitzer condensing units and spare parts, all available with international shipping.

📧 Email us | 📞 Call or WhatsApp us

We’re ready to assist with sizing, pricing, and shipping options.

🚚 Shipping & Availability

• ✅ Standard 380V / 50Hz models ready for dispatch
• ⚙️ Custom voltage options (e.g., 60Hz) available in 3–4 weeks
• 🌍 Worldwide shipping supported

📑 Technical Datasheet

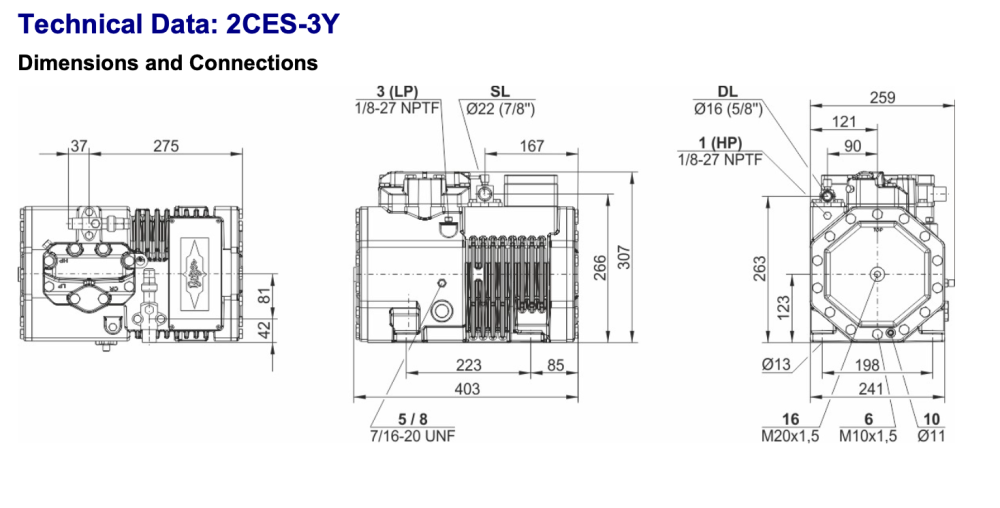

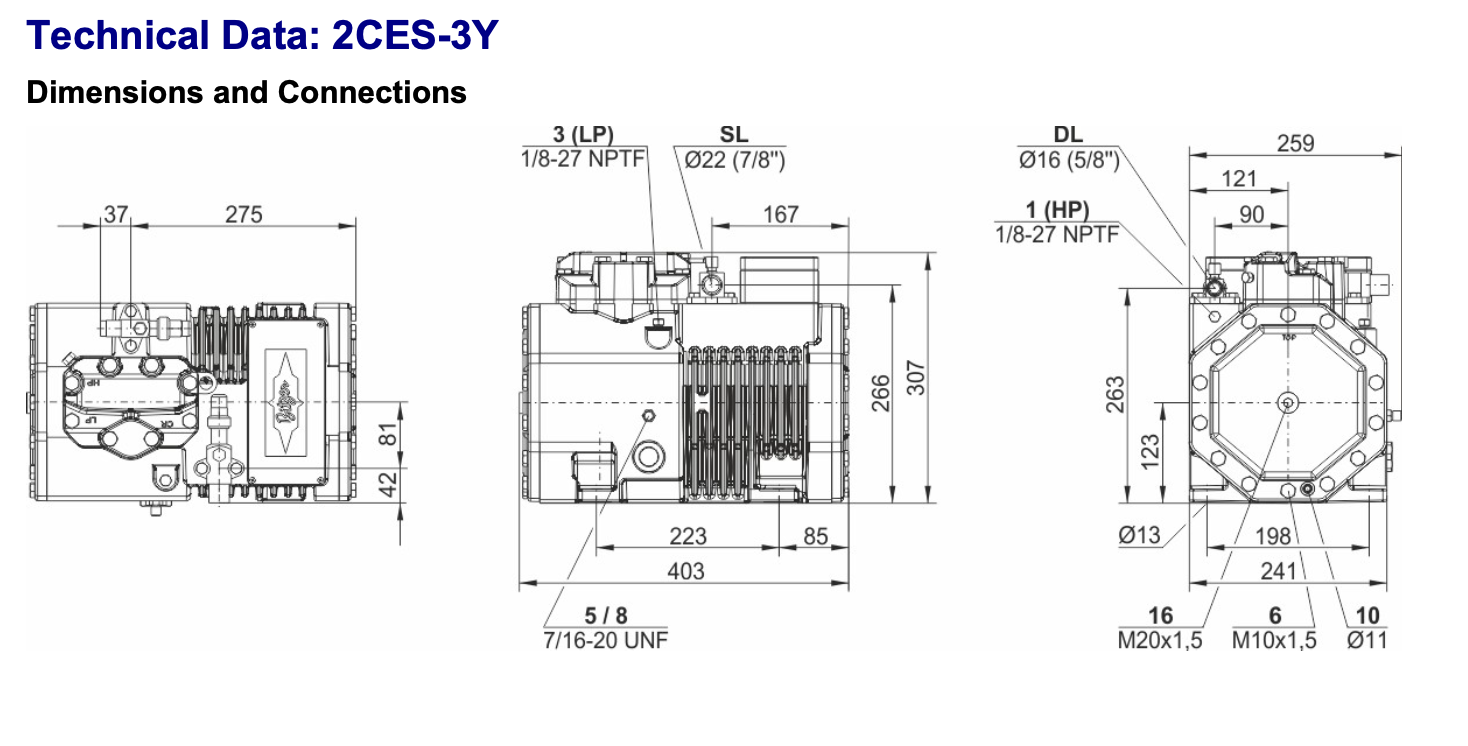

For full performance curves, dimensions, and accessory options, please download the datasheet linked above.
