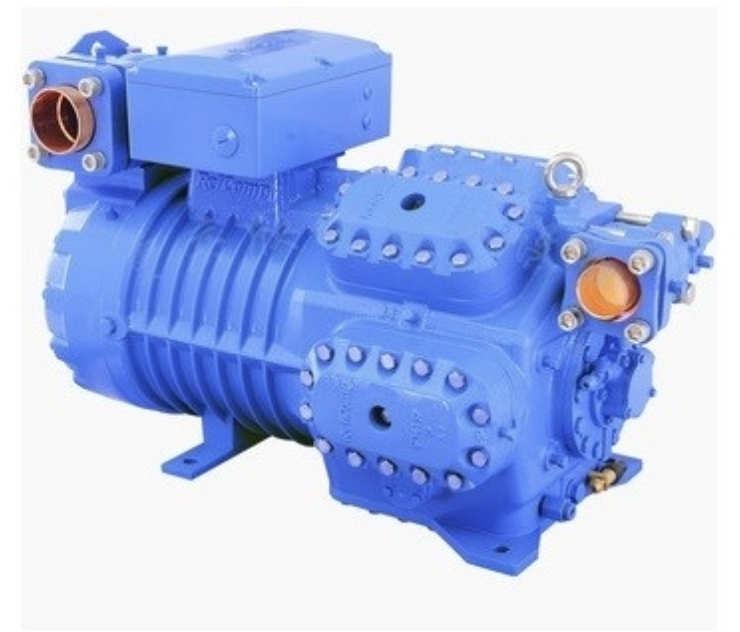

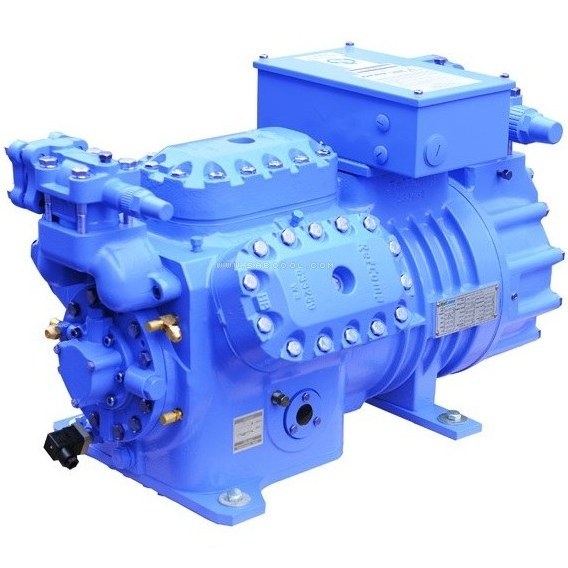

RefComp SP4HF/SPHN 1500 High-Temperature Piston Compressor

✅ Key Specifications

• Model: SP4HF/SPHN 1500

• Rated Power: 15 HP

• Displacement at 50 Hz: 49 m³/h

• Number of Cylinders: 4

• Weight: 152 kg

• Oil Charge: 2.6 dm³

• Standard Motor Voltage:

  • Δ 230 V / 3 / 50 Hz

  • Y 400 V / 3 / 50 Hz

• Max Running Current: 33 A

✅ Key Benefits

• Italian Engineering & Reliability: RefComp compressors are built in Italy, known for precision, quality, and robust performance in refrigeration.

• Powerful & Dependable: With a 4-cylinder piston design, this unit provides consistent cooling power for even the most demanding applications.

• Space-Saving Design: Compact construction that integrates seamlessly into a variety of commercial and industrial refrigeration systems.

• Energy Efficiency: Engineered to deliver strong cooling capacity with optimized energy consumption.

• Ideal for Long-Term Storage: Delivers reliable performance for long-term storage of temperature-sensitive goods.

✅ Applications

• Commercial and industrial refrigeration systems

• Walk-in cold rooms and chillers

• Process cooling

• High-temperature storage and preservation

✅ Shipping & Availability

We ship worldwide, using secure and professional packaging to protect your investment.

• Standard Voltage (50 Hz): ready to ship.

• 60 Hz voltage option: available upon request—please allow 2–3 weeks for preparation and adaptation.
