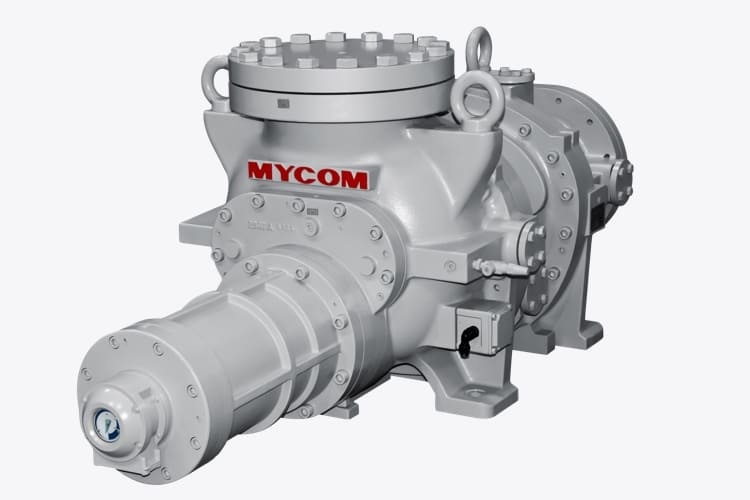

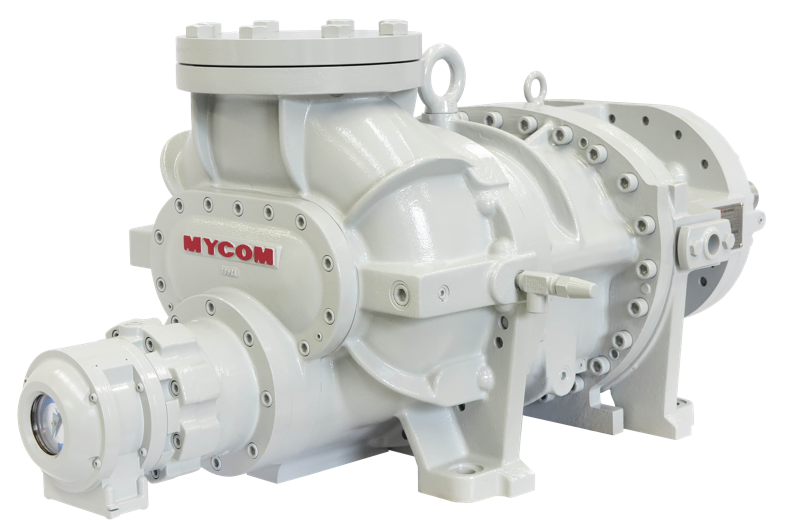

MYCOM Mayekawa SCV-Series Screw Compressors

🔧 Key Features & Technical Advantages

✓ Wide Displacement Range

The SCV-Series offers 13 different compressor sizes, covering a displacement range from:

• 415 m³/h to 4740 m³/h at 2950 rpm

• 244 CFM to 2790 CFM at 3550 rpm

This makes the series suitable for:

• Cold storages

• Food processing facilities

• Blast freezers

• Industrial air conditioning

• Ice plants

• Chemical cooling processes

🔄

✓ Variable Vi Mechanism (2.63 – 5.80)

The adjustable Vi system ensures maximum efficiency across a wide temperature range, allowing the compressor to automatically adapt to:

• Evaporating temperature changes

• Compression ratio needs

• Low-temperature or high-temperature operation

This results in:

• Lower energy consumption

• Improved system performance

• Better load control

🌍

✓ Broad Refrigerant Compatibility

The SCV-Series supports both natural and synthetic refrigerants:

• Ammonia (NH₃)

• Propane (R290)

• Fluorocarbons (R404A, R507, R134a, etc.)

This flexibility makes it ideal for modern low-GWP systems as well as existing industrial installations.

🌀

✓ Proven 4:6 Rotor Configuration

MYCOM’s durable 4:6 male-female rotor design offers:

• High volumetric efficiency

• Low vibration

• Reduced wear and long service life

• Reliable performance in 24/7 industrial environments

This configuration has been used globally for decades and is known for outstanding stability.

⚙️

✓ Suitable for a Wide Range of Applications

The SCV-Series is widely used in:

• Industrial refrigeration

• Large cold storage facilities

• Food manufacturing and processing

• Air conditioning systems

• Ice rinks and ice production plants

• Chemical process cooling

Its versatility makes it one of MYCOM’s most popular compressor families.

🔌

Available Voltages

The SCV-Series is available in:

• 50 Hz

• 60 Hz

Suitable for installations worldwide.

🛠️

Installation & Service Benefits

• Robust construction for long operating life

• Easy integration into multi-compressor systems

• Compatible with MYCOM oil separators and control packages

• Excellent global service and spare parts availability

🕒

Supply Lead Time

Lead times depend on the specific SCV-Series unit and global availability.

➡️ Please contact us for current lead time and stock status.

Shipping options include air freight or sea freight depending on project needs.

⭐

Why Choose the SCV-Series?

• Proven reliability over decades

• Excellent energy efficiency

• Wide displacement range to fit any industrial application

• Works with ammonia, propane, and fluorocarbons

• Trusted Japanese engineering
