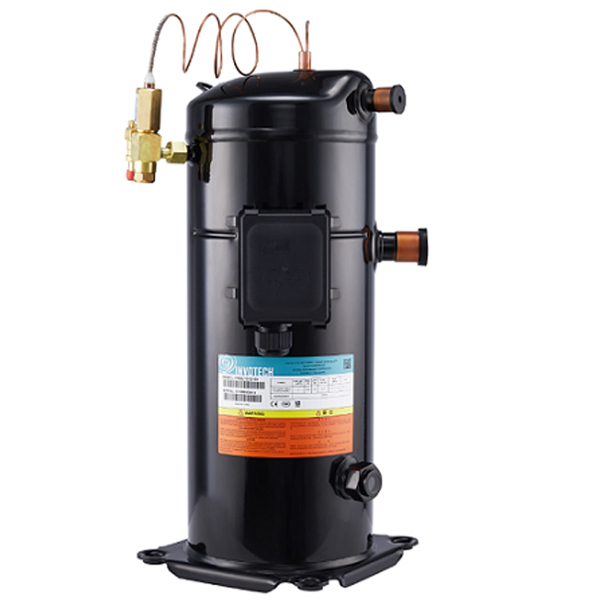

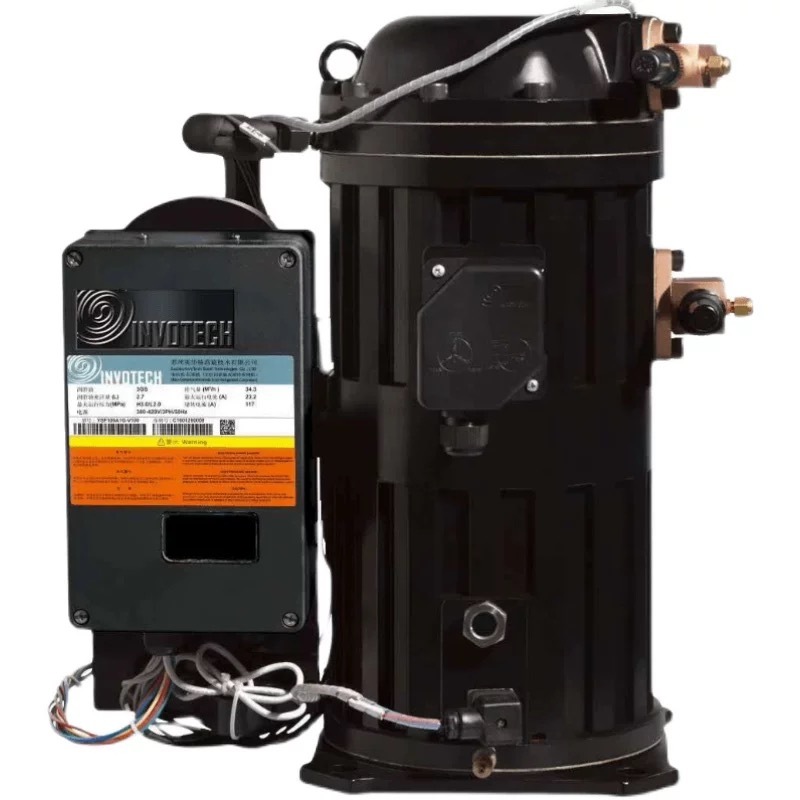

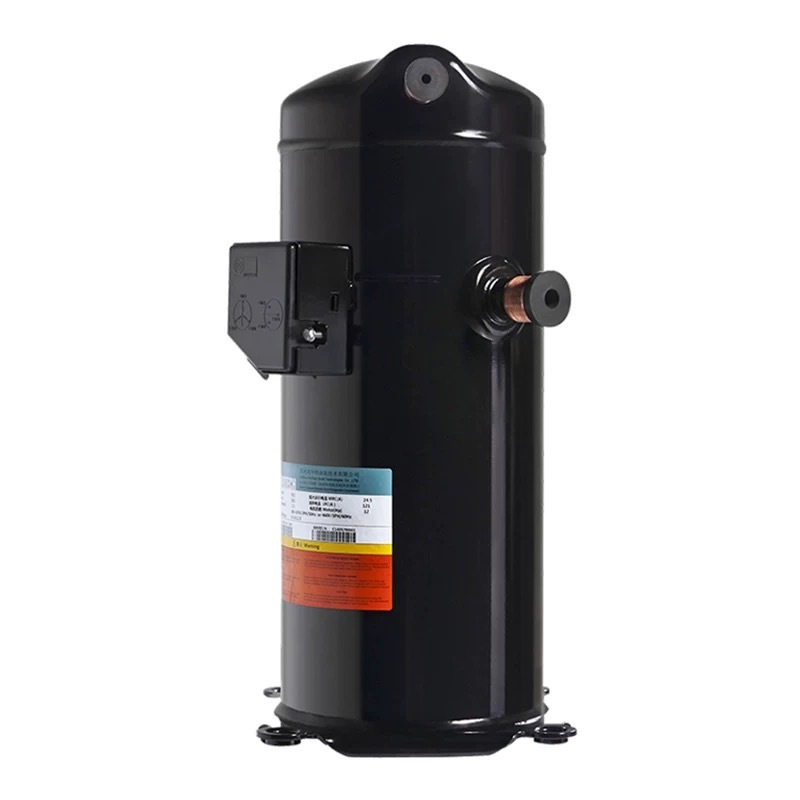

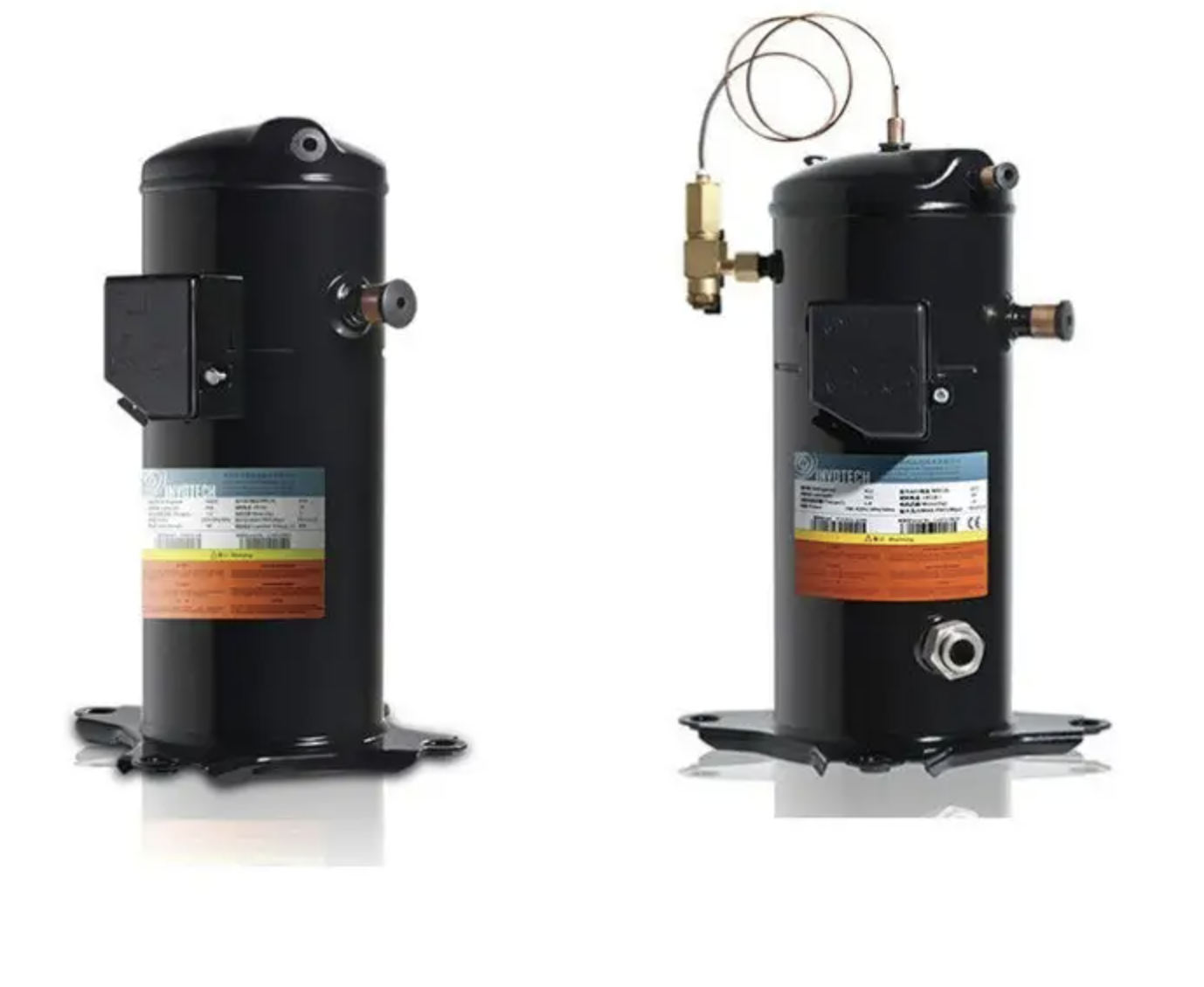

Invotech YF20E1G-Q100 Scroll Compressor – With Liquid Injection

🔧

Technical Specifications

✅ Model: YF20E1G-Q100

✅ Refrigerant: R404A (with liquid injection)

✅ Power Supply: 380V / 50Hz / 3 Phase

✅ Horsepower: 3 HP

✅ Displacement: 8.1 m³/h

✅ Cooling Capacity: 2,330 W

✅ Power Input: 1,880 W

✅ COP (Efficiency): 1.24 (W/W)

✅ Running Current: 4.5 A

✅ Dimensions: P20

✅ Operating Temperature Range: -40°C to -10°C

💡

Key Features

✅ Liquid Injection Technology: Enhances cooling efficiency and reliability, especially in low-temperature environments.

✅ Powerful Cooling Output: 2,330 W capacity for demanding refrigeration applications.

✅ Energy Efficient: COP of 1.24 for operational cost savings and reliable performance.

✅ Smooth and Quiet: Advanced scroll technology ensures quiet and low-vibration operation.

✅ Versatile Applications: Ideal for low-temperature commercial and industrial cooling.

📦

Applications

• Commercial refrigeration systems

• Walk-in freezers and chillers

• Food storage and processing

• Low-temperature cold rooms

🚚

Shipping & Availability

✅ Standard Voltage: 380V / 3 Phase / 50Hz

✅ Global Shipping: Export-grade packaging ensures safe worldwide delivery

✅ Lead Time: Standard 50Hz version typically in stock; for special configurations (like 60Hz), please allow an additional 2–3 weeks.
