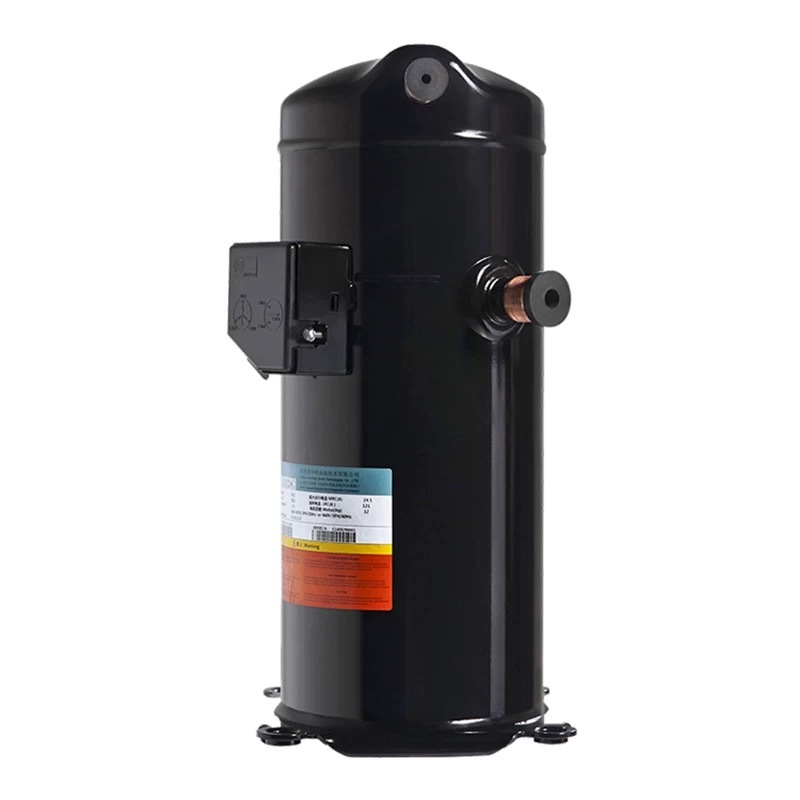

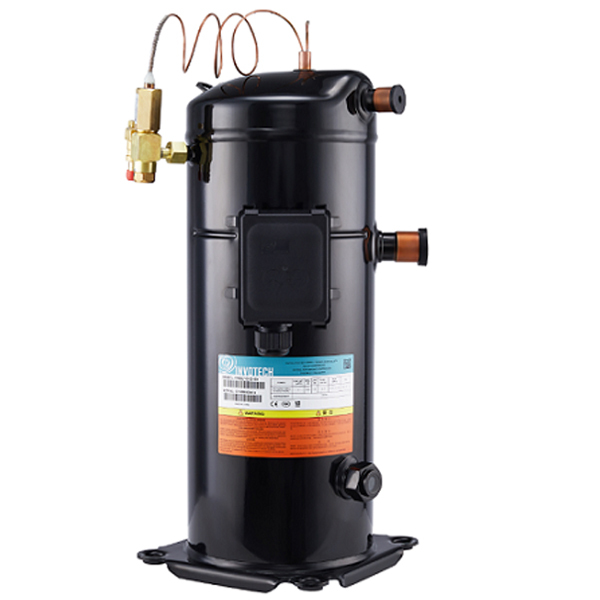

Invotech YF17E1G-Q100 Scroll Compressor – With Liquid Injection

🔧

Technical Specifications

✅ Model: YF17E1G-Q100

✅ Refrigerant: R404A (with liquid injection)

✅ Power Supply: 380V / 50Hz / 3 Phase

✅ Horsepower: 2.5 HP

✅ Displacement: 7.3 m³/h

✅ Cooling Capacity: 1,970 W

✅ Power Input: 1,620 W

✅ COP (Efficiency): 1.22 (W/W)

✅ Running Current: 2.9 A

✅ Dimensions: P20

✅ Operating Temperature Range: -40°C to -10°C

💡

Key Features

✅ Liquid Injection Technology: Enhances cooling efficiency and reliability, especially in low-temperature conditions.

✅ Compact and Versatile: Ideal for installations with limited space while ensuring high performance.

✅ Energy Efficient: COP of 1.22 ensures lower operational costs and reliable performance.

✅ Smooth and Quiet: Scroll design minimizes noise and vibration for quieter operation.

✅ Low-Temperature Ready: Suited for environments down to -40°C, ensuring consistent cooling in even the harshest environments.

📦

Applications

• Commercial refrigeration systems

• Walk-in freezers and chillers

• Food storage and processing facilities

• Low-temperature cold rooms

🚚

Shipping & Availability

✅ Standard Voltage: 380V / 3 Phase / 50Hz

✅ Global Shipping: Export-grade packaging ensures safe worldwide delivery

✅ Lead Time: Standard 50Hz version typically in stock; for special configurations (like 60Hz), please allow an additional 2–3 weeks.
