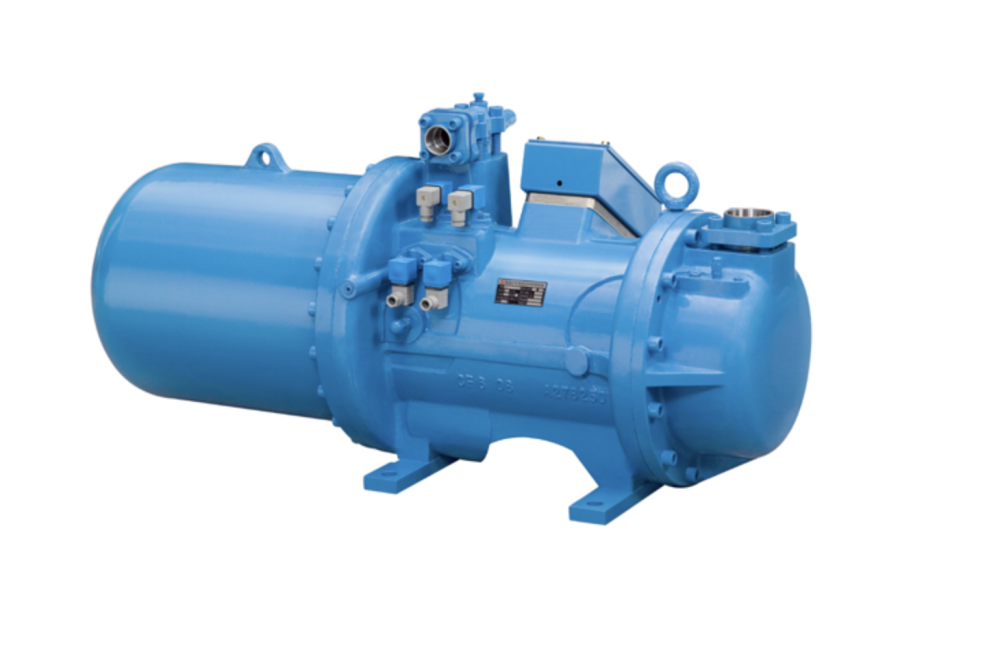

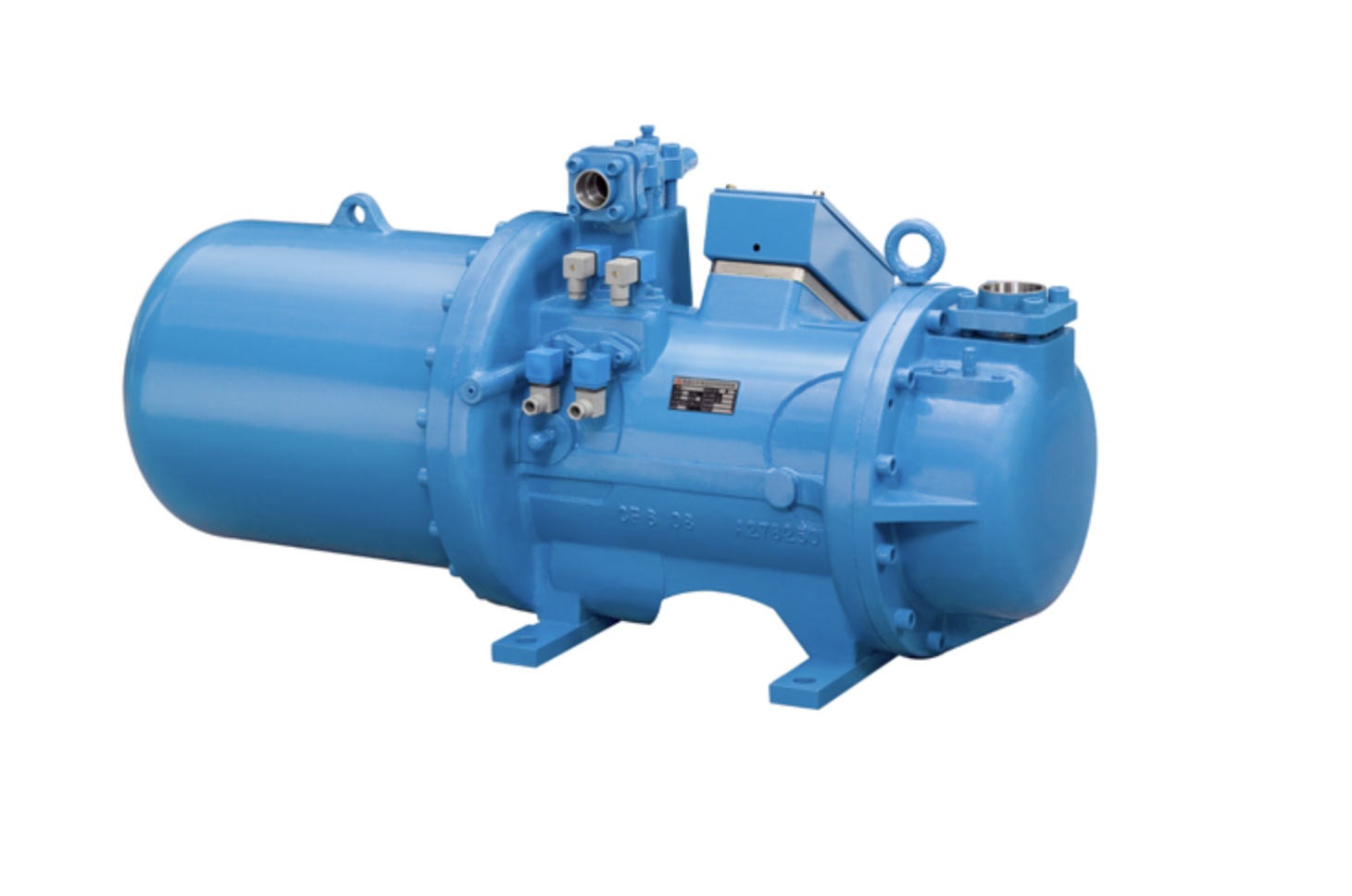

FUSHENG BSR 415 Screw Compressor

⚙️ Technical Specifications:

• Model: BSR 415

• Displacement:

  • 50Hz: 543 m³/h

  • 60Hz: 652 m³/h

• Speed: 2950 / 3550 rpm (50/60 Hz)

• Capacity Control: Step control (25 / 50 / 75 / 100%) or linear control (25–100%)

• Refrigerants Supported: R22, R134a, R407C, R404A, R507

• Motor Type: 3-phase, 2-pole induction motor

• Voltage Range:

  • 50 Hz: 380–415V

  • 60 Hz: 220 / 380 / 400 / 440 / 460 / 480V

• Protection: Phase loss, phase sequence, and motor PTC/PT100 thermistor

• Startup: Y-Δ (star-delta) or direct-on-line

🔩 Mechanical Details:

• Suction Port Size: 5-1/8 inch (130.2 mm)

• Discharge Port Size: 3-1/8 inch (79.4 mm)

• Hydraulic Test Pressure: 42 kg/cm²G

• Oil Heater: 200 W

• Oil Charge: 26 Liters

• Net Weight: 944 kg

✅ Key Benefits:

• Extremely high displacement for large-scale cooling

• Built for heavy-duty industrial use and long service life

• Flexible control and protection systems

• Suitable for complex central systems and extreme applications

🧊 Applications:

• Export-grade cold storage warehouses

• Food and beverage factories (dairy, poultry, seafood)

• Spiral and tunnel blast freezing systems

• Ice manufacturing plants

• Refrigerated distribution hubs and logistics centers

• Pharmaceutical and biomed storage

🚚 Shipping & Availability:

• 50 Hz version: In stock and available for immediate delivery

• 60 Hz version: Custom-manufactured — lead time approx. 3–4 weeks

• Ships from FUSHENG factory in China

• Heavy-duty wooden export crate included
