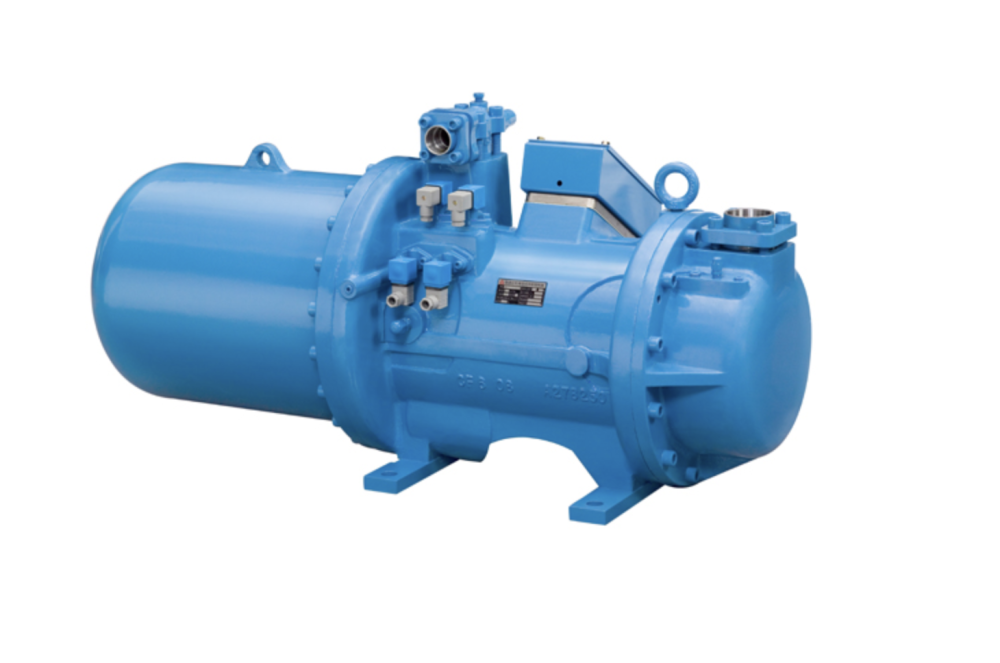

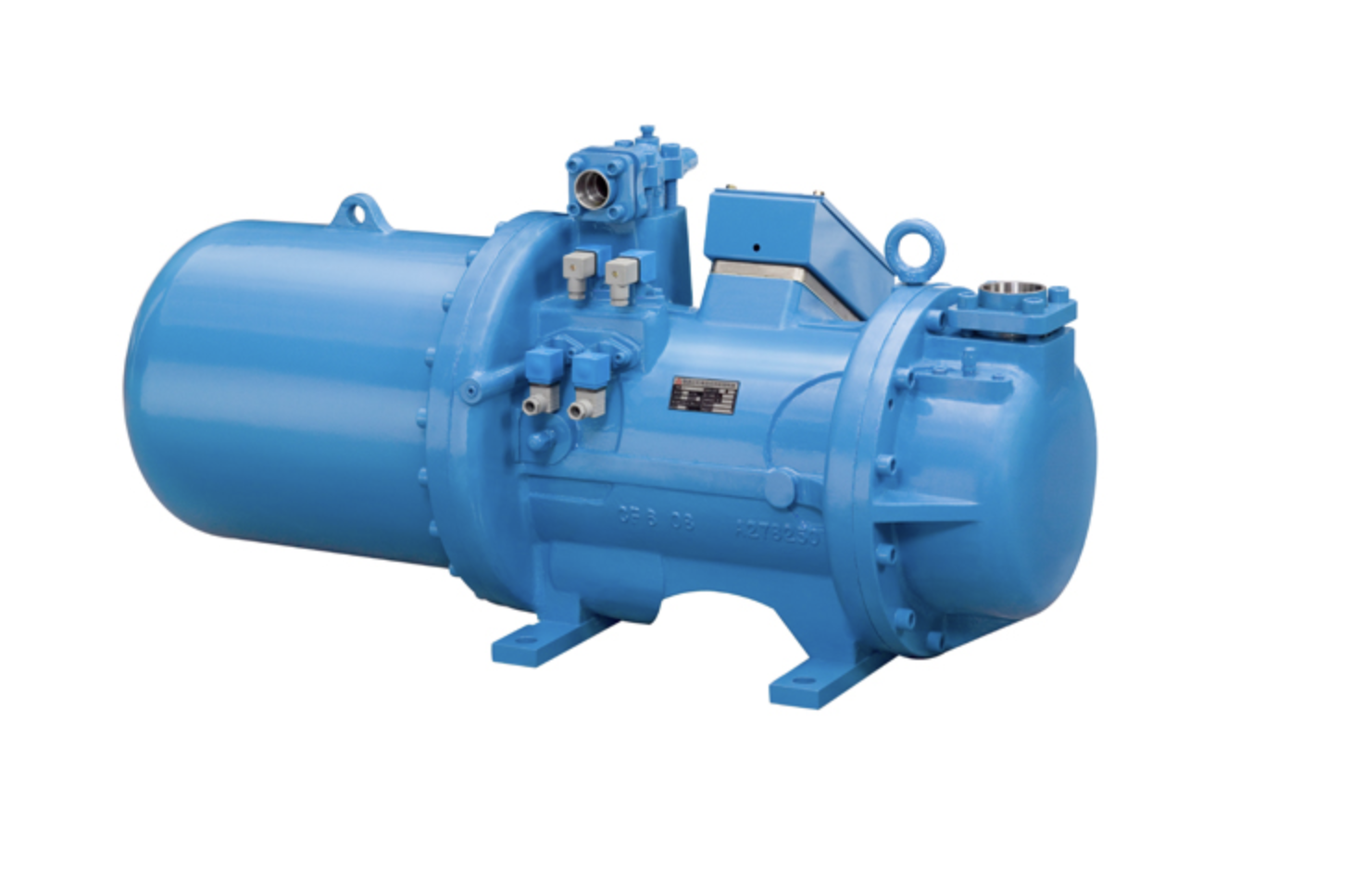

The BSR 413 is a high-efficiency, heavy-duty screw compressor from FUSHENG, built to deliver strong and consistent performance for industrial refrigeration systems. Its large displacement and durable design make it a trusted choice for commercial freezing, cold warehouses, and food processing plants.
Model: BSR 413
Displacement:
50Hz: 492 m³/h
60Hz: 590 m³/h
Speed: 2950 / 3550 rpm (50/60 Hz)
Capacity Control: Step control (25 / 50 / 75 / 100%) or linear control (25–100%)
Refrigerants Supported: R22, R134a, R407C, R404A, R507
Motor Type: 3-phase, 2-pole induction motor
Voltage Range:
50 Hz: 380–415V
60 Hz: 220 / 380 / 400 / 440 / 460 / 480V
Protection: Phase loss, phase sequence, and motor PTC/PT100 thermistor
Startup: Y-Δ (star-delta) or direct-on-line
Suction Port Size: 5-1/8 inch (130.2 mm)
Discharge Port Size: 3-1/8 inch (79.4 mm)
Hydraulic Test Pressure: 42 kg/cm²G
Oil Heater: 200 W
Oil Charge: 23 Liters
Net Weight: 890 kg
High cooling output for large refrigeration plants
Strong, industrial-grade design for continuous operation
Multi-refrigerant support with advanced protection
Perfect for centralized or multi-room systems
Large cold storage warehouses and logistics hubs
Blast freezing tunnels and spiral freezers
Food production and seafood processing plants
Dairy and beverage industrial facilities
Centralized refrigeration for distribution networks
Industrial flake ice and block ice systems
50 Hz version: Standard model — available for fast shipping
60 Hz version: Custom production — estimated lead time 3–4 weeks
Ships from FUSHENG factory in China
Export-safe packaging included
For technical specs, pricing, or support — contact us
