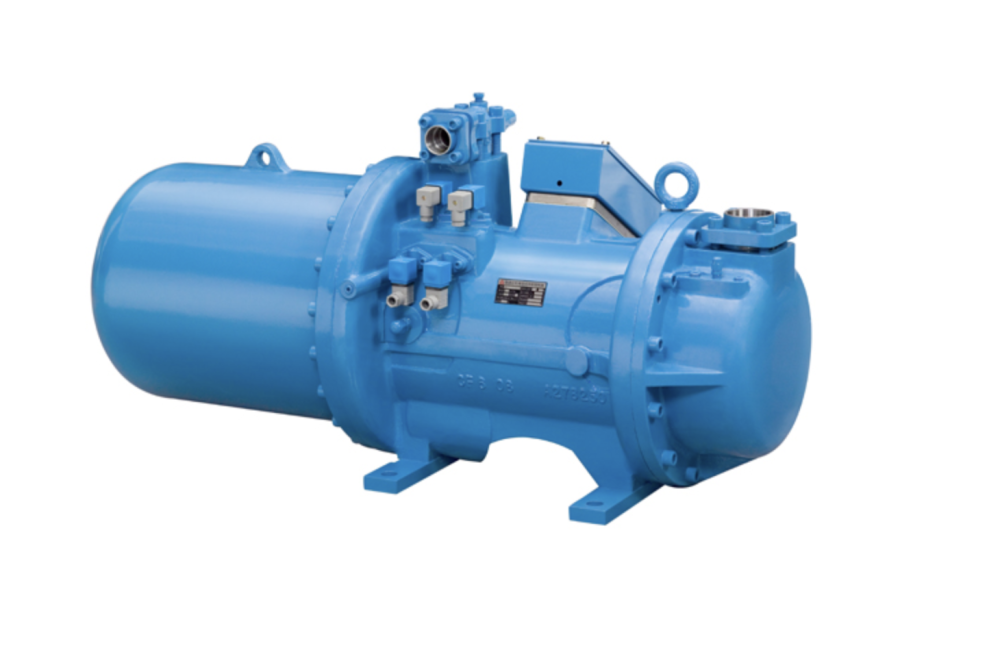

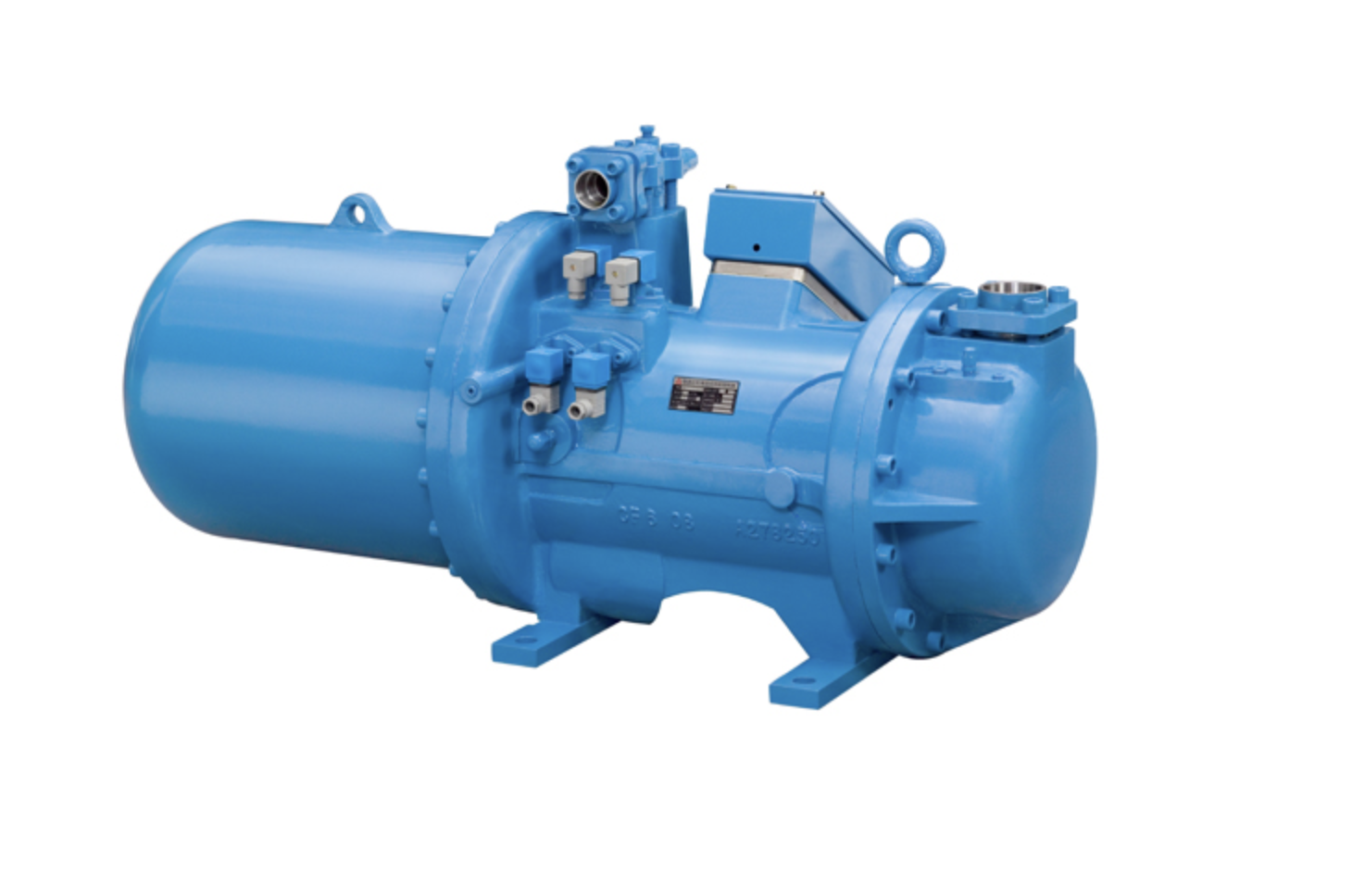

The BSR 324 is a heavy-duty screw compressor from FUSHENG, engineered to deliver exceptional performance in high-capacity refrigeration systems. With robust displacement and dependable operation, it’s ideal for food production plants, large frozen warehouses, and centralized industrial cooling.
Model: BSR 324
Displacement:
50Hz: 432 m³/h
60Hz: 518 m³/h
Speed: 2950 / 3550 rpm (50/60 Hz)
Capacity Control: Step control (25 / 50 / 75 / 100%) or linear control (25–100%)
Refrigerants Supported: R22, R134a, R407C, R404A, R507
Motor Type: 3-phase, 2-pole induction motor
Voltage Range:
50 Hz: 380–415V
60 Hz: 220 / 380 / 400 / 440 / 460 / 480V
Protection: Phase loss, phase sequence, and motor PTC/PT100 thermistor
Startup: Y-Δ (star-delta) or direct-on-line
Suction Port Size: 4-1/8 inch (104.8 mm)
Discharge Port Size: 2-5/8 inch (66.7 mm)
Hydraulic Test Pressure: 42 kg/cm²G
Oil Heater: 150 W
Oil Charge: 21 Liters
Net Weight: 845 kg
Large displacement for high refrigeration loads
Strong build for 24/7 industrial operation
Compatible with major refrigerants
Excellent for custom system integration
Meat and poultry processing facilities
Blast freezers and spiral freezers
Ice production plants
Centralized systems for food storage & distribution
Refrigerated logistics centers and warehouses
Large dairy, seafood, and beverage cooling operations
50 Hz version: Standard availability, ready to ship
60 Hz version: Custom-manufactured — production time: 3–4 weeks
Ships from FUSHENG factory in China
Export packaging included for safe international transport
We’re happy to provide a quotation, datasheet, or technical support:
