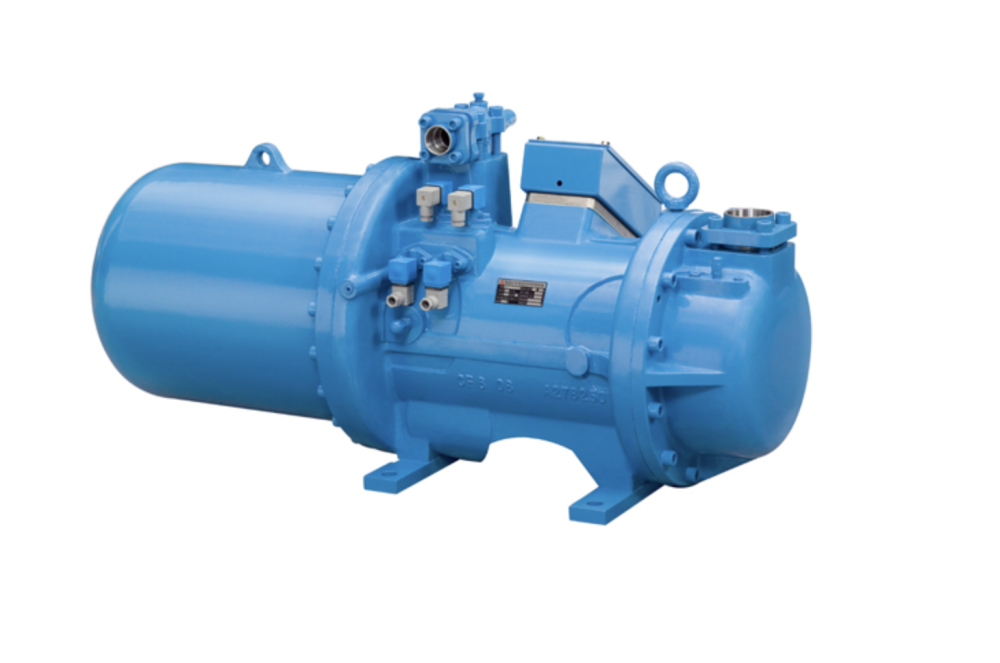

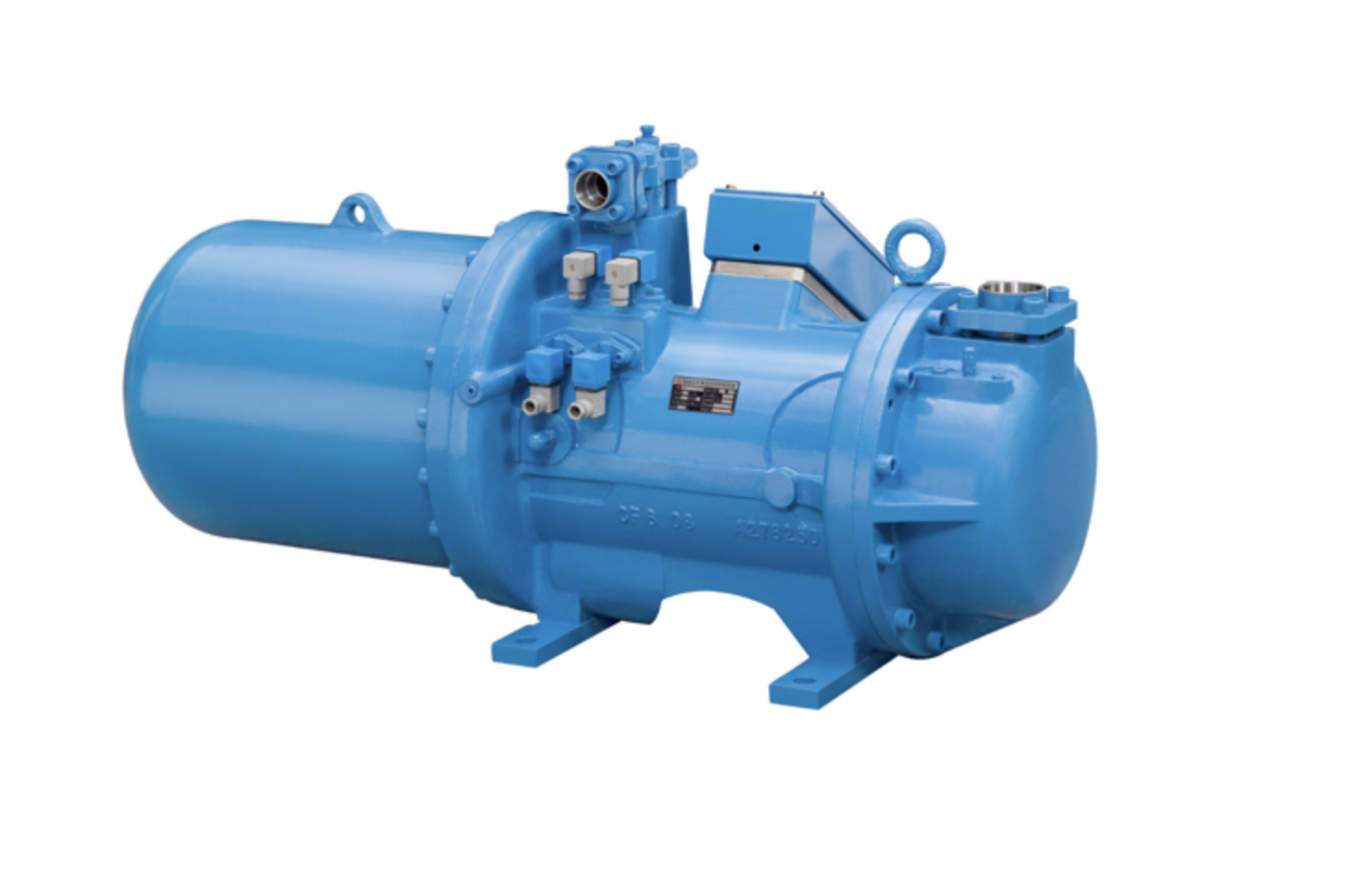

FUSHENG BSR 323 Screw Compressor

⚙️ Technical Specifications:

• Model: BSR 323

• Displacement:

  • 50Hz: 406 m³/h

  • 60Hz: 487 m³/h

• Speed: 2950 / 3550 rpm (50/60 Hz)

• Capacity Control: Step control (25 / 50 / 75 / 100%) or linear control (25–100%)

• Refrigerants Supported: R22, R134a, R407C, R404A, R507

• Motor Type: 3-phase, 2-pole induction motor

• Voltage Range:

  • 50 Hz: 380–415V

  • 60 Hz: 220 / 380 / 400 / 440 / 460 / 480V

• Protection: Phase loss, phase sequence, and motor PTC/PT100 thermistor

• Startup: Y-Δ (star-delta) or direct-on-line

🔩 Mechanical Details:

• Suction Port Size: 4-1/8 inch (104.8 mm)

• Discharge Port Size: 2-5/8 inch (66.7 mm)

• Hydraulic Test Pressure: 42 kg/cm²G

• Oil Heater: 150 W

• Oil Charge: 21 Liters

• Net Weight: 815 kg

✅ Key Benefits:

• High cooling capacity for industrial applications

• Built for durability and long-term performance

• Supports multiple refrigerants

• Flexible control with motor protection and Y-Δ starting

🧊 Applications:

• Large-scale frozen and chilled storage facilities

• Blast freezers and continuous freezing tunnels

• Beverage, dairy, and meat production factories

• Central refrigeration systems for distribution centers

• Industrial ice-making systems and food logistics

🚚 Shipping & Availability:

• 50 Hz version: In stock, ready for immediate shipment

• 60 Hz version: Custom production — 3 to 4 weeks lead time

• Ships from FUSHENG factory in China

• Export-grade packaging for safe global delivery
