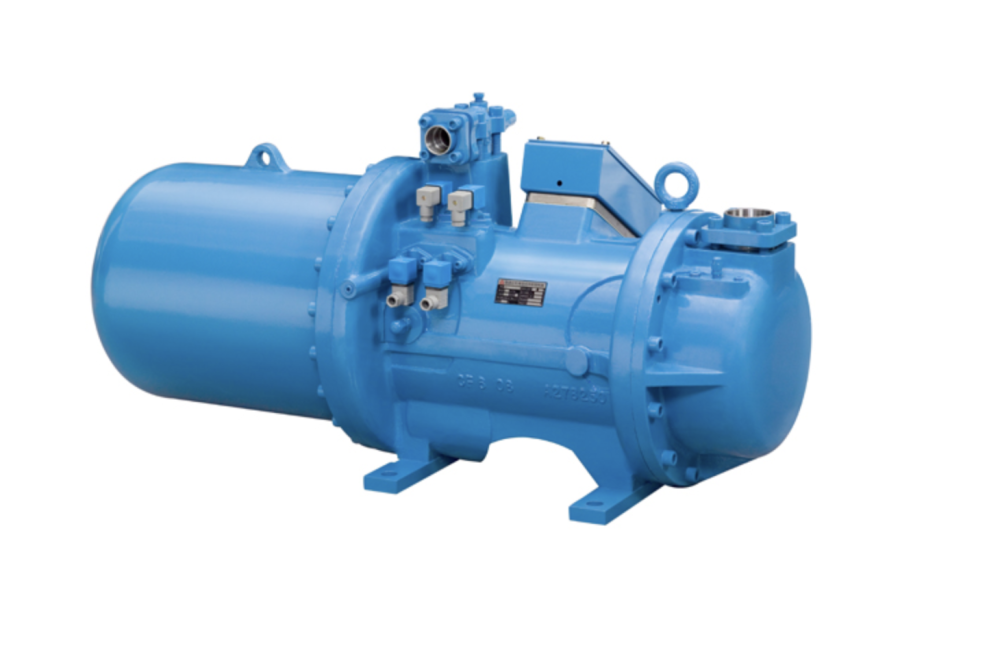

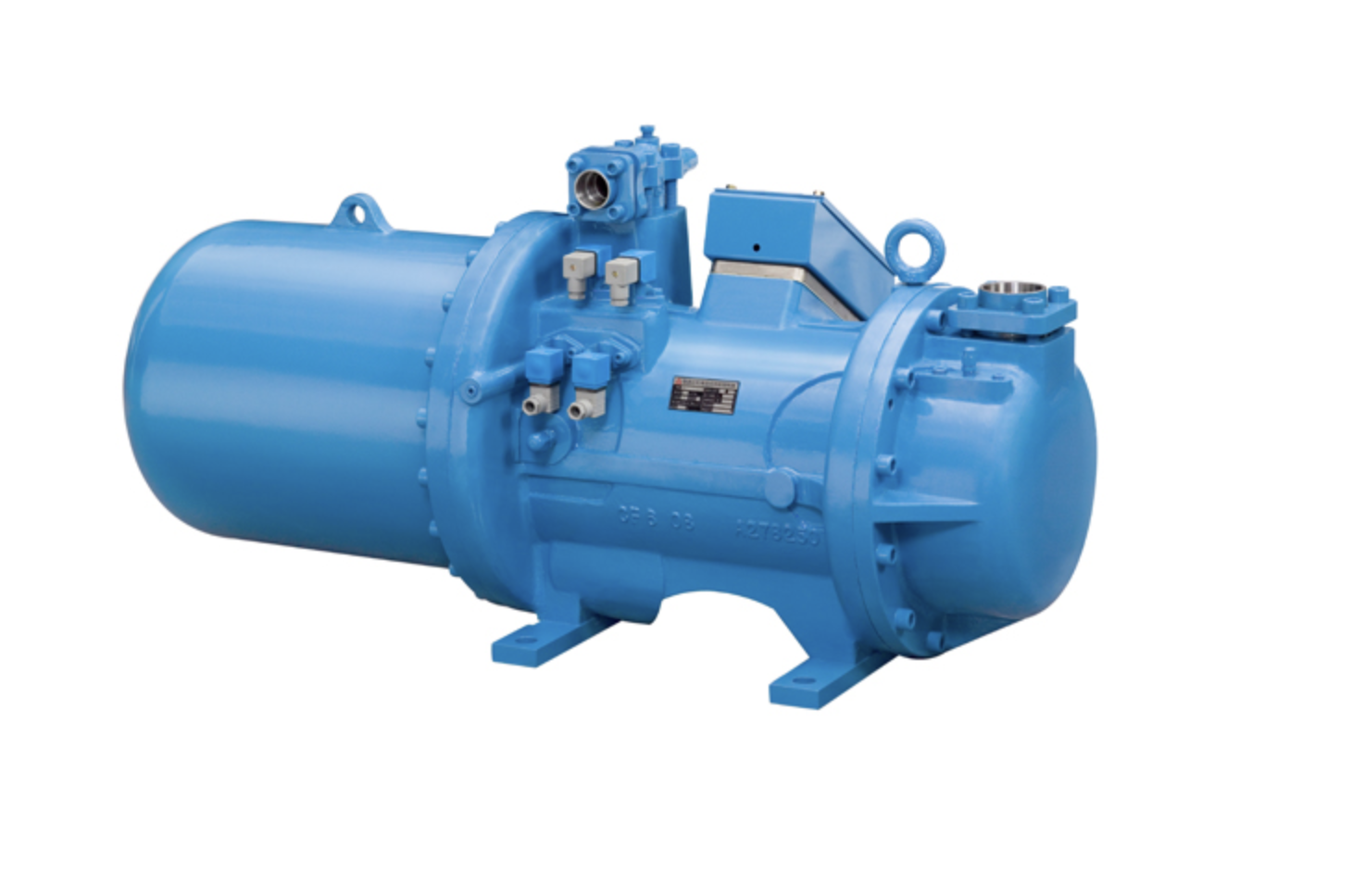

The BSR 316 is one of FUSHENG’s larger screw compressors, built for high-capacity refrigeration applications. With powerful displacement and reinforced design, it’s a top choice for large industrial cold rooms, food factories, and low-temperature freezing systems.
Model: BSR 316
Displacement:
50Hz: 314 m³/h
60Hz: 377 m³/h
Speed: 2950 / 3550 rpm (50/60 Hz)
Capacity Control: Step control (25 / 50 / 75 / 100%) or linear control (25–100%)
Refrigerants Supported: R22, R134a, R407C, R404A, R507
Motor Type: 3-phase, 2-pole induction motor
Voltage Range:
50 Hz: 380–415V
60 Hz: 220 / 380 / 400 / 440 / 460 / 480V
Protection: Phase loss, phase sequence, and motor PTC/PT100 thermistor
Startup: Y-Δ (star-delta) or direct-on-line
Suction Port Size: 3-1/8 inch (79.4 mm)
Discharge Port Size: 2-1/8 inch (53.9 mm)
Hydraulic Test Pressure: 42 kg/cm²G
Oil Heater: 150 W
Oil Charge: 17 Liters
Net Weight: 600 kg
High displacement for maximum cooling output
Engineered for harsh industrial conditions and 24/7 operation
Suitable for large frozen storage, process cooling, and centralized systems
Reliable startup and protection systems built-in
Industrial cold rooms and frozen food warehouses
Seafood and meat processing plants
Blast freezers and spiral freezers
Dairy product storage and processing
Ice factories and flake ice systems
Centralized refrigeration plants for logistics hubs
Ships from FUSHENG factory in China
Typical delivery: 7–10 business days
Export packaging included for global transport
Reach out for pricing, stock availability, or tech consultation:
