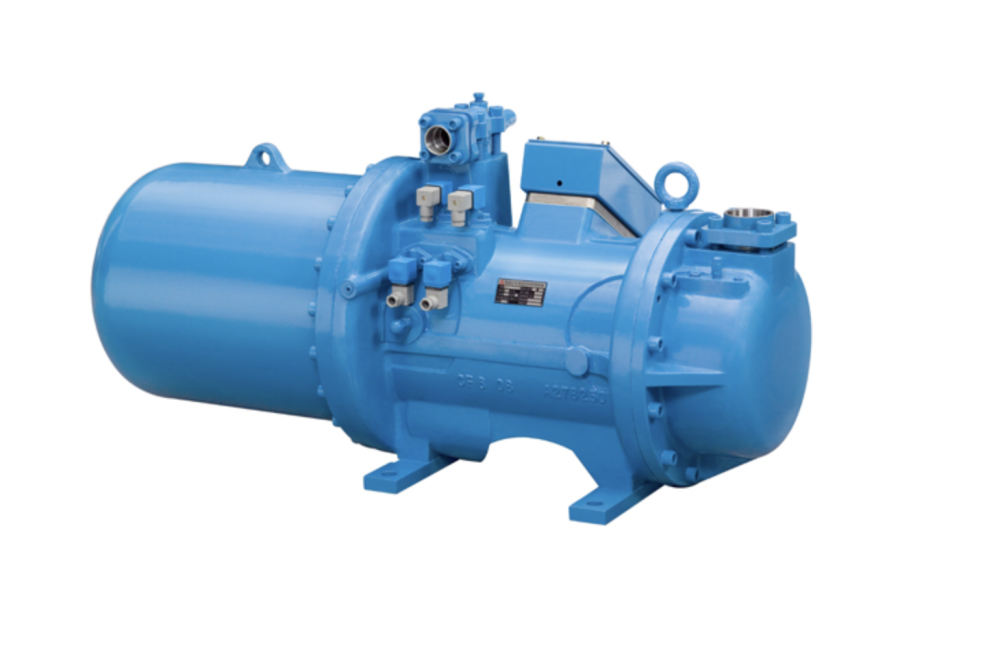

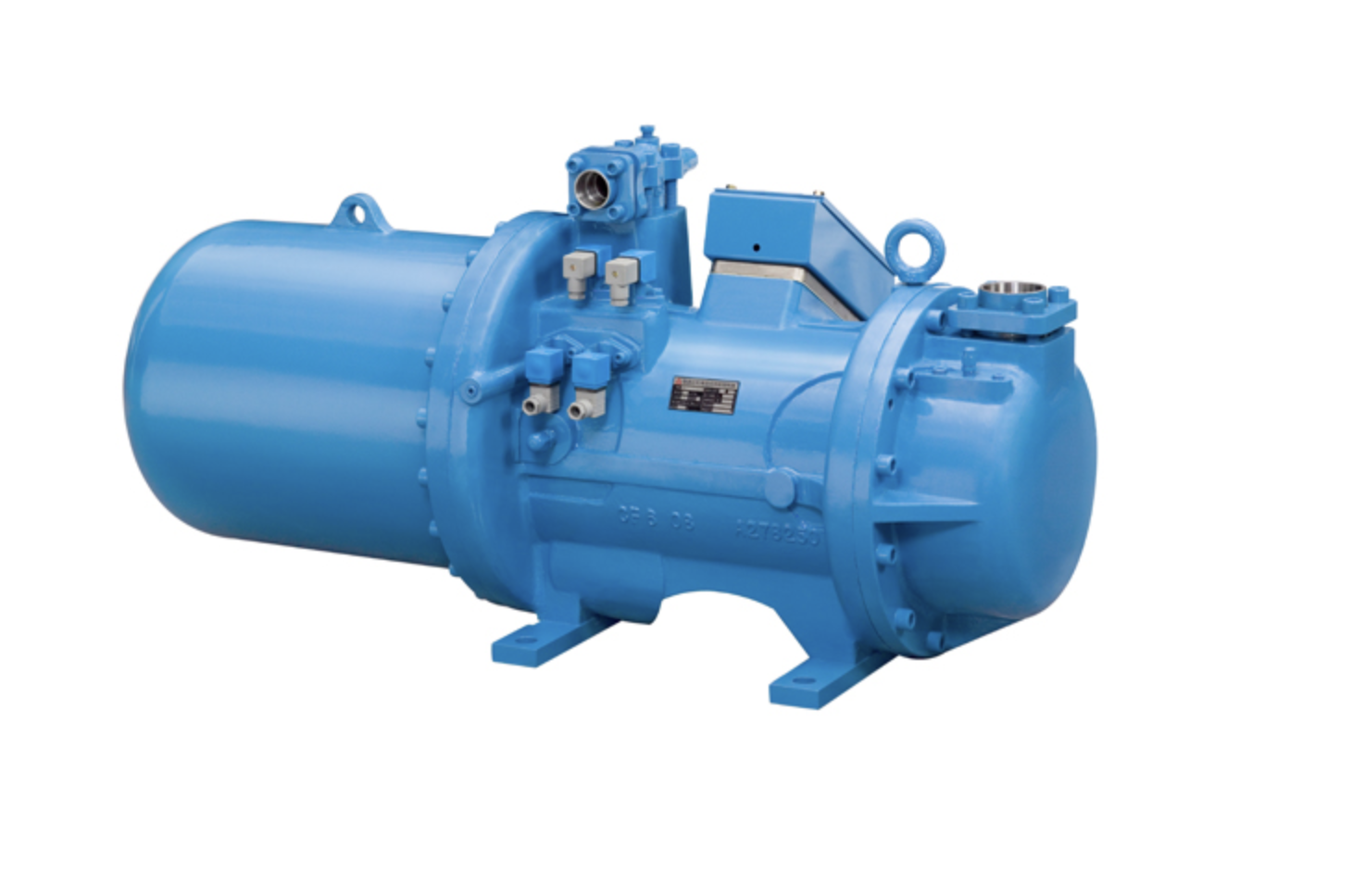

The BSR 314 from FUSHENG is a high-performance screw compressor designed for large-scale refrigeration operations. With impressive displacement and oil capacity, it’s ideal for demanding industrial applications like logistics cold stores, food processing, and centralized refrigeration systems.
Model: BSR 314
Displacement:
50Hz: 271 m³/h
60Hz: 325 m³/h
Speed: 2950 / 3550 rpm (50/60 Hz)
Capacity Control: Step control (25 / 50 / 75 / 100%) or linear control (25–100%)
Refrigerants Supported: R22, R134a, R407C, R404A, R507
Motor Type: 3-phase, 2-pole induction motor
Voltage Range:
50 Hz: 380–415V
60 Hz: 220 / 380 / 400 / 440 / 460 / 480V
Protection: Phase loss, phase sequence, and motor PTC/PT100 thermistor
Startup: Y-Δ (star-delta) or direct-on-line
Suction Port Size: 3-1/8 inch (79.4 mm)
Discharge Port Size: 2-1/8 inch (53.9 mm)
Hydraulic Test Pressure: 42 kg/cm²G
Oil Heater: 150 W
Oil Charge: 14 Liters
Net Weight: 572 kg
Excellent cooling output for high-load systems
Stable, efficient performance in continuous-duty operations
Multi-refrigerant support for various applications
Ideal for frozen storage, production facilities, and distribution hubs
Available for export from China
Estimated delivery: 7–10 business days
Packaged securely in wooden crate for international shipping
