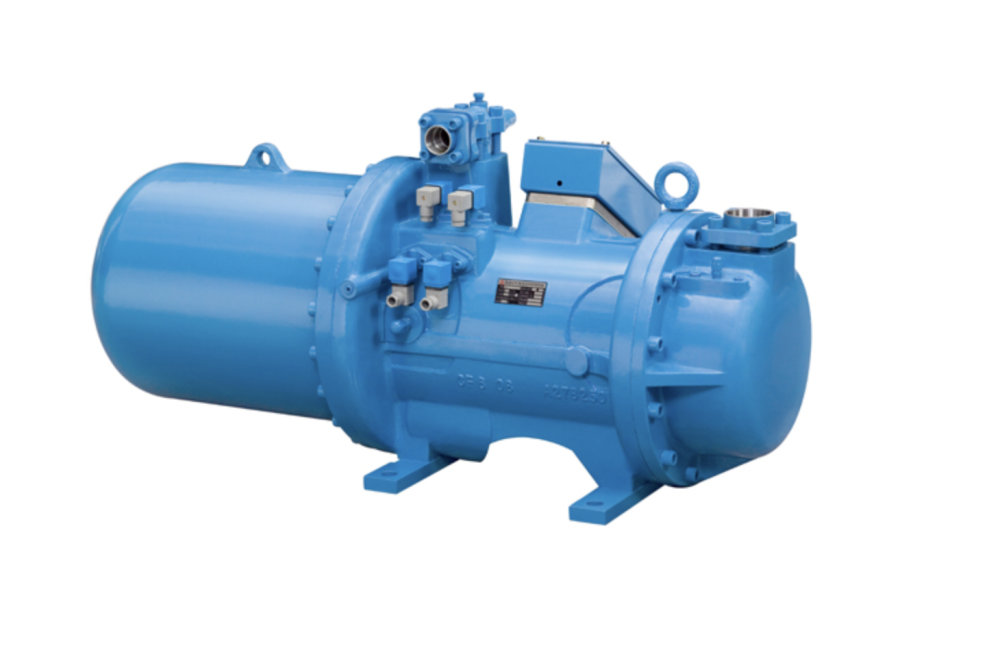

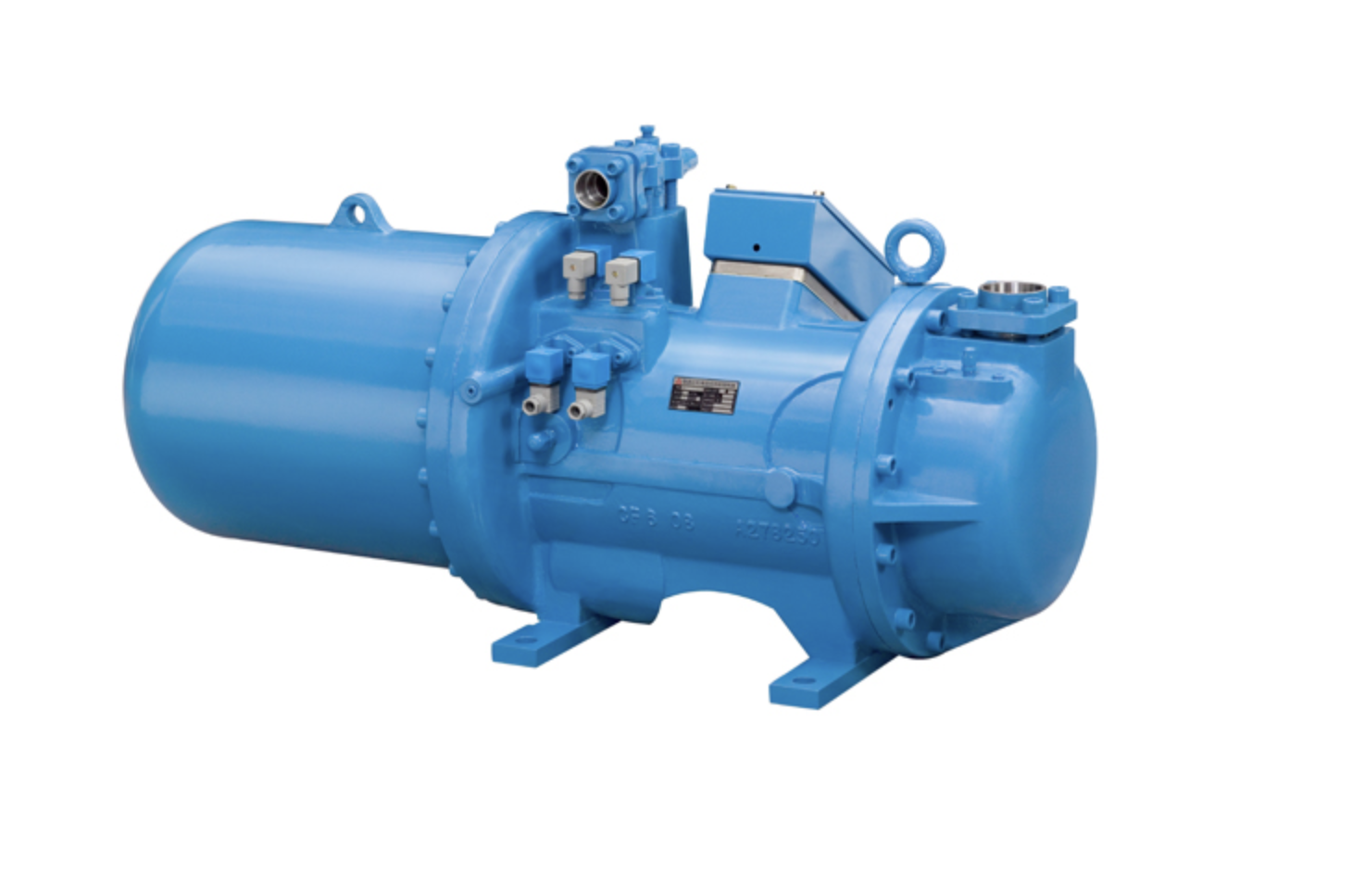

FUSHENG BSR 216 Screw Compressor

⚙️ Technical Specifications:

• Model: BSR 216

• Displacement:

  • 50Hz: 172 m³/h

  • 60Hz: 206 m³/h

• Speed: 2950 / 3550 rpm (50/60 Hz)

• Capacity Control: Step control (25 / 50 / 75 / 100%) or linear control (25–100%)

• Refrigerants Supported: R22, R134a, R407C, R404A, R507

• Motor Type: 3-phase, 2-pole induction motor

• Voltage Range:

  • 50 Hz: 380–415V

  • 60 Hz: 220 / 380 / 400 / 440 / 460 / 480V

• Protection: Phase loss, phase sequence, and motor PTC/PT100 thermistor

• Startup: Y-Δ (star-delta) or direct-on-line

🔩 Mechanical Details:

• Suction Port Size: 2-5/8 inch (66.7 mm)

• Discharge Port Size: 1-5/8 inch (41.3 mm)

• Hydraulic Test Pressure: 42 kg/cm²G

• Oil Heater: 150 W

• Oil Charge: 13 Liters

• Net Weight: 486 kg

✅ Key Benefits:

• Excellent balance of size and capacity

• Efficient operation with advanced motor protection

• Compatible with a wide range of refrigerants

• Built for durability in continuous-use environments

🚚 Shipping & Availability:

• Ships internationally from China

• Delivery time: 7–10 business days

• Secure export-grade packaging included
