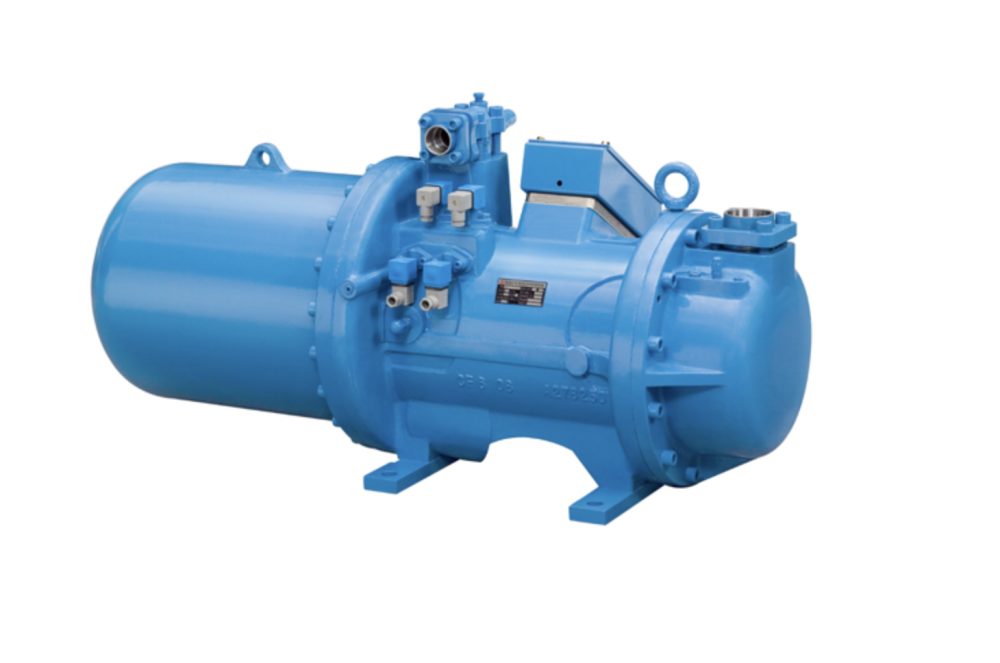

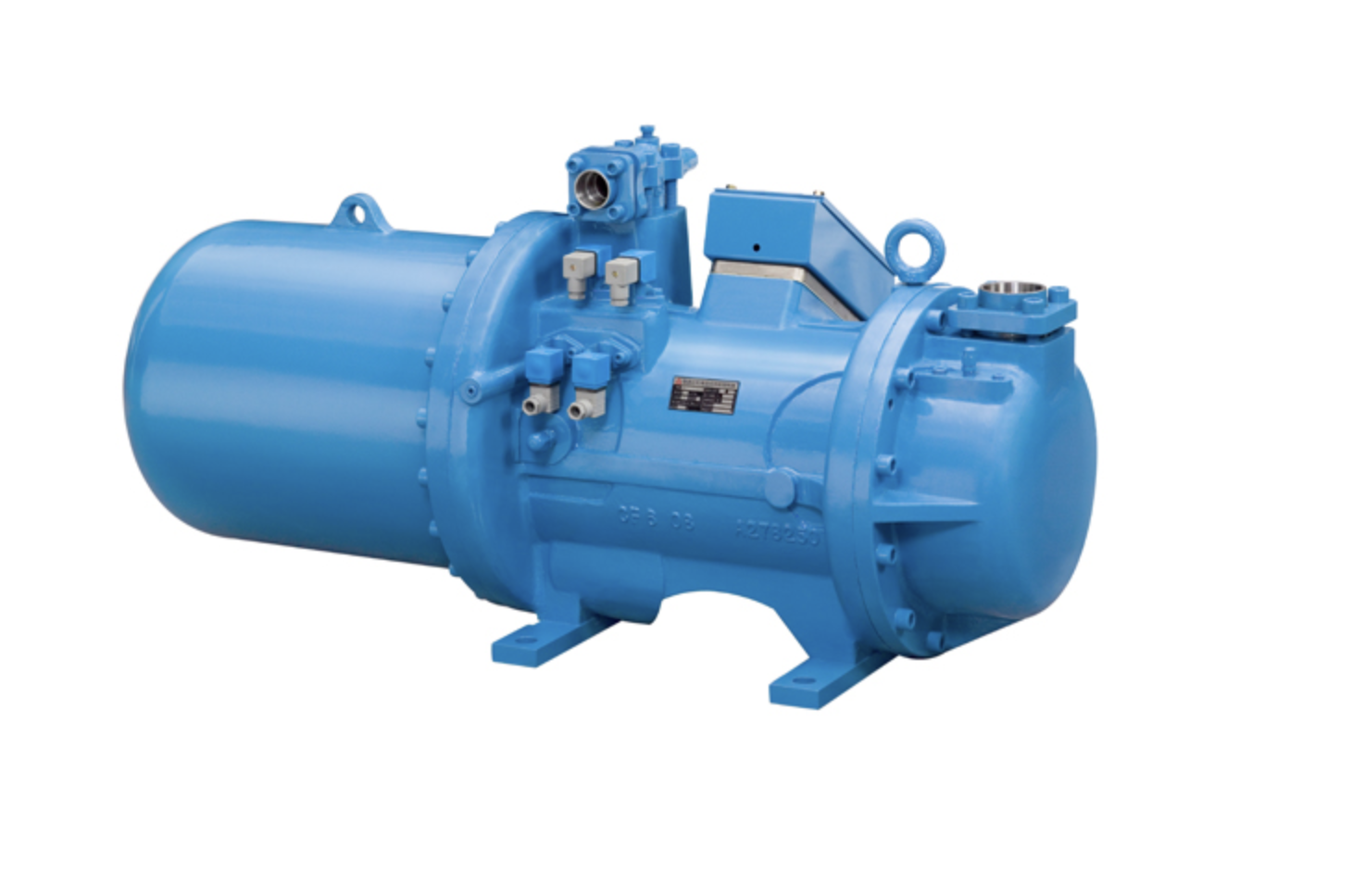

The BSR 213S is a compact, high-efficiency screw compressor ideal for industrial and commercial refrigeration systems. Designed for performance and reliability, it supports multiple refrigerants and is well-suited for a wide range of cooling applications.
Model: BSR 213S
Displacement:
50Hz: 119 m³/h
60Hz: 143 m³/h
Speed: 2950 / 3550 rpm (50/60 Hz)
Capacity Control: Step control (25 / 50 / 75 / 100%) or linear control (25–100%)
Refrigerants Supported: R22, R134a, R407C, R404A, R507
Motor Type: 3-phase, 2-pole induction motor
Voltage Range:
50 Hz: 380–415V
60 Hz: 220 / 380 / 400 / 440 / 460 / 480V
Protection: Phase loss, phase sequence, and motor PTC/PT100 thermistor
Startup: Y-Δ (star-delta) or direct-on-line
Suction Port Size: 2-5/8 inch (66.7 mm)
Discharge Port Size: 1-5/8 inch (41.3 mm)
Hydraulic Test Pressure: 42 kg/cm²G
Oil Heater: 150 W
Oil Charge: 11 Liters
Net Weight: 476 kg
Compact size with strong output
Flexible capacity control for optimized efficiency
Compatible with major refrigerants
Reliable operation with robust protection features
Ideal for cold storage, food processing, and industrial systems
Available for export from China
Standard lead time: 7–10 business days
Securely packaged and crated for international shipping
For quotes, stock availability, or technical questions — contact our team
