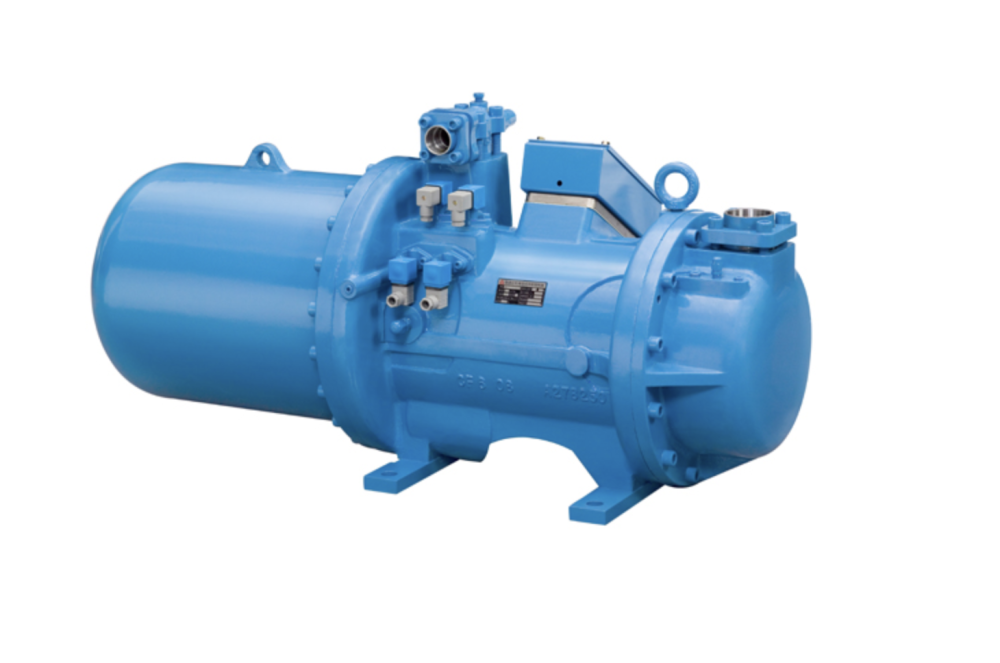

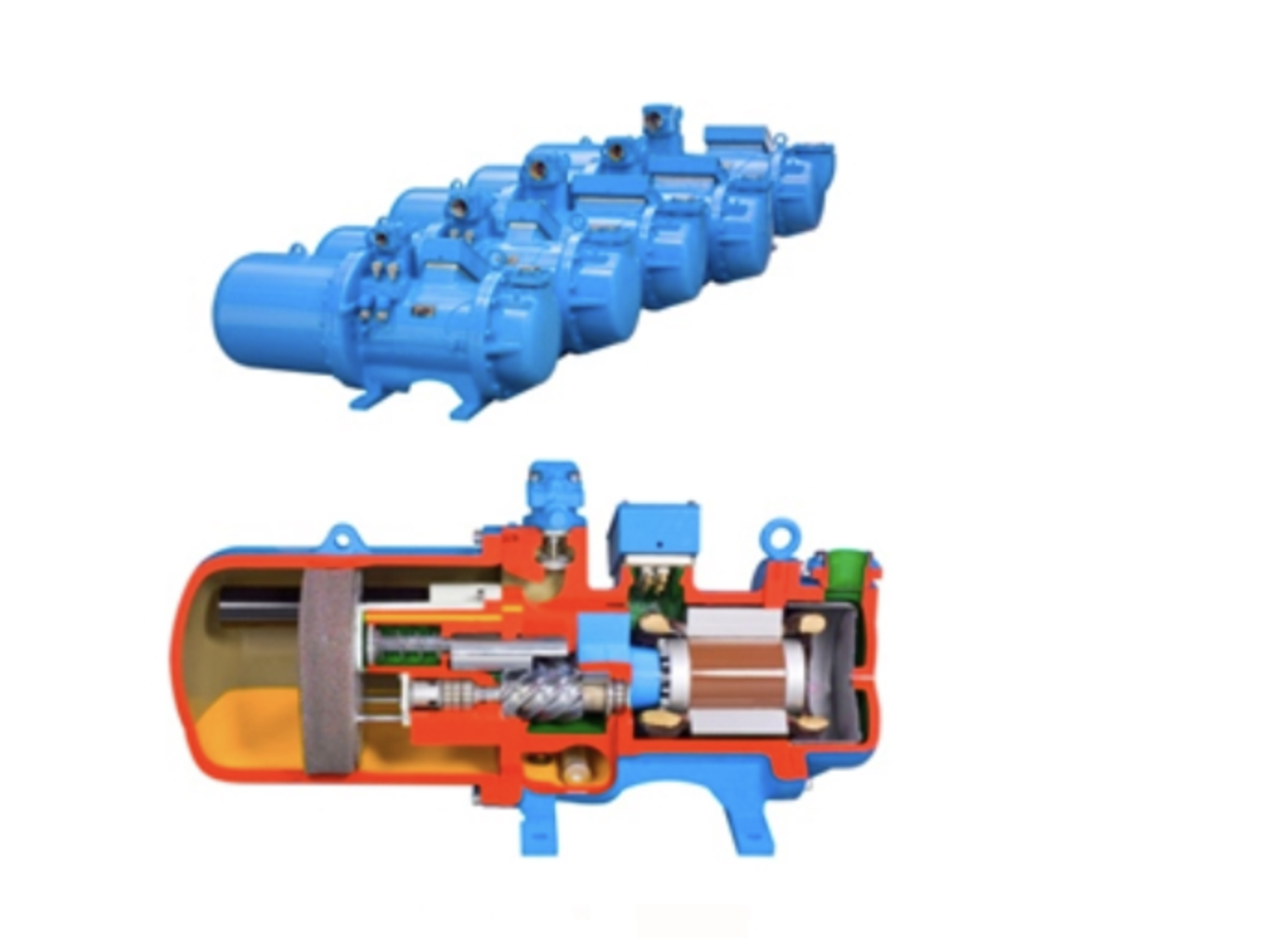

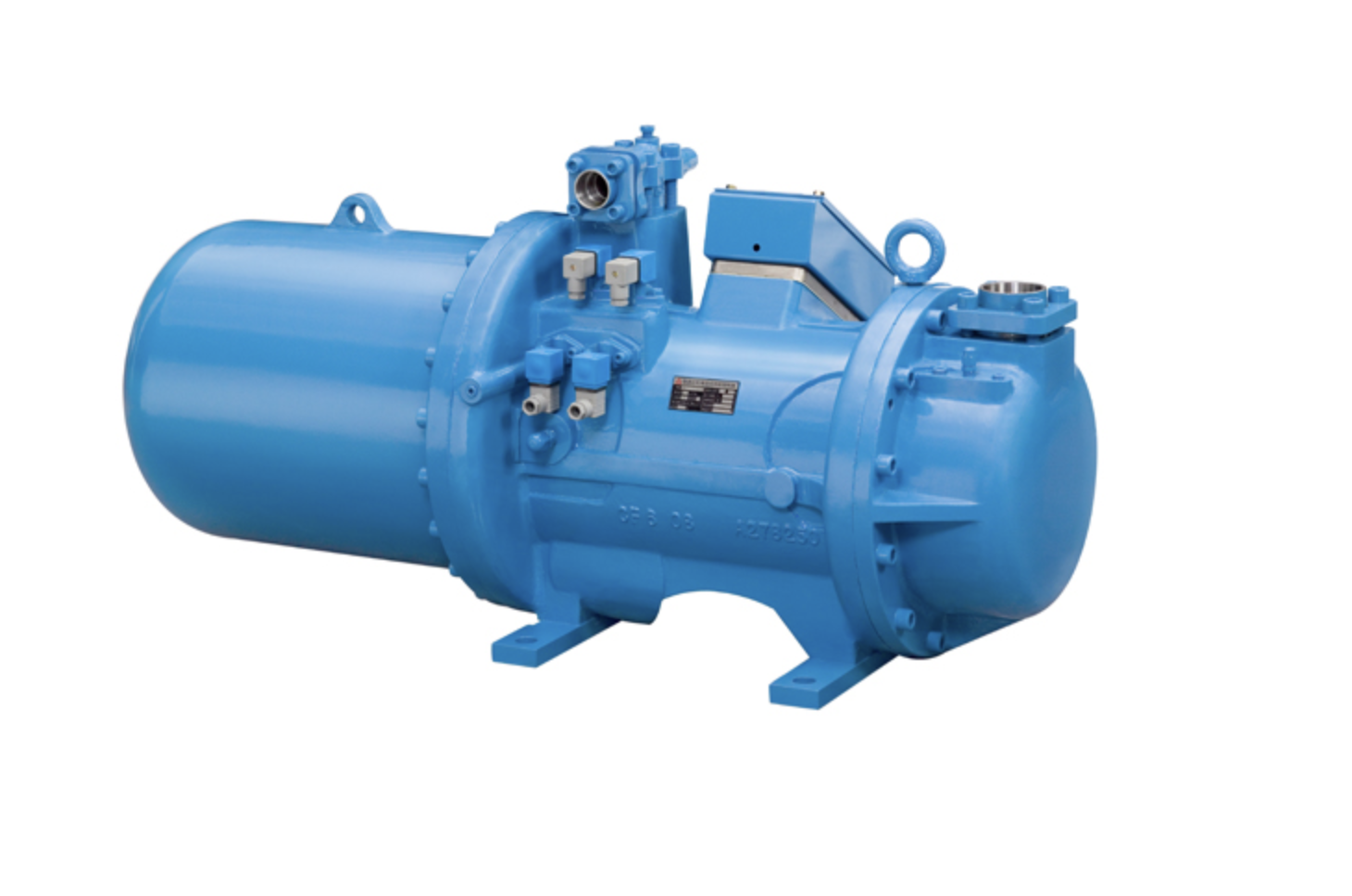

FUSHENG BSR 213 Screw Compressor

⚙️ Technical Specifications:

• Model: BSR 213

• Displacement:

  • 50Hz: 135 m³/h

  • 60Hz: 162 m³/h

• Speed: 2950 / 3550 rpm (50/60 Hz)

• Capacity Control: Step control (25 / 50 / 75 / 100%) or linear control (25–100%)

• Refrigerants Supported: R22, R134a, R407C, R404A, R507

• Motor Type: 3-phase, 2-pole induction motor

• Voltage Range:

  • 50 Hz: 380–415V

  • 60 Hz: 220 / 380 / 400 / 440 / 460 / 480V

• Protection: Phase loss, phase sequence, and motor PTC/PT100 thermistor

• Startup: Y-Δ (star-delta) or direct-on-line

🔩 Mechanical Details:

• Suction Port Size: 2-5/8 inch (66.7 mm)

• Discharge Port Size: 1-5/8 inch (41.3 mm)

• Hydraulic Test Pressure: 42 kg/cm²G

• Oil Heater: 150 W

• Oil Charge: 11 Liters

• Net Weight: 481 kg

✅ Key Benefits:

• Medium-capacity screw compressor with excellent efficiency

• Compatible with multiple refrigerants for flexible use

• Advanced motor protection and startup options

• Compact footprint for industrial refrigeration setups

🚚 Shipping & Availability:

• Ships from our warehouse in China

• Estimated delivery: 7–10 working days

• Export-ready wooden packaging for safety

💬 Need Help?

Get a custom quote or ask a question
