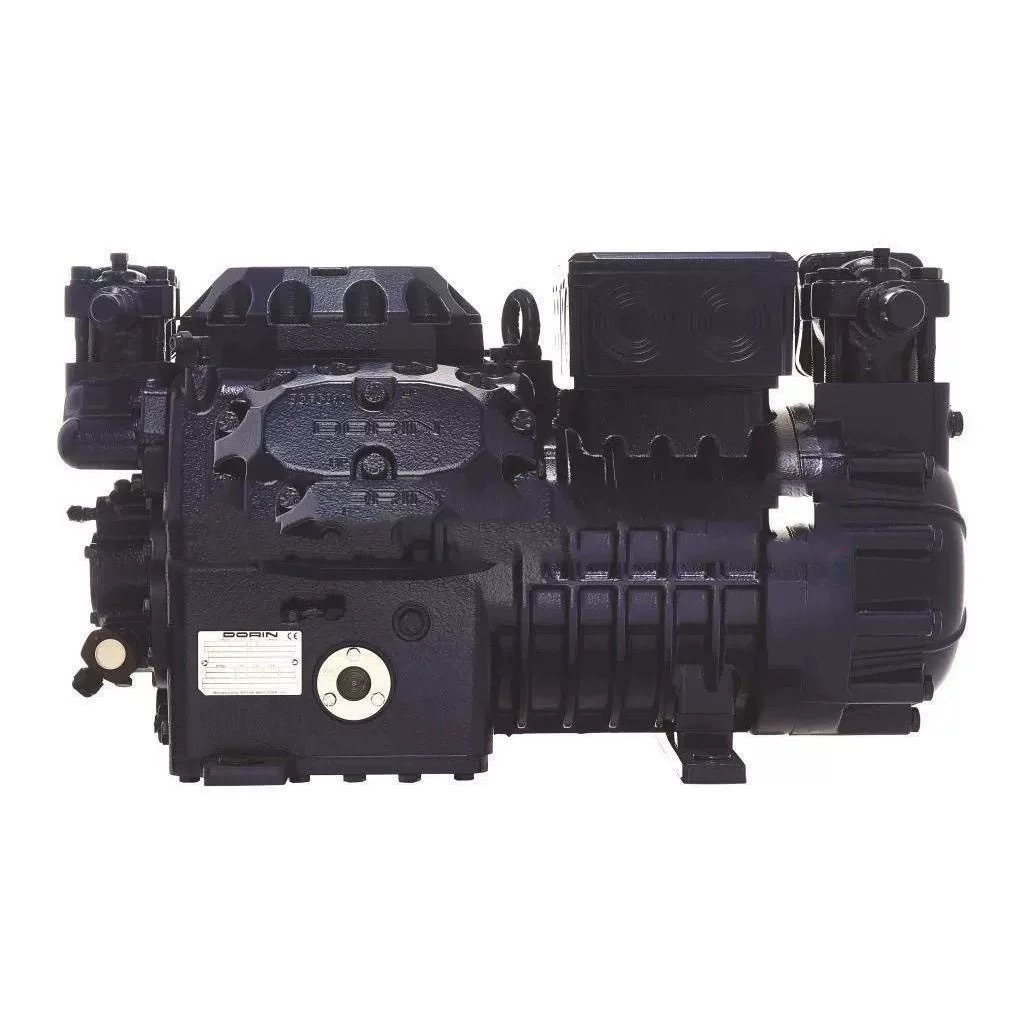

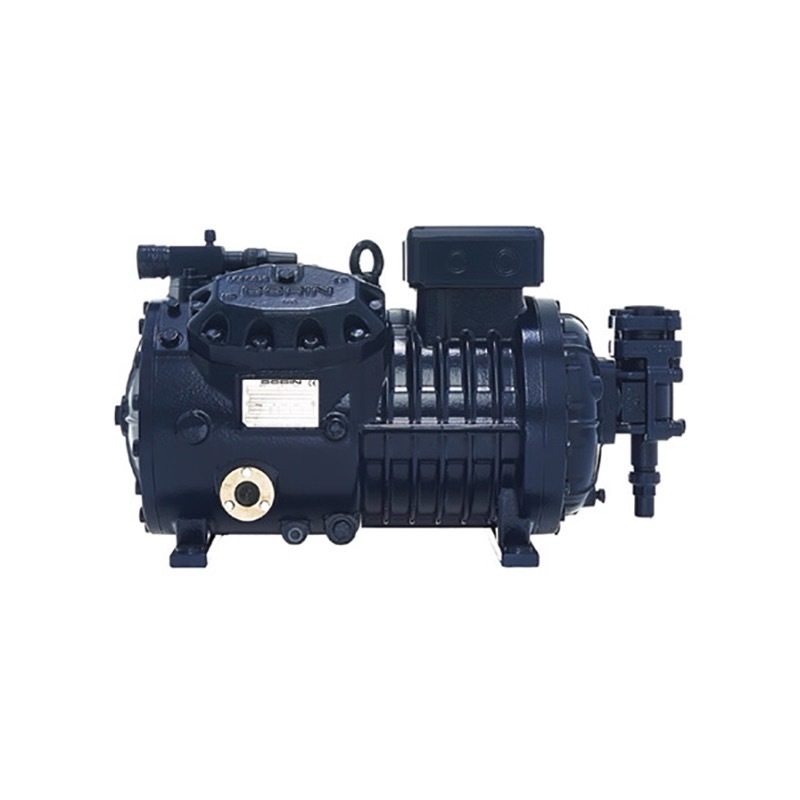

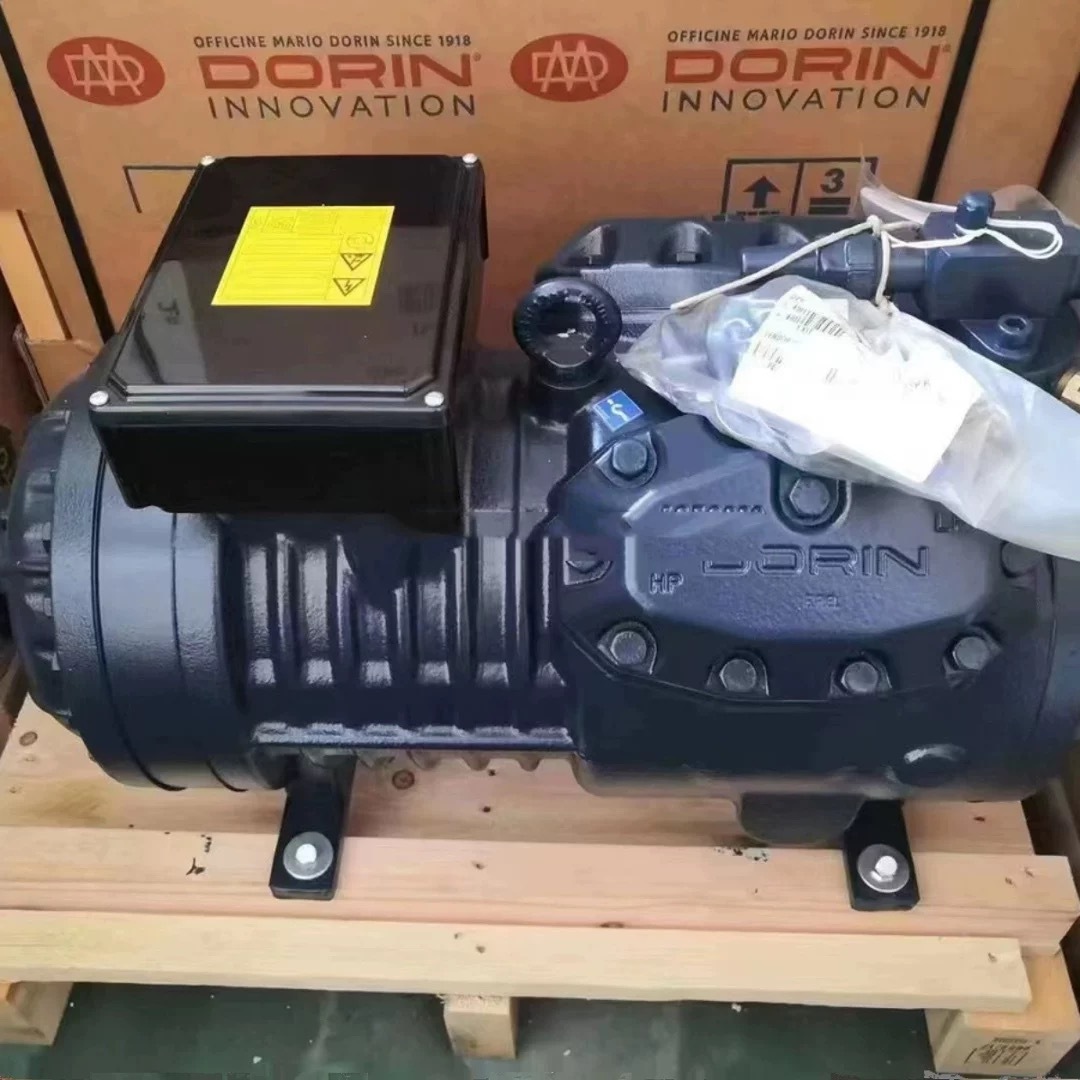

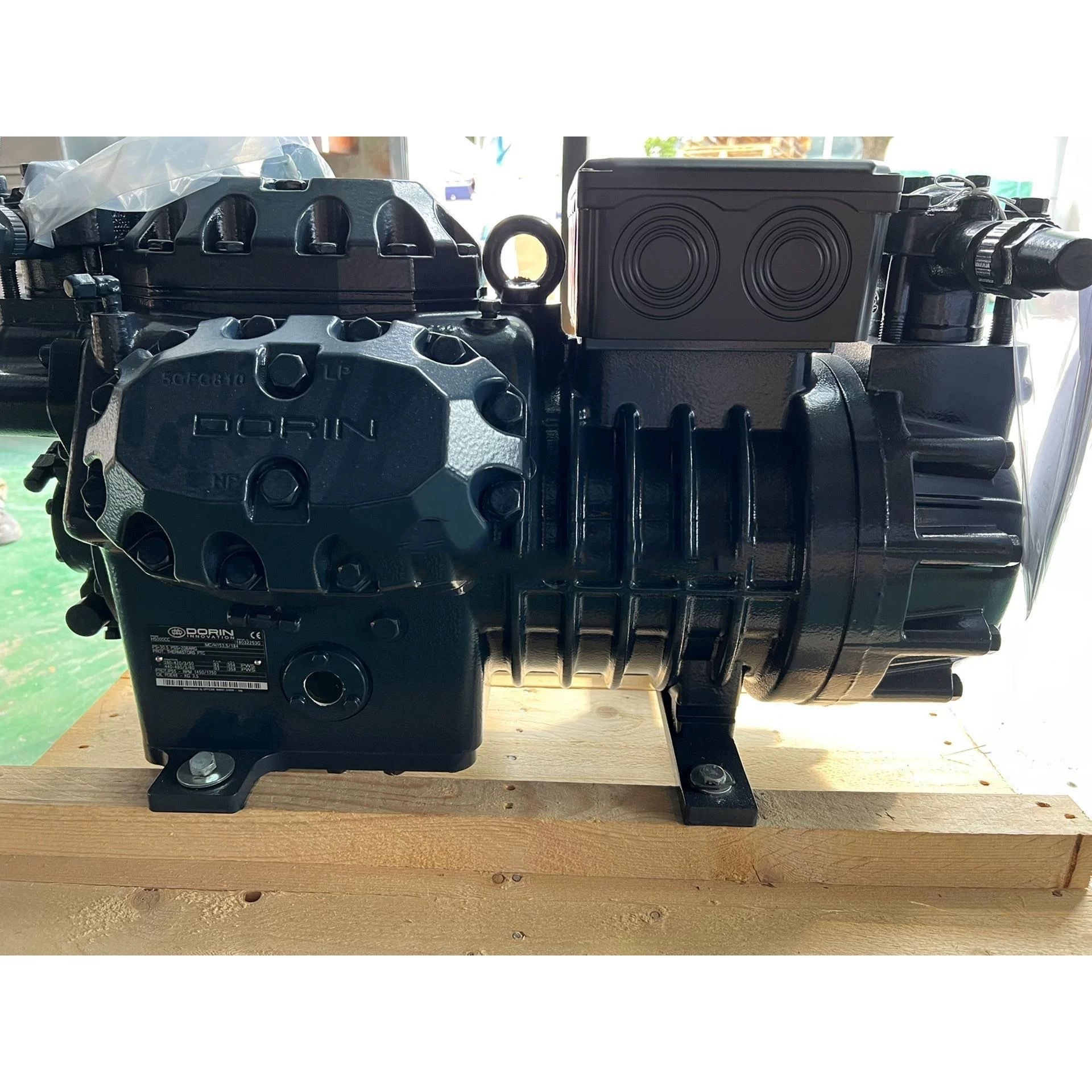

Technical Specifications – Dorin H705CS
Compressor Model: H705CS
Series: Dorin H Series
Compressor Type: Semi-Hermetic Reciprocating Compressor
Number of Cylinders: 6
Displacement
50 Hz: 35.44 m³/h
60 Hz: 42.52 m³/h
Oil Charge: 3.0 L
Suction Connection: 35 mm
Discharge Connection: 22 mm
Net Weight: ≈ 145 kg
Voltage:
380–400V / 3 Phase / 50Hz
Compatible Refrigerants
The Dorin H Series compressors support several refrigerants including:
R134a
R404A
R507A
R407C
R448A
R449A
These refrigerants allow the compressor to operate efficiently in commercial refrigeration and cold storage systems.
Key Features
✔ Semi-hermetic piston compressor design
✔ 6-cylinder configuration for high refrigeration capacity
✔ Low vibration and quiet operation
✔ High energy efficiency
✔ Durable valve plate construction
✔ Easy installation and maintenance
✔ Suitable for modern HFC refrigerants
Typical Applications
The Dorin H705CS compressor is commonly used in:
• Walk-in coolers
• Walk-in freezer rooms
• Cold storage warehouses
• Supermarket refrigeration systems
• Food processing refrigeration
• Industrial refrigeration systems
• Commercial refrigeration equipment
Advantages
The Dorin H Series compressors provide several advantages:
• Reliable semi-hermetic compressor construction
• High energy efficiency
• Long operating life
• Reduced vibration and noise
• Wide refrigerant compatibility
• Stable cooling performance
These features make the compressor a dependable solution for cold room and refrigeration applications.
Shipping & Availability
This compressor can be shipped worldwide via:
Air freight
Sea freight
Express courier
