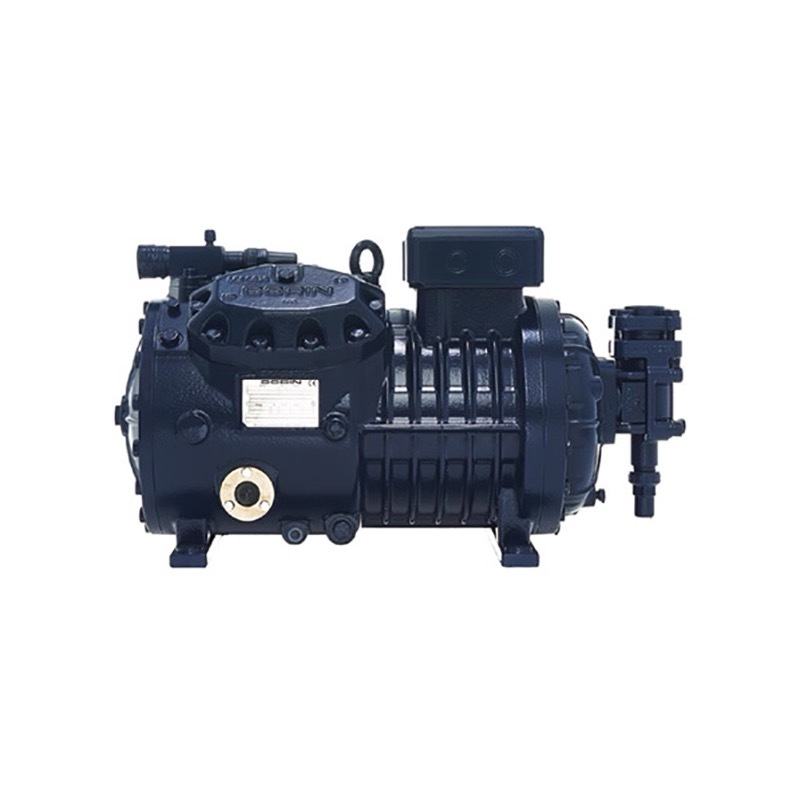

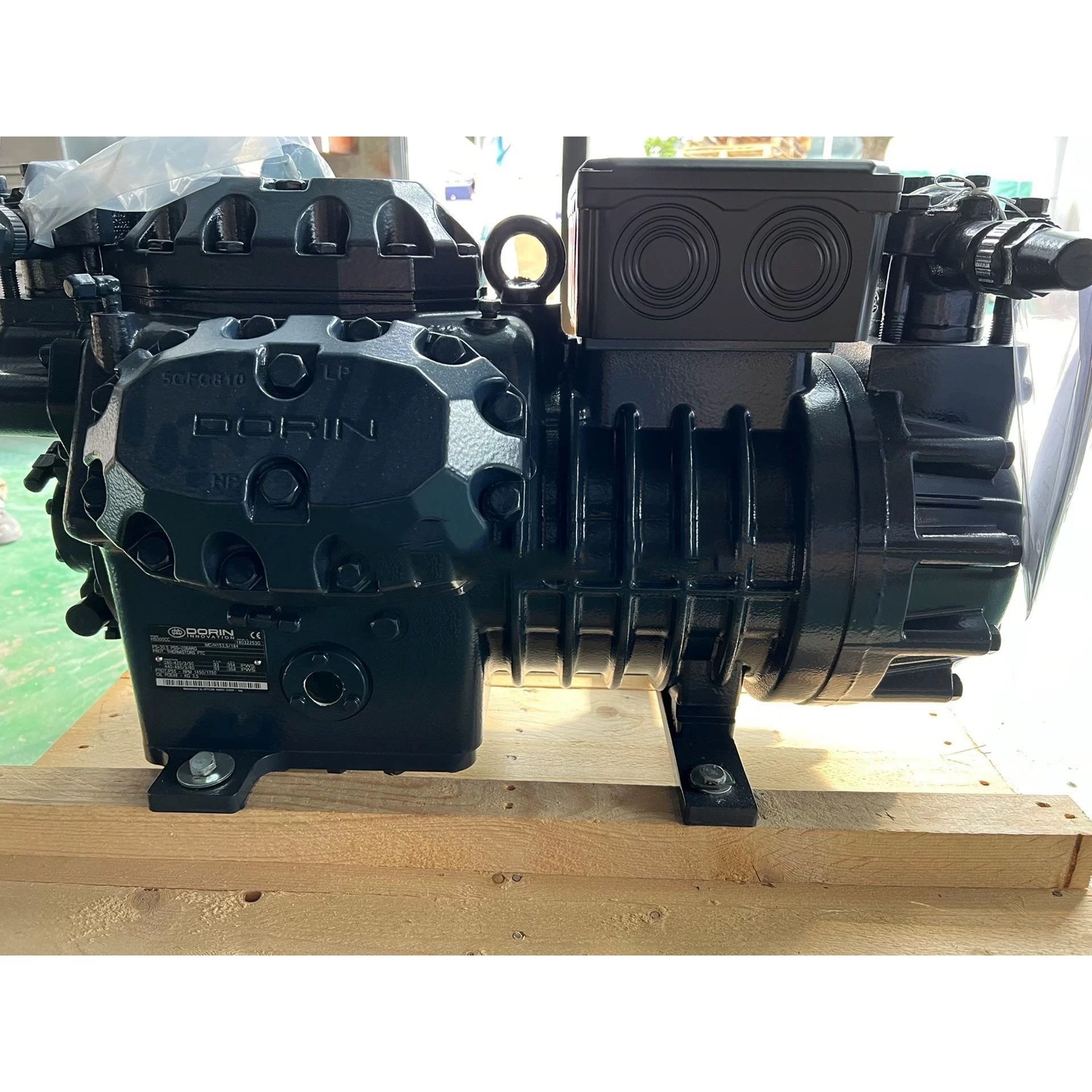

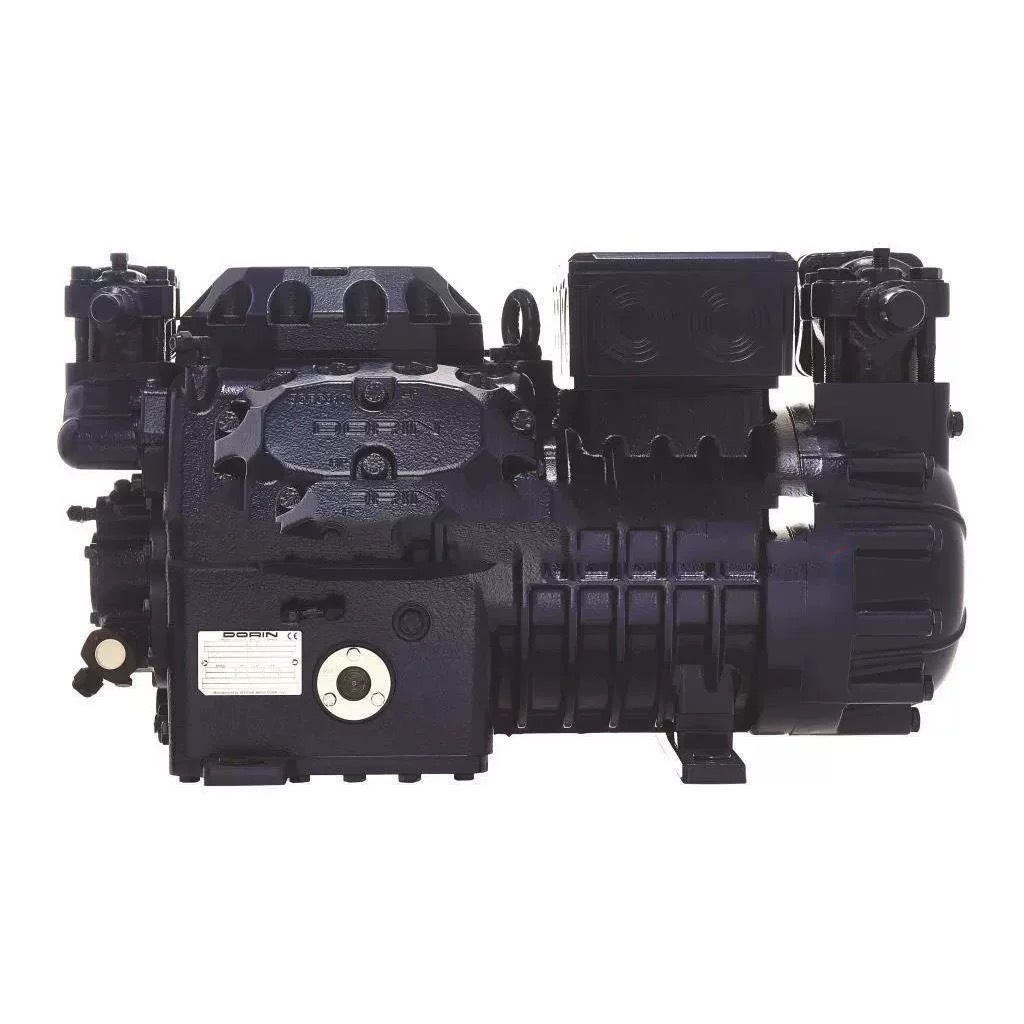

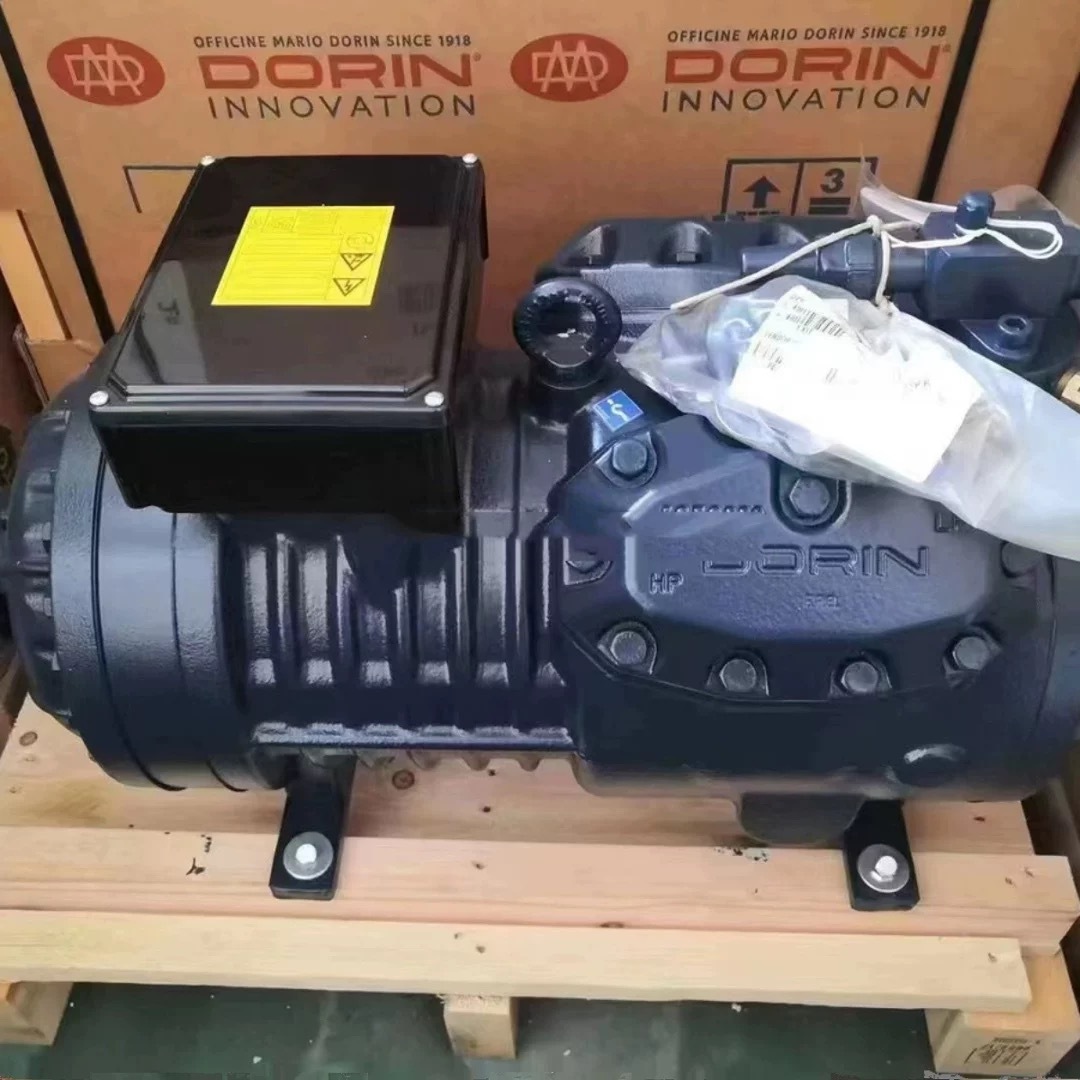

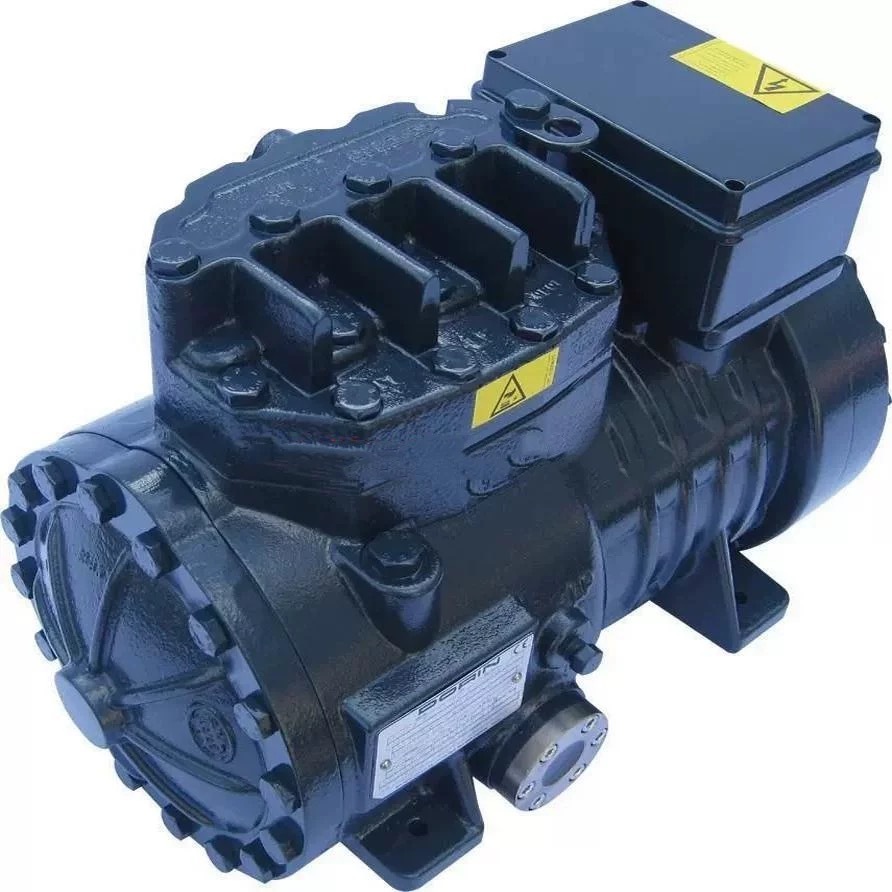

Technical Specifications – Dorin H101CS
Compressor Model: H101CS
Series: Dorin H Series
Compressor Type: Semi-Hermetic Reciprocating Compressor
Number of Cylinders: 2
Displacement
50 Hz: 7.33 m³/h
60 Hz: 8.79 m³/h
Oil Charge: 1.2 L
Suction Connection: 16 mm
Discharge Connection: 12 mm
Net Weight: 37 kg
Compatible Refrigerants
The Dorin H Series compressors are compatible with many modern refrigerants including:
R134a
R404A
R507A
R448A
R449A
R450A
R513A
R407C
R452A
R454C
These refrigerants allow the compressor to operate efficiently in medium and low temperature refrigeration systems.
Key Features
✔ Semi-hermetic piston compressor with compact design
✔ Low vibration and quiet operation
✔ High efficiency refrigeration performance
✔ Durable valve plate design for reliability
✔ IP65 electrical junction box protection
✔ Compatible with inverter operation (30–70 Hz)
✔ Optimized oil circulation system
✔ Designed for modern HFC and HFO refrigerants
Typical Applications
The Dorin H101CS compressor is commonly used in:
• Walk-in coolers
• Walk-in freezer systems
• Commercial refrigeration cabinets
• Supermarket refrigeration systems
• Cold storage rooms
• Food processing refrigeration
• Refrigerated transport equipment
Advantages
The Dorin H Series compressors offer several advantages:
• Reliable semi-hermetic compressor design
• High system efficiency
• Reduced energy consumption
• Low noise and vibration
• Wide refrigerant compatibility
• Flexible operation with inverter control
These features help improve refrigeration system performance and reduce operating costs.
Shipping & Availability
This compressor can be shipped worldwide via:
Air freight
Sea freight
Express courier
Delivery available for New Zealand, Australia, USA, Middle East, and international markets.
Why Choose This Compressor
The Dorin H101CS is designed for medium and low temperature refrigeration systems, offering reliable performance, compact design, and compatibility with modern refrigerants. It is an excellent choice for cold rooms and commercial refrigeration equipment.
