โ๏ธ Key Specifications

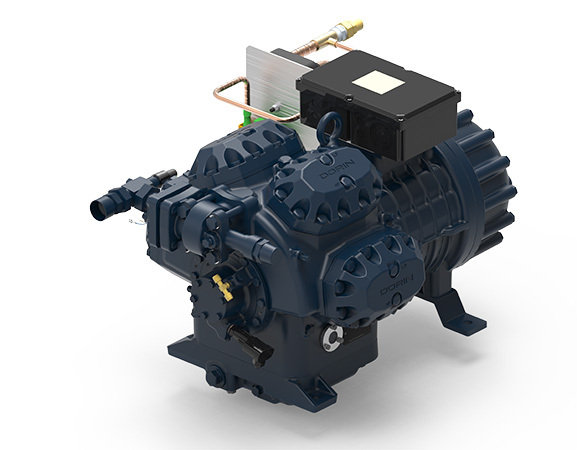

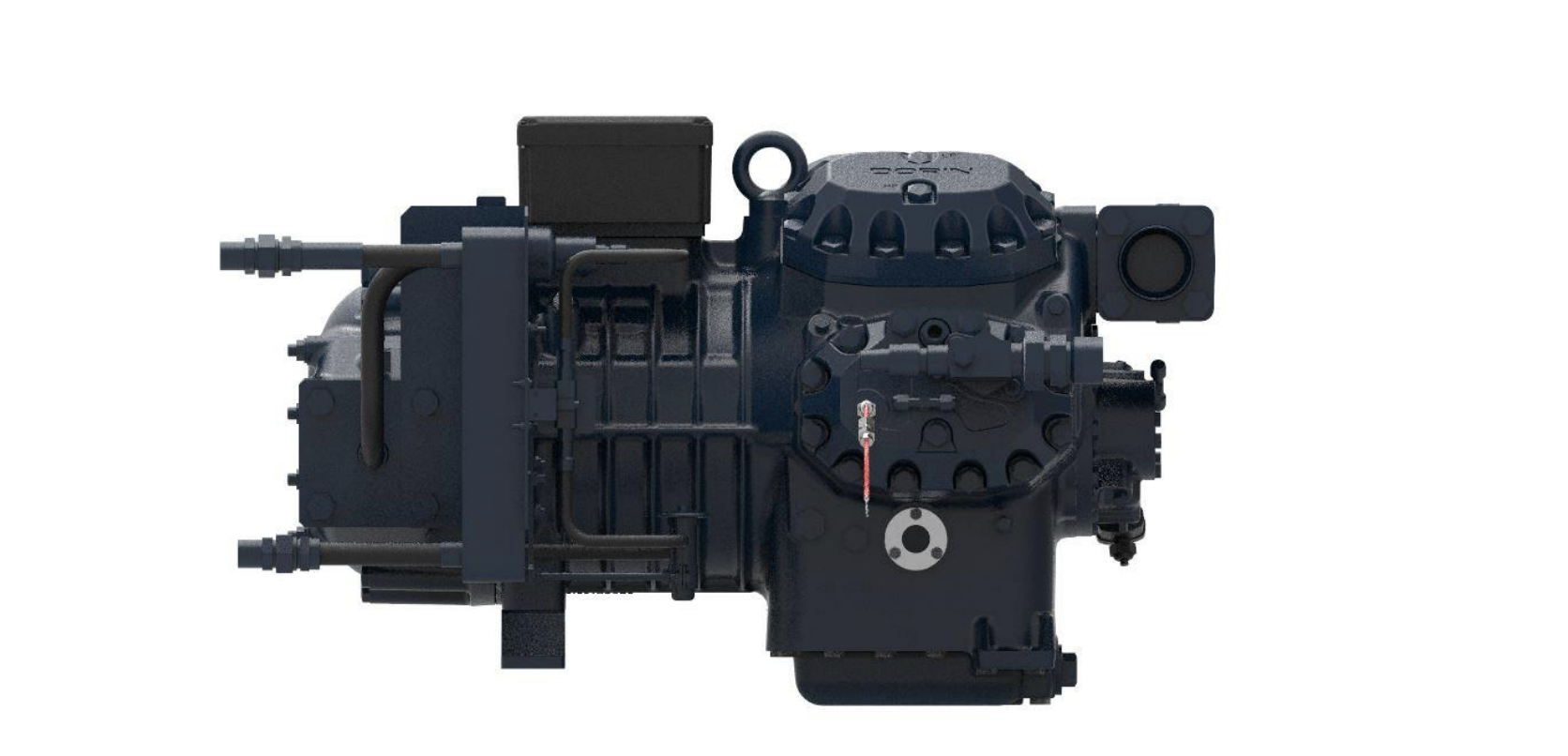

- ๐น Model: Dorin 2S-H1500
- ๐น Series: 2S-H5
- ๐น Type: Two-Stage Semi-Hermetic Compressor
- ๐น Displacement @ 50Hz: 56.49 m³/h
- ๐น HP Displacement @ 50Hz: 37.91 m³/h
- ๐น Cylinders: 2 LP + 2 HP
- ๐น Oil Charge: 3.5 L
- ๐น Net Weight: 193 kg
- โก Power Supply: 380–420V / 3 Phase / 50Hz
- โก 60Hz Option: 440–480V / 3 Phase / 60Hz
- ๐ Maximum Absorbed Power: 19.5 kW @ 50Hz / 23.4 kW @ 60Hz
๐ญ Suitable Applications
- โ๏ธ Blast freezers
- ๐ง Low-temperature cold rooms
- ๐ฆ Frozen food storage
- ๐ Seafood & fish processing
- ๐ฅฉ Meat & poultry processing
- ๐ญ Industrial refrigeration systems
- ๐ Cold storage & logistics facilities
- ๐ข Marine refrigeration
โญ Main Features
- โ๏ธ Two-stage compression technology
- ๐ก๏ธ Designed for low-temperature refrigeration
- โก High efficiency and reliable operation
- ๐ Low vibration and quiet operation
- ๐ VFD / inverter compatible
- ๐ก๏ธ IP65 electrical junction box
- ๐ข๏ธ Forced lubrication system
- ๐ก๏ธ Motor and discharge temperature protection
- ๐ง Liquid subcooler kit included
- ๐ช Heavy-duty design for industrial applications
๐งช Refrigerant Options
Suitable for a range of refrigeration applications using refrigerants including R404A, R507A, R448A, R449A, R452A, R407F, R407A and R407H, depending on operating conditions.
๐ Shipping & Availability
โ
Standard 380–420V / 3 Phase / 50Hz models available
โ๏ธ 60Hz and special-voltage options available with approximately 3–4 weeks lead time
๐ฆ Export-grade packaging for safe international transportation
๐ Worldwide shipping available by air and sea freight
๐ง More Dorin 2S-H Models Available
The Dorin 2S-H1500 is part of the wider Dorin 2S-H two-stage semi-hermetic compressor range.
๐ More models and capacities are available and coming soon, covering a wide range of commercial and industrial low-temperature refrigeration requirements.
๐ฅ Technical datasheet available on request
๐ฐ Contact us for pricing and availability
๐ง Contact us for technical support and product information
๐ Call or WhatsApp us for help selecting the correct compressor for your refrigeration project.
