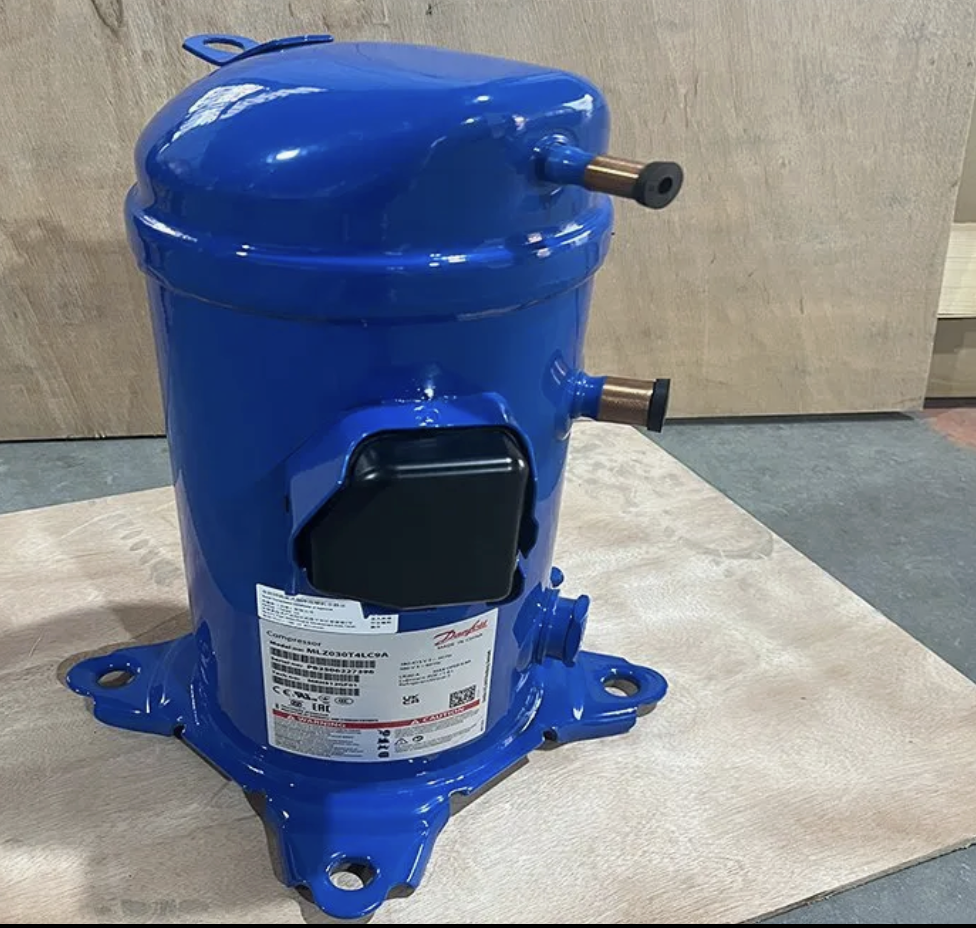

Danfoss MLZ066 Scroll Compressor

🔧

Technical Specifications

✅ Model: MLZ066

✅ Horsepower: 9 HP

✅ Nominal Cooling Capacity: 15,100 W (51,500 Btu/h)

✅ Power Input: 7.01 kW

✅ COP (Efficiency): 2.15 W/W

✅ EER: 7.34 Btu/h/W

✅ Swept Volume: 148.8 cm³/rev

✅ Displacement: 25.9 m³/h

✅ Oil Charge: 2.7 L

✅ Net Weight (with oil): 47 kg

✅ Refrigerants Supported: R404A (standard), R134a, R22, R507

✅ Electrical Supply: 380V / 50Hz / 3 Phase (standard)

✅ Alternate Voltages: 60Hz and other configurations available with a 2–3 week lead time.

💡

Key Features

✅ High-Performance Cooling: Delivers strong cooling output for large and demanding commercial applications.

✅ Energy Efficiency: Efficient operation even under continuous heavy loads.

✅ Quiet Operation: Smooth and reliable performance with low noise levels.

✅ Versatile Refrigerant Use: Compatible with a wide range of refrigerants.

✅ Robust Construction: Engineered for long-lasting performance in tough industrial environments.

✅ Flexible Voltage Options: Available in standard and alternative voltage configurations to suit your needs.

📦

Applications

• Large walk-in freezers and coolers

• Food processing and storage facilities

• Industrial cold chain logistics

• Supermarket refrigeration systems

• Process cooling in manufacturing and industrial facilities
