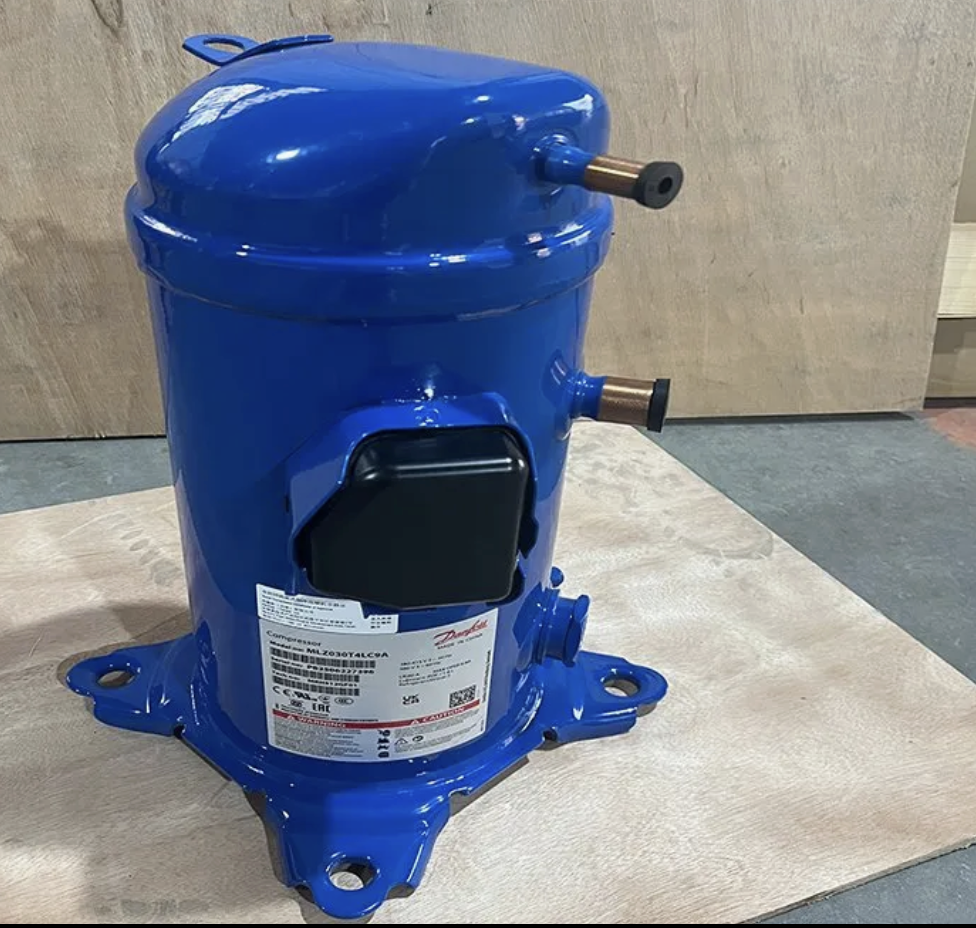

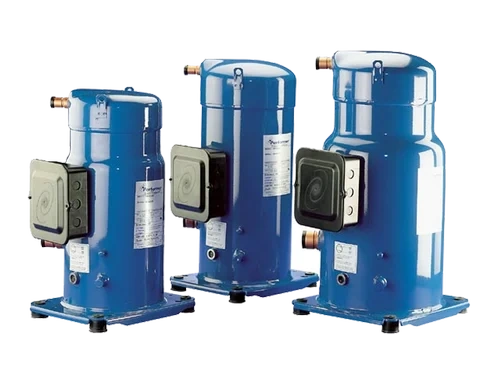

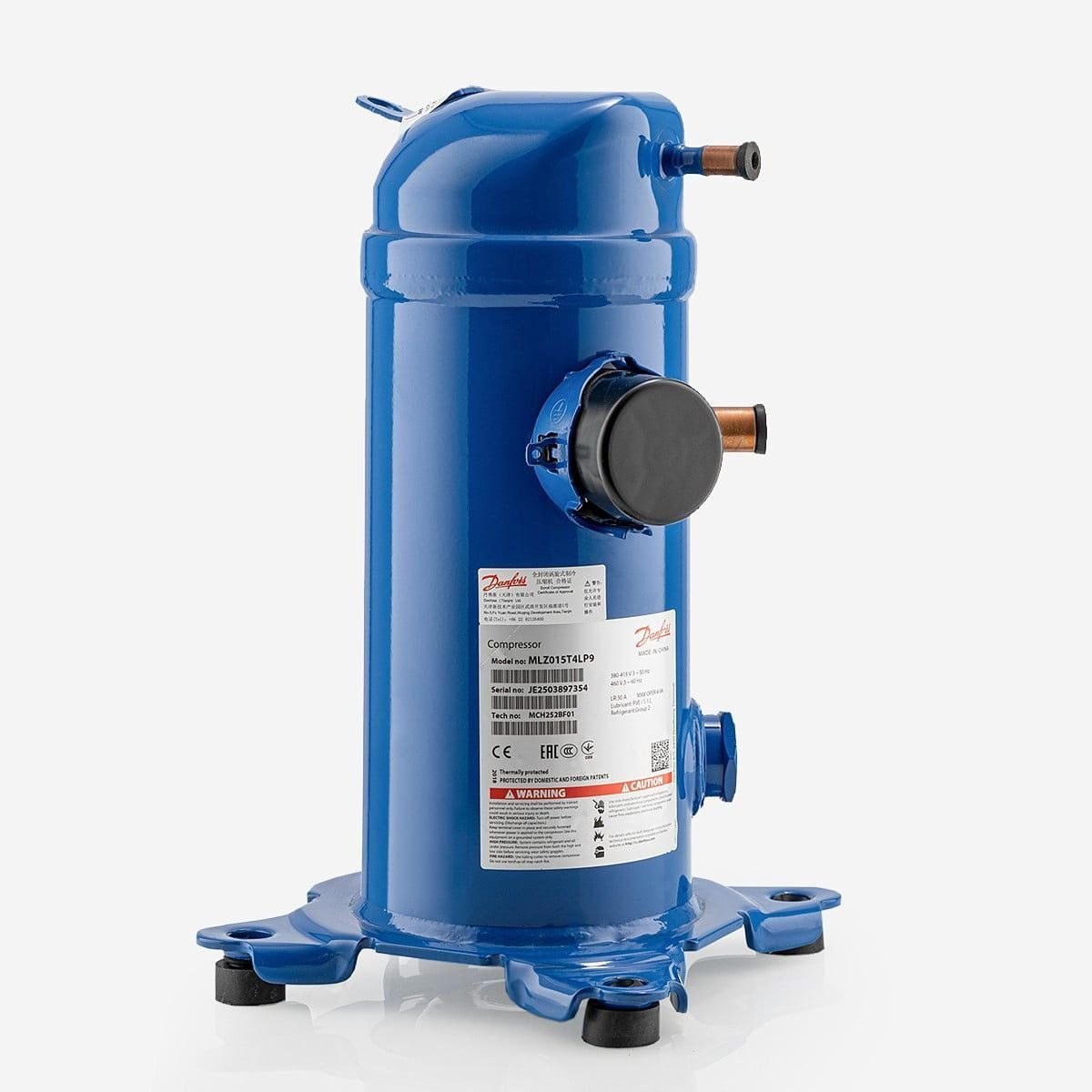

Danfoss MLZ045 Scroll Compressor

🔧

Technical Specifications

✅ Model: MLZ045

✅ Horsepower: 6 HP

✅ Nominal Cooling Capacity: 10,200 W (34,800 Btu/h)

✅ Power Input: 4.81 kW

✅ COP (Efficiency): 2.11 W/W

✅ EER: 7.20 Btu/h/W

✅ Swept Volume: 98.6 cm³/rev

✅ Displacement: 17.2 m³/h

✅ Oil Charge: 1.6 L

✅ Net Weight (with oil): 41 kg

✅ Refrigerants Supported: R404A (standard), R134a, R22, R507

✅ Electrical Supply: 380V / 50Hz / 3 Phase (standard)

💡

Key Features

✅ High Capacity: Efficiently meets the cooling demands of large-scale systems.

✅ Versatile Refrigerant Compatibility: Operates with R404A, R134a, R22, and R507 for application flexibility.

✅ Compact & Efficient: Scroll technology ensures smooth, quiet, and energy-efficient operation.

✅ Robust Build: Engineered for long-lasting, continuous performance in harsh environments.

✅ Standard Electrical Setup: Ready to integrate into 380V / 50Hz / 3 Phase systems.

✅ Alternate Voltages: 60Hz and other electrical configurations are available with a 2–3 week lead time.

📦

Applications

• Large cold rooms and walk-in freezers

• Supermarket display cabinets and food storage areas

• Industrial process cooling

• High-volume commercial refrigeration systems

ℹ️

For More Information

📥 We offer complete data sheets, installation support, and tailored advice to help you choose the best refrigeration solution.
