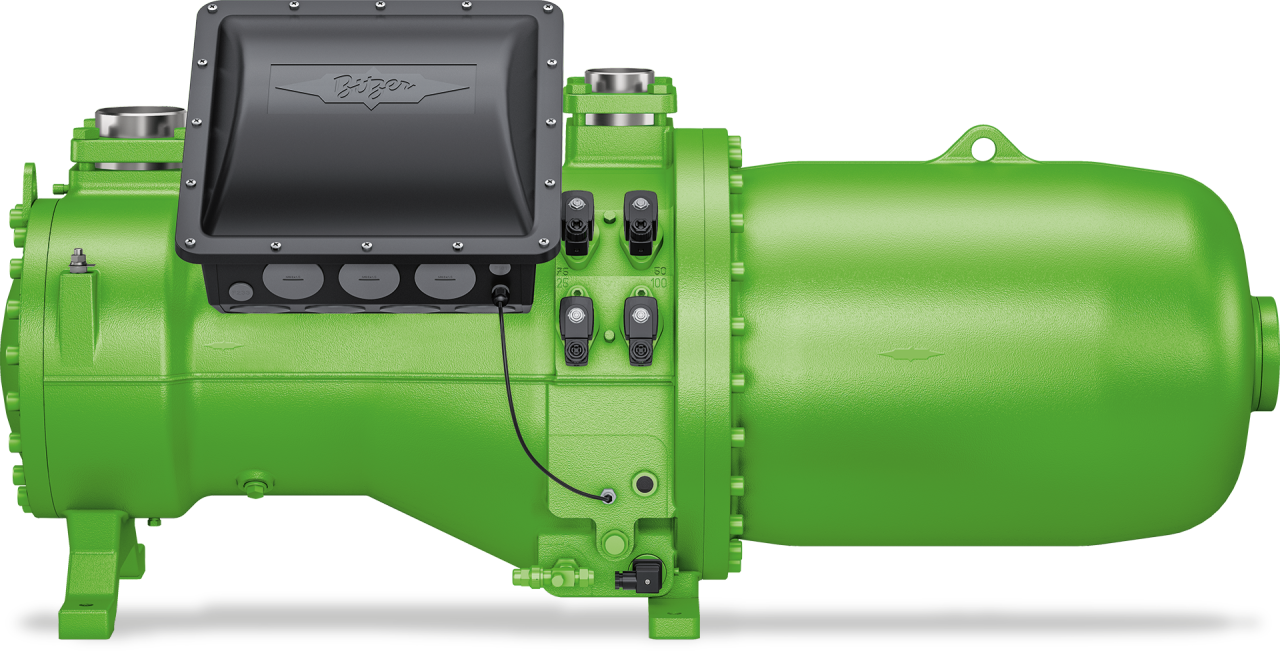

Bitzer CSH6593-60Y Compact Screw Compressor

⚙️ Technical Specifications

• Model: CSH6593-60Y

• Refrigerant: R134a (also compatible with R1234yf, R1234ze(E), R450A, R513A, R515B, R407C, R404A, R507A, R407A, R407F)

• Cooling Capacity: 99.4 kW @ 0 °C SST / 50 °C SDT

• Power Input: 34.8 kW

• COP / EER: 2.86

• Operating Voltage: 380–415V / 3Ph / 50Hz (standard)

• Displacement: 220 m³/h (50 Hz) | 264 m³/h (60 Hz – custom order)

• Running Current (400V): 61.7 A

• Max. Operating Current: 108.0 A

• Starting Current: 269 A (DOL) / 508 A (DD)

• Max. Power Input: 56.0 kW

• Max. Pressure: 19 bar (LP) / 28 bar (HP)

• Connections: Suction 64 mm (2 5/8”), Discharge 54 mm (2 1/8”)

• Oil Type: BSE170 (standard for R134a, HFO & HFC refrigerants)

• Oil Charge: 9.0 dm³

• Weight: 365 kg

⸻

✅ Key Benefits

• High cooling performance (≈ 100 kW) with superior efficiency

• Flexible 4-step or infinitely variable capacity control (100–25%)

• Wide refrigerant compatibility, including eco-friendly HFO blends

• Integrated oil separator, oil heater, and discharge gas temperature sensor

• Compact, semi-hermetic design for easier installation and servicing

• ASERCOM-certified performance for compliance and reliability

⸻

📦 Applications

• Industrial and commercial chillers

• Process cooling plants and factories

• Large-scale air-conditioning systems

• Heat pumps for industrial or building projects

⸻

🚚 Shipping & Availability

• Condition: Brand new, genuine Bitzer

• Packaging: Original factory packaging

• Availability:

  • 50 Hz version → Standard supply

  • 60 Hz version → Custom build, approx. 3 weeks lead time

• Shipping: Worldwide delivery available
