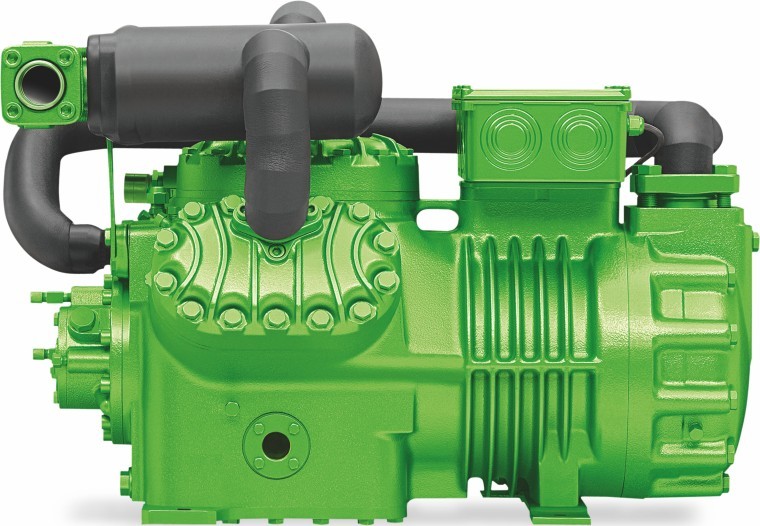

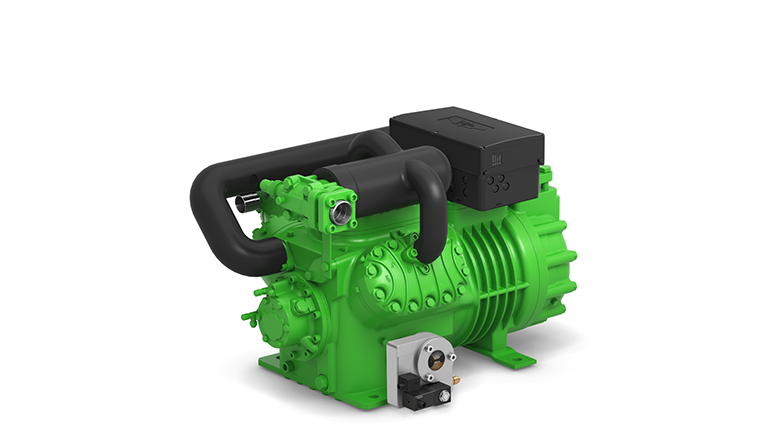

Bitzer S6J-16.2Y Two-Stage Semi-Hermetic Compressor

🔧 Technical Data Summary

• Cooling Capacity (R404A, t₀ = -35°C, t𝑐 = 40°C): 19.33 kW

• Power Input: 13.21 kW

• COP (Efficiency): 1.46

• Condenser Capacity: 32.5 kW

• Displacement (1450 rpm / 50Hz): 63.50 / 31.80 m³/h

• Displacement (1750 rpm / 60Hz): 76.64 / 38.38 m³/h

• Cylinders × Bore (LP/HP) × Stroke: 6 × 65 / 65 mm × 55 mm

• Weight: 209 kg

• Max Pressure (LP / MP / HP): 19 / 19 / 28 bar

• Suction Line Connection: 42 mm – 1 5/8”

• Discharge Line Connection: 35 mm – 1 3/8”

• Max Operating Current: 31.0 A

• Starting Current (Rotor Locked): 81.0 A (Y) / 132.0 A (YY)

• Max Power Input: 18.3 kW

• Oil Charge: 4.75 L

🛢️ Oil Compatibility

• R404A / R507A / R448A / R449A / R454C → BSE32 (Standard)

• R22 → B5.2 (Option)

✅ Why Choose the Bitzer S6J-16.2Y?

• Delivers high cooling output for heavy-duty freezing applications

• Reliable performance even at -35°C evaporating temperature

• Equipped with essential protections and standard components

• Energy-efficient two-stage design for reduced power consumption

• Backed by Bitzer’s German engineering for long service life

📦 Standard Features

• SE-B2 motor protection

• IP54 enclosure (IP66 optional)

• TX valve for liquid injection

• Sight glass, filter drier, and solenoid valve

• Vibration dampers

• Optional: Oil heater (140 W), Delta P II monitor, discharge temp sensor, subcooler

🚚 Shipping & Availability

• ✅ Standard 380–420V / 50Hz models available

• ⚙️ Custom 60Hz and voltage options build-to-order in 3–4 weeks

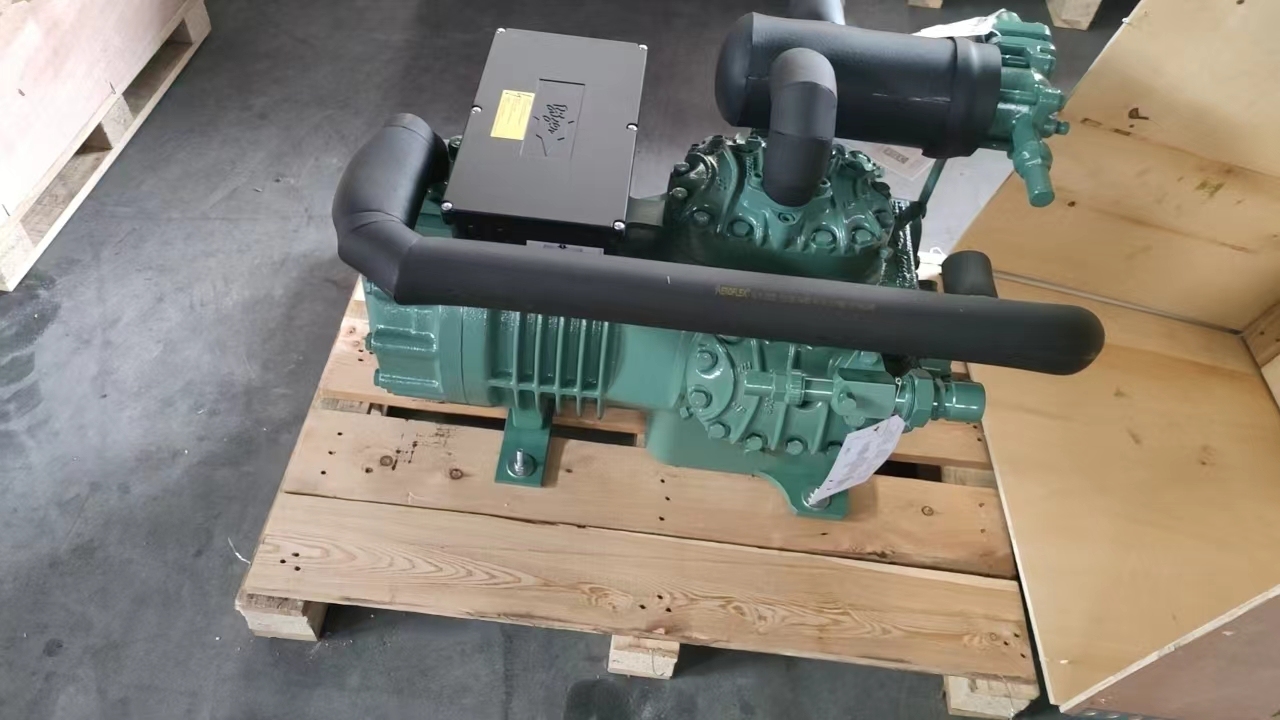

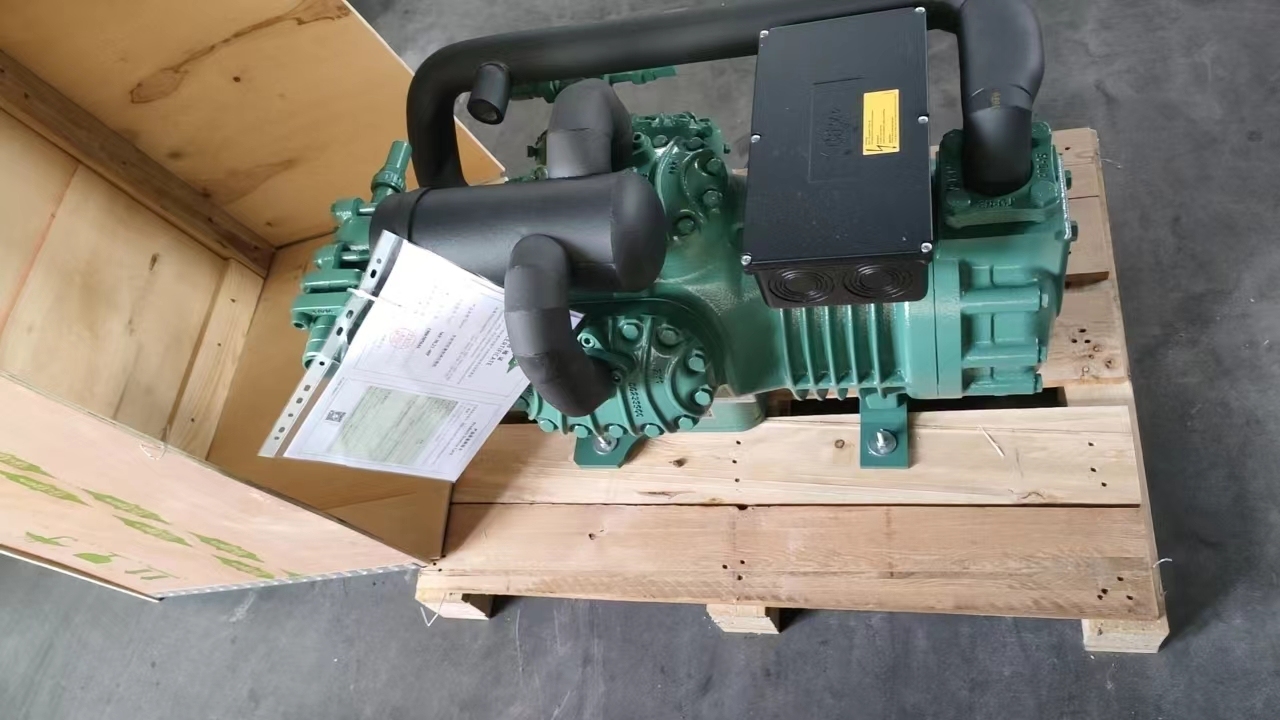

• 📦 Export-grade packaging for global shipment

• 🌍 Available shipping options: sea, air, and express

📥 Request Full Datasheet

Download includes wiring diagrams, performance charts, and technical installation info.

Contact us now to receive the full datasheet and professional guidance.
