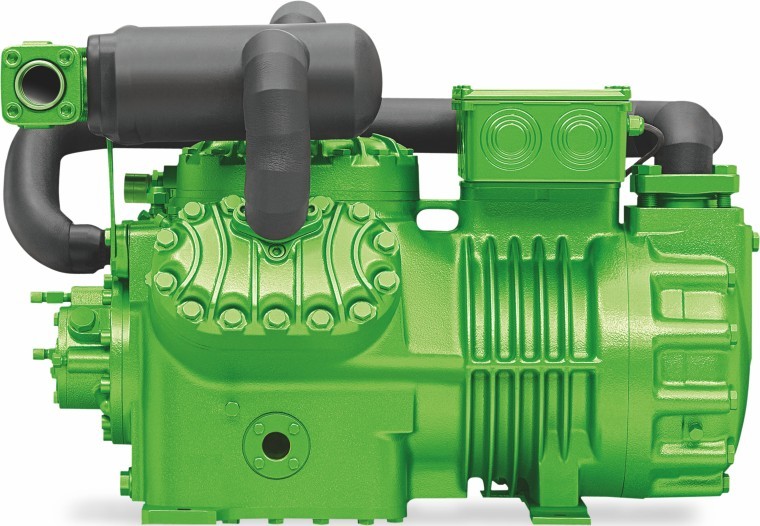

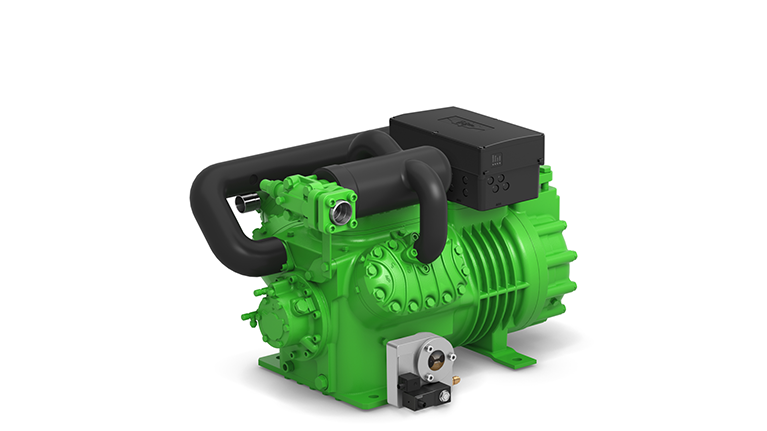

Bitzer S6F-30.2Y Two-Stage Semi-Hermetic Compressor

🔧 Technical Data Summary

• Cooling Capacity (R404A, t₀ = -35°C, t𝑐 = 40°C): 30.3 kW

• Power Input: 21.0 kW

• COP (Efficiency): 1.44

• Condenser Capacity: 51.3 kW

• Displacement (50Hz / 1450 rpm): 101.10 / 50.50 m³/h

• Displacement (60Hz / 1750 rpm): 122.02 / 60.95 m³/h

• Cylinders × Bore (LP/HP) × Stroke: 6 × 82 / 82 mm × 55 mm

• Weight: 234 kg

• Max Pressure (LP / MP / HP): 19 / 19 / 28 bar

• Suction Line Connection: 42 mm – 1 5/8”

• Discharge Line Connection: 35 mm – 1 3/8”

• Max Operating Current: 51.0 A

• Starting Current (Rotor Locked): 135.0 A (Y) / 220.0 A (YY)

• Max Power Input: 31.9 kW

• Oil Charge: 4.75 L

🛢️ Oil Compatibility

• R404A / R507A / R448A / R449A / R454C → BSE32 (Standard)

• R22 → B5.2 (Optional)

✅ Why Choose the Bitzer S6F-30.2Y?

• Exceptional cooling power at -35°C for demanding freezer applications

• Bitzer-engineered durability and efficiency with two-stage compression

• Ideal for large-scale food storage, blast freezers, and processing plants

• Includes factory-installed protections and components

• Designed for long-term heavy-duty use in industrial settings

📦 Standard Features

• SE-B2 motor protection

• Enclosure: IP54 (IP66 optional)

• TX valve for liquid injection

• Sight glass, filter drier, solenoid valve

• Vibration dampers

• Optional: Oil heater, Delta P II monitoring, discharge gas sensor, liquid subcooler

🚚 Shipping & Availability

• ✅ Standard 380–420V / 50Hz models available

• ⚙️ Custom voltage (60Hz) built-to-order in 3–4 weeks

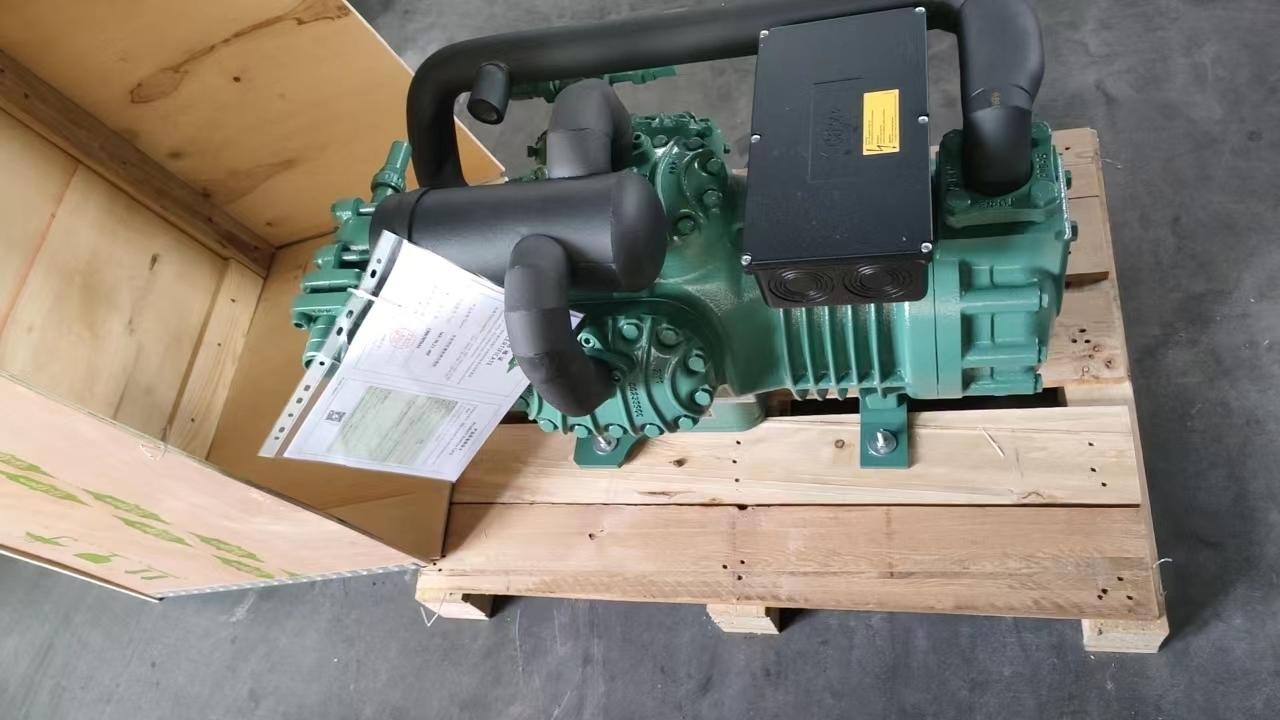

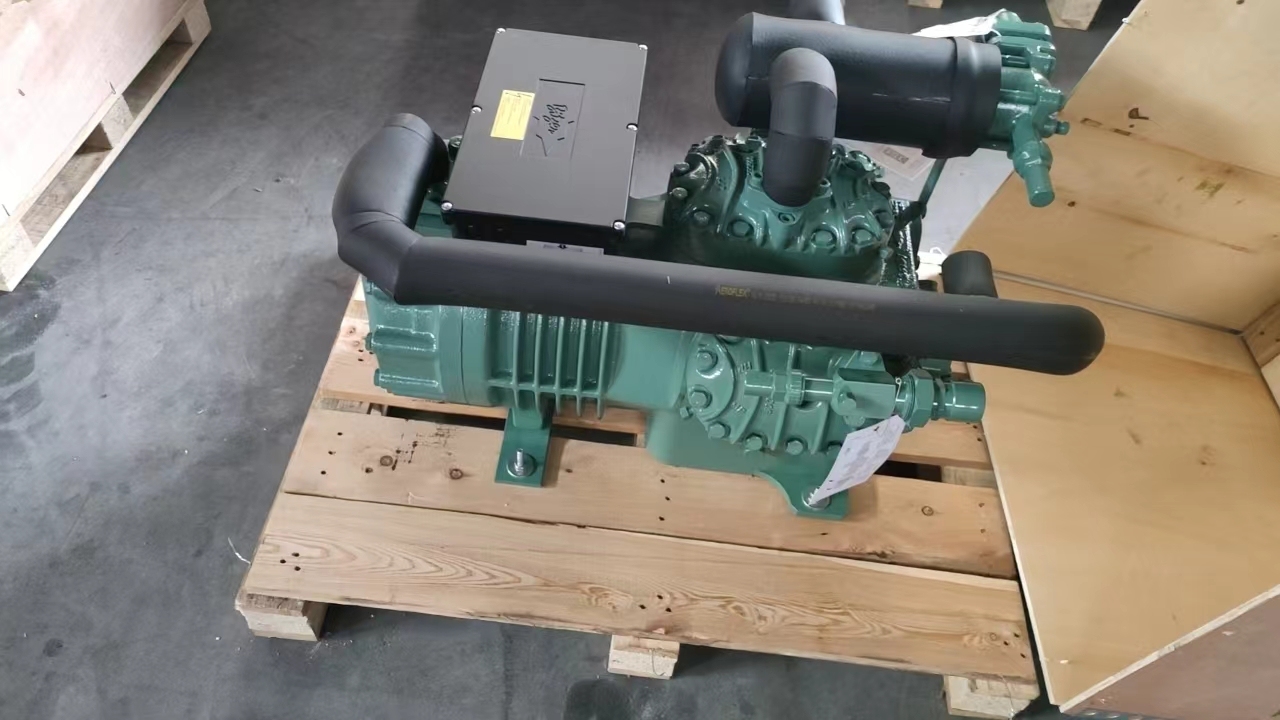

• 📦 Export-safe packaging for global freight

• 🌍 Delivery options: air, sea, and express courier

📥 Request Full Datasheet

Includes connection drawings, wiring details, and installation specifications.

Contact our team to receive the full PDF or for technical guidance.
