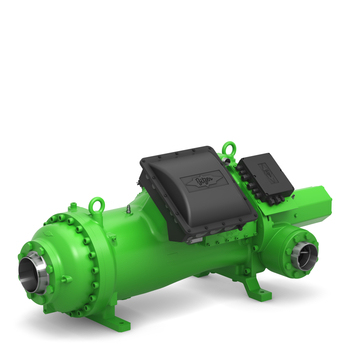

Bitzer HSK95103-320 Semi-Hermetic Screw Compressor

🔧

Technical Specifications

• Model: HSK95103-320

• Refrigerant: R404A (compatible with R134a, R507A, R407A/F, R448A, R449A, R1234yf, R1234ze, R515B)

• Cooling Capacity: 566 kW (at -10°C evaporating / 45°C condensing)

• Power Input: 253 kW

• COP (Efficiency): 2.24

• Displacement:

  • 50Hz: 1,015 m³/h

  • 60Hz: 1,225 m³/h

• Voltage: 380–415V / 3 Phase / 50Hz

• Max Operating Current: 566.0 A

• Starting Current (Rotor Locked): 917.0 A (Y) / 2,870.0 A (D)

• Max Power Input: 334.0 kW

• Weight: 1,120 kg

• Suction Connection: DN150

• Discharge Connection: DN125

• Sound Pressure Level @ 1m: 79.0 dB(A)

• Capacity Control: Infinitely adjustable 100–25%

• Oil Type: BSE170

• Integrated Features:

  • Discharge gas temperature sensor

  • Oil injection kit

  • Start unloading (CM-SW-01)

  • Oil flow control (OLC-D1 & CM-SW-01)

  • Motor protection (CM-SW-01)

• Optional Upgrades:

  • Discharge shut-off valve

  • Oil return adapters and shut-off valve

  • Vibration dampers

  • Terminal box cover heater

  • Sound measurement kit

💡

Key Features

✅ Massive Cooling Capacity: Delivers up to 566 kW for large-scale industrial refrigeration and process cooling.

✅ Precision German Engineering: Built to withstand continuous 24/7 operation in the most demanding environments.

✅ Stepless Capacity Control: Smoothly adjusts capacity from 100% to 25% for optimized energy efficiency.

✅ Advanced Monitoring: Fully compatible with the Bitzer IQ Module for real-time diagnostics and smart system control.

✅ Versatile Refrigerant Compatibility: Works with modern, low-GWP refrigerants for sustainable performance.

✅ Heavy-Duty Construction: Engineered for reliable performance in high-load, high-pressure applications.

📦

Applications

• Industrial cold storage and logistics centers

• Large food processing and distribution hubs

• Process cooling in manufacturing plants

• Marine and offshore refrigeration systems

• Centralized HVAC systems in commercial facilities

🚚

Shipping & Availability

✅ Standard Voltage: 380–415V / 3 Phase / 50Hz

✅ Global Shipping: Export-grade packaging for secure worldwide delivery

✅ Lead Time: Standard 50Hz version typically in stock. For special electrical configurations (60Hz or other voltages), please allow an additional 2–3 weeks.
