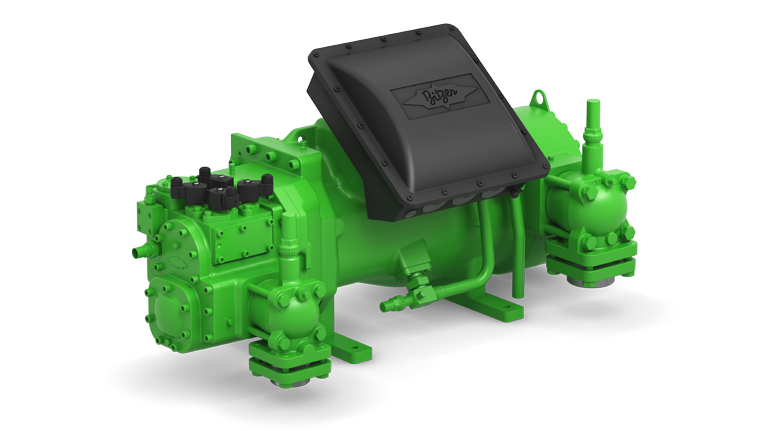

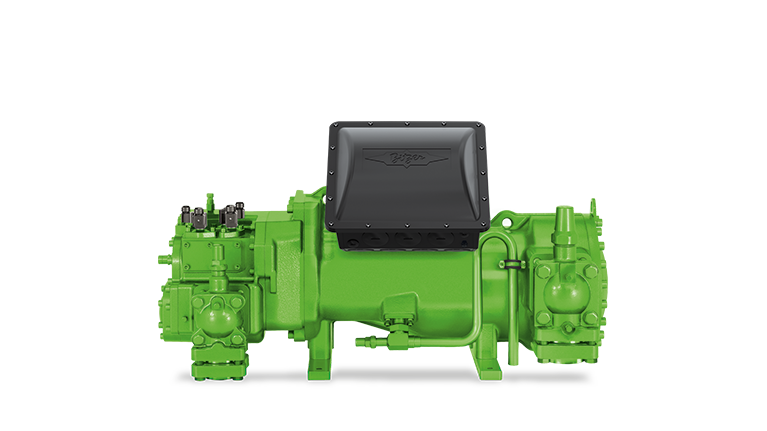

Bitzer HSK7461-80 Semi-Hermetic Screw Compressor

🔧

Technical Specifications

• Model: HSK7461-80

• Refrigerant: R404A (compatible with R134a, R507A, R407A/F, R448A, R449A, R1234yf, R1234ze, R515B)

• Cooling Capacity: 119.7 kW (at -10°C evaporating / 45°C condensing)

• Power Input: 63.2 kW

• COP (Efficiency): 1.89

• Displacement:

  • 50Hz: 220 m³/h

  • 60Hz: 266 m³/h

• Voltage: 380–415V / 3 Phase / 50Hz

• Max Operating Current: 144.0 A

• Starting Current (Rotor Locked): 350.0 A (D) / 585.0 A (DD)

• Max Power Input: 85.0 kW

• Weight: Approx. 314 kg

• Suction Connection: 76 mm – 3 1/8”

• Discharge Connection: 54 mm – 2 1/8”

• Sound Pressure Level @ 1m: 78.5 dB(A)

• Capacity Control: 100–75–50%

• Integrated Features:

  • Discharge gas temperature sensor

  • Start unloading

  • Oil flow control

  • Motor protection

  • Suction shut-off valve

• Optional Upgrades:

  • Discharge shut-off valve

  • ECO connection

  • Sound measurement kit

💡

Key Features

✅ High Cooling Capacity: Delivers up to 119.7 kW of cooling power for large industrial and commercial applications.

✅ Stepless Capacity Control: Offers smooth modulation from 100% to 50% to optimize energy usage.

✅ Robust German Engineering: Built for continuous 24/7 operation in demanding industrial environments.

✅ Advanced Monitoring: Fully compatible with the Bitzer IQ Module for real-time performance monitoring and diagnostics.

✅ Versatile Refrigerant Use: Compatible with modern and eco-friendly low-GWP refrigerants.

✅ Low Noise Operation: Maintains a sound pressure level of 78.5 dB(A) for a quieter workplace.

📦

Applications

• Large cold storage warehouses

• Food processing and logistics centers

• Industrial process cooling systems

• Marine and offshore refrigeration

• Centralized refrigeration for commercial facilities

🚚

Shipping & Availability

✅ Standard Voltage: 380–415V / 3 Phase / 50Hz

✅ Global Shipping: Export-grade packaging ensures safe worldwide delivery

✅ Lead Time: Standard 50Hz electrical version is typically in stock. For special electrical configurations (60Hz or other voltages), please allow an additional 2–3 weeks.
