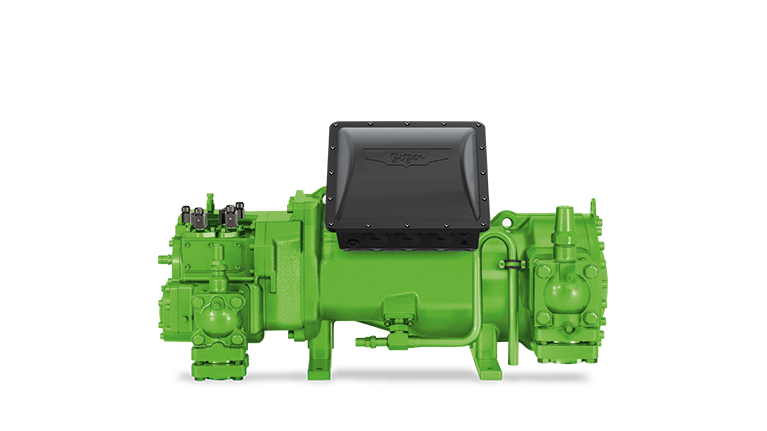

Bitzer HSK5363-40 Semi-Hermetic Screw Compressor

🔧

Technical Specifications

• Model: HSK5363-40

• Refrigerant: R404A (also compatible with R134a, R507A, R407A/F, R448A, R449A, R1234yf, R1234ze, R515B)

• Cooling Capacity: 59.1 kW (at -10°C evaporating / 45°C condensing)

• Power Input: 32.8 kW

• COP (Efficiency): 1.80

• Displacement:

  • 50Hz: 118 m³/h

  • 60Hz: 142 m³/h

• Voltage: 380–415V / 3 Phase / 50Hz

• Motor Power: Up to 42.1 kW

• Max Operating Current: 66.0 A

• Starting Current (Rotor Locked): 182.0 A (D) / 311.0 A (DD)

• Weight: Approx. 183 kg

• Suction Connection: 54 mm – 2 1/8”

• Discharge Connection: 42 mm – 1 5/8”

• Sound Pressure Level @ 1m: 74.5 dB(A)

• Capacity Control: 100–75–50% (standard)

• Integrated Features:

  • Discharge gas temperature sensor

  • Start unloading

  • Oil flow control

  • Motor protection

  • Suction shut-off valve

• Optional Upgrades:

  • Discharge shut-off valve

  • ECO connection

  • Sound measurement kit

💡

Key Features

✅ German Engineering – Precision manufacturing for reliable, long-lasting operation in critical industrial environments.

✅ High Efficiency – Optimized for both full-load and part-load operation, ensuring energy savings.

✅ Stepless Capacity Control – Smooth capacity modulation for operational flexibility.

✅ Advanced Monitoring – Compatible with the Bitzer IQ Module for real-time performance monitoring and diagnostics.

✅ Versatile Refrigerant Compatibility – Supports modern and eco-friendly refrigerants.

✅ Robust Design – Engineered for 24/7 performance with IP54 motor protection (optional IP66).

📦

Applications

• Industrial air-conditioning systems

• Food processing and cold storage

• Large commercial refrigeration facilities

• Process cooling in manufacturing plants

• Marine and offshore refrigeration systems

🚚

Shipping & Availability

✅ Standard Voltage: 380–415V / 3 Phase / 50Hz

✅ Global Shipping: Export-grade packaging for safe worldwide delivery.

✅ Lead Time: Standard 50Hz version typically in stock. For special electrical configurations (60Hz or other voltages), please allow an additional 2–3 weeks.
