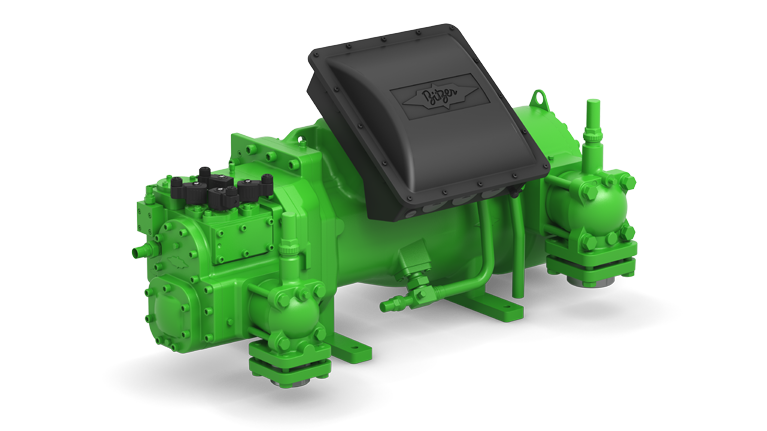

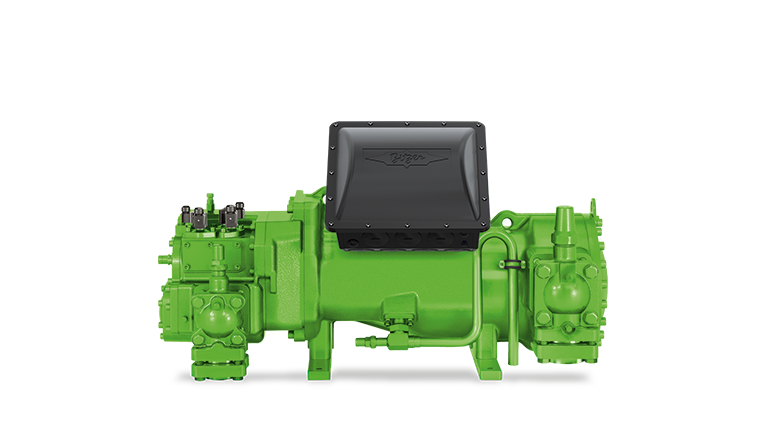

Bitzer HSK5343-30 Semi-Hermetic Screw Compressor

🔧

Technical Specifications

• Model: HSK5343-30

• Refrigerant: R404A (compatible with R134a, R507A, R407A/F, R448A, R449A, R1234yf, R1234ze, R515B)

• Cooling Capacity: 41.0 kW (at -10°C evaporating / 45°C condensing)

• Power Input: 23.8 kW

• COP (Efficiency): 1.72

• Displacement:

  • 50Hz: 84 m³/h

  • 60Hz: 101 m³/h

• Voltage: 380–415V / 3 Phase / 50Hz

• Motor Power: Up to 33.1 kW

• Max Operating Current: 52.0 A

• Weight: Approx. 170 kg

• Suction Connection: 54 mm – 2 1/8”

• Discharge Connection: 42 mm – 1 5/8”

• Sound Pressure Level @ 1m: 74 dB(A)

💡

Key Features

✅ German Engineering Excellence – Precision-engineered for long-lasting, reliable performance in critical industrial applications.

✅ Robust Design – Built for continuous operation with IP54 motor protection and optional IP66 upgrades.

✅ Flexible Refrigerant Use – Compatible with a wide range of modern and eco-friendly refrigerants.

✅ Advanced Monitoring & Control – Supports the Bitzer IQ Module for enhanced diagnostics and system control.

✅ Stepless Capacity Control – Smooth modulation from 100% to 70% load for energy efficiency.

✅ Integrated Oil Cooling – External oil cooler and separator ensure optimal lubrication and extended compressor life.

📦

Applications

• Industrial air-conditioning systems

• Food processing and cold storage

• Large commercial refrigeration plants

• Process cooling in manufacturing

• Marine and offshore refrigeration

🏭

German Engineering – Built to Last

As part of the Bitzer HSK series, this compressor combines German precision, durability, and innovation for reliable cooling even under the most demanding operating conditions.

🚚

Shipping & Availability

✅ Standard Voltage: 380–415V / 3 Phase / 50Hz

✅ Global Shipping: Export-grade packaging ensures safe worldwide delivery.

✅ Lead Time: Standard 50Hz electrical version is usually in stock. For special electrical configurations (60Hz or other voltages), please allow an additional 2–3 weeks.
