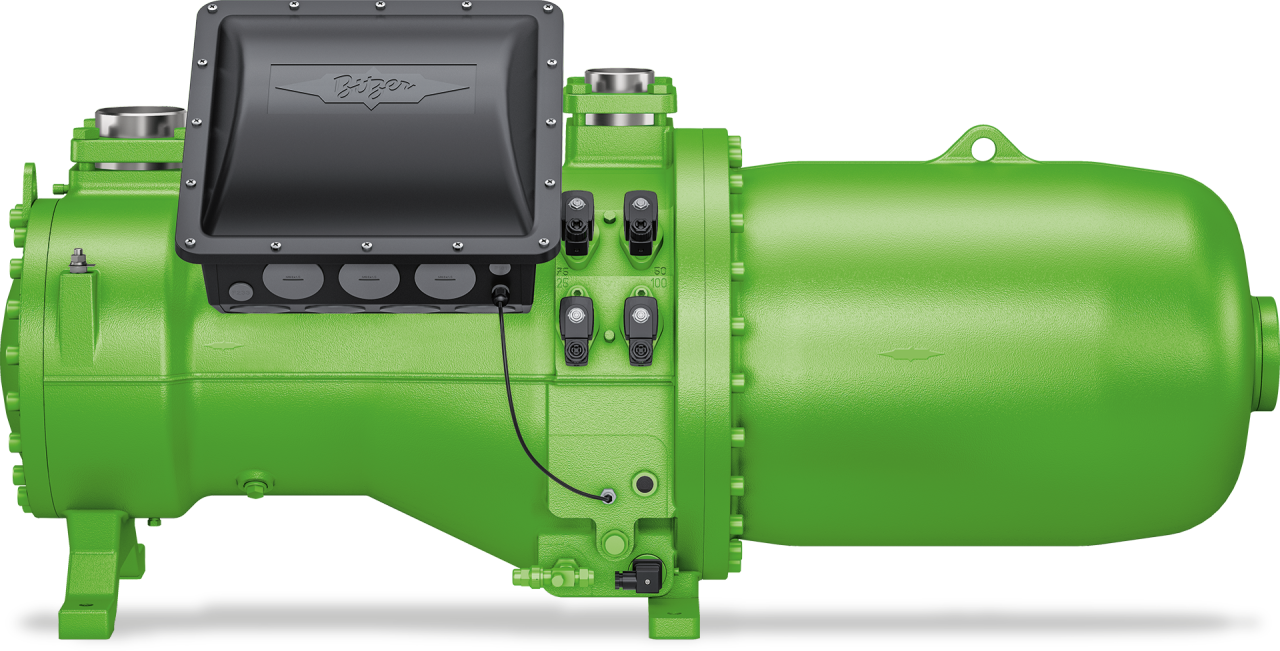

Bitzer CSH9573-240Y Compact Screw Compressor

⚙️ Technical Specifications

• Model: CSH9573-240Y-40D

• Refrigerant: R134a (multi-refrigerant compatible, see list above)

• Cooling Capacity: 332 kW @ 0 °C SST / 50 °C SDT

• Power Input: 115.3 kW

• COP / EER: 2.88

• Operating Voltage: 380–415V / 3Ph / 50Hz (standard)

• Displacement: 700 m³/h (50 Hz) | 845 m³/h (60 Hz – custom order)

• Max Operating Current: 420 A

• Starting Current: 650 A (Y) / 2029 A (D)

• Max. Power Input: 255 kW

• Max. Pressure: 19 bar (LP) / 28 bar (HP)

• Weight: 1320 kg

✅ Key Benefits

• Very high cooling output of 332 kW for heavy-duty projects

• Excellent efficiency with COP of 2.88 at standard conditions

• Flexible step and infinite capacity control (100–75–50–25% and 100→25%)

• Integrated oil separator, filter, heater, and discharge gas temperature sensor

• Compatible with both traditional HFC and new-generation low-GWP HFO refrigerants

• Built for long service life with ASERCOM-certified performance

📦 Applications

• Industrial chillers and large process cooling plants

• District cooling networks

• Centralized HVAC for commercial and industrial facilities

• Heat pump systems

• Cold storage and heavy-duty refrigeration

🚚 Shipping & Availability

• Condition: Brand new, genuine Bitzer

• Packaging: Original factory packaging

• Availability:

  • 50 Hz version → Standard supply

  • 60 Hz version → Custom order (approx. 3–4 weeks lead time)

• Shipping: Worldwide delivery available
