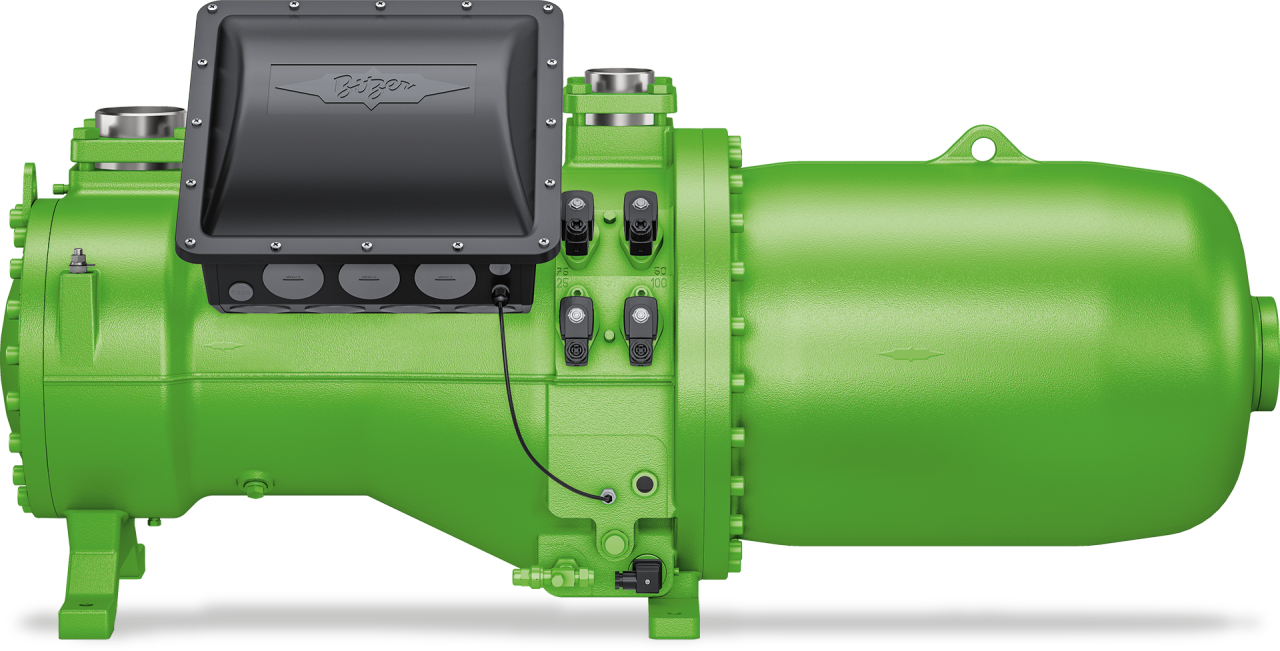

Bitzer CSH8563-90Y Compact Screw Compressor

⚙️ Technical Specifications

• Model: CSH8563-90Y-40P

• Refrigerant: R134a (multi-refrigerant compatible, see list above)

• Cooling Capacity: 165.0 kW @ 0 °C SST / 50 °C SDT

• Power Input: 59.7 kW

• COP / EER: 2.77

• Operating Voltage: 380–415V / 3Ph / 50Hz (standard)

• Displacement: 359 m³/h (50 Hz) | 433 m³/h (60 Hz – custom order)

• Max Operating Current: 155 A

• Starting Current: 439 A (DOL) / 675 A (DD)

• Max. Pressure: 19 bar (LP) / 28 bar (HP)

• Weight: 840 kg

✅ Key Benefits

• High-capacity compressor delivering 165 kW cooling

• Strong performance with step and infinite capacity control (100–75–50–25% and 100→25%)

• Integrated oil separator, filter, heater, and discharge gas temperature sensor

• Wide refrigerant compatibility including HFO low-GWP blends

• Heavy-duty design with ASERCOM-certified performance

📦 Applications

• Industrial chillers and large process cooling systems

• District cooling networks

• Air conditioning for commercial and industrial facilities

• Heat pump installations

• Cold storage and industrial refrigeration

🚚 Shipping & Availability

• Condition: Brand new, genuine Bitzer

• Packaging: Original factory packaging

• Availability:

  • 50 Hz version → Standard supply

  • 60 Hz version → Custom order (approx. 3–4 weeks lead time)

• Shipping: Worldwide delivery available
