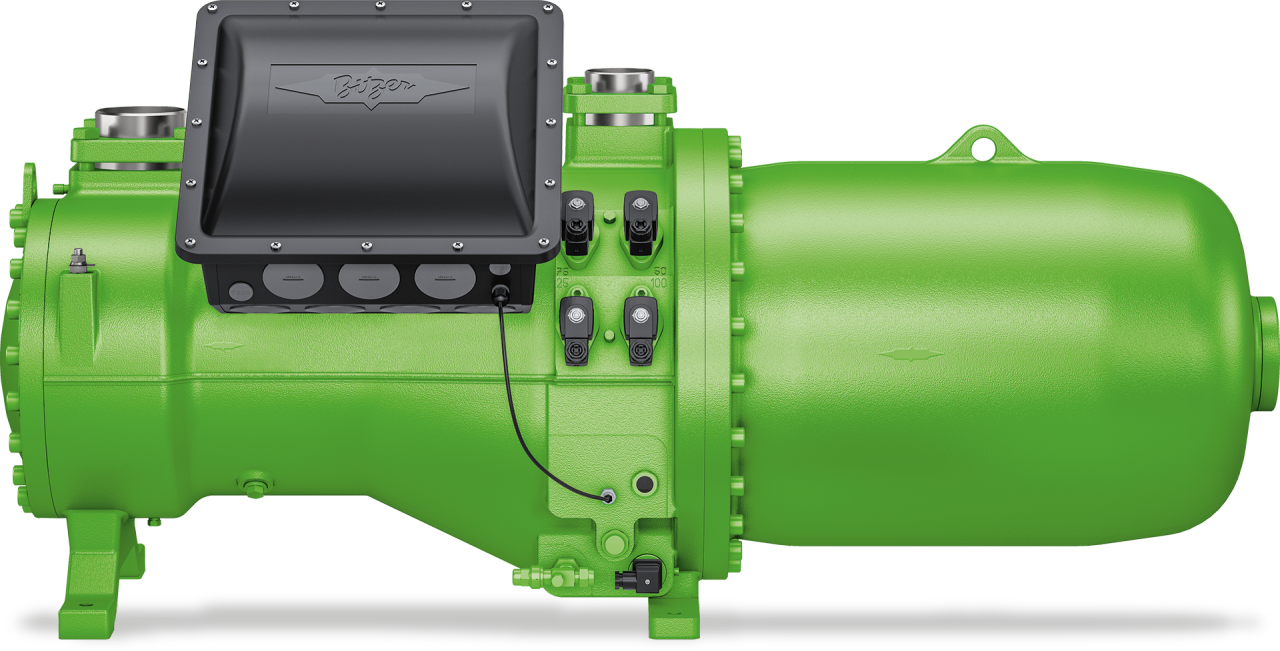

Bitzer CSH8563-125Y Compact Screw Compressor

⚙️ Technical Specifications

• Model: CSH8563-125Y-40P

• Refrigerant: R134a (multi-refrigerant compatible, see list above)

• Cooling Capacity: 168.4 kW @ 0 °C SST / 50 °C SDT

• Power Input: 60.2 kW

• COP / EER: 2.80

• Operating Voltage: 380–415V / 3Ph / 50Hz (standard)

• Displacement: 359 m³/h (50 Hz) | 433 m³/h (60 Hz – custom order)

• Max Operating Current: 216 A

• Starting Current: 612 A (DOL) / 943 A (DD)

• Max. Pressure: 19 bar (LP) / 28 bar (HP)

• Weight: 860 kg

✅ Key Benefits

• High-capacity screw compressor delivering 168 kW cooling output

• Flexible part-load operation with step and infinite capacity control (100–75–50–25% and 100→25%)

• Integrated oil separator, heater, filter, and discharge temperature sensor

• Supports both traditional HFC and modern low-GWP HFO refrigerants

• Durable design with ASERCOM-certified performance

📦 Applications

• Industrial chillers and large-scale process cooling

• District cooling and central HVAC systems

• Air conditioning for commercial and industrial buildings

• Heat pump projects

• Cold storage and heavy-duty refrigeration

🚚 Shipping & Availability

• Condition: Brand new, genuine Bitzer

• Packaging: Original factory packaging

• Availability:

  • 50 Hz version → Standard supply

  • 60 Hz version → Custom order (approx. 3–4 weeks lead time)

• Shipping: Worldwide delivery available
