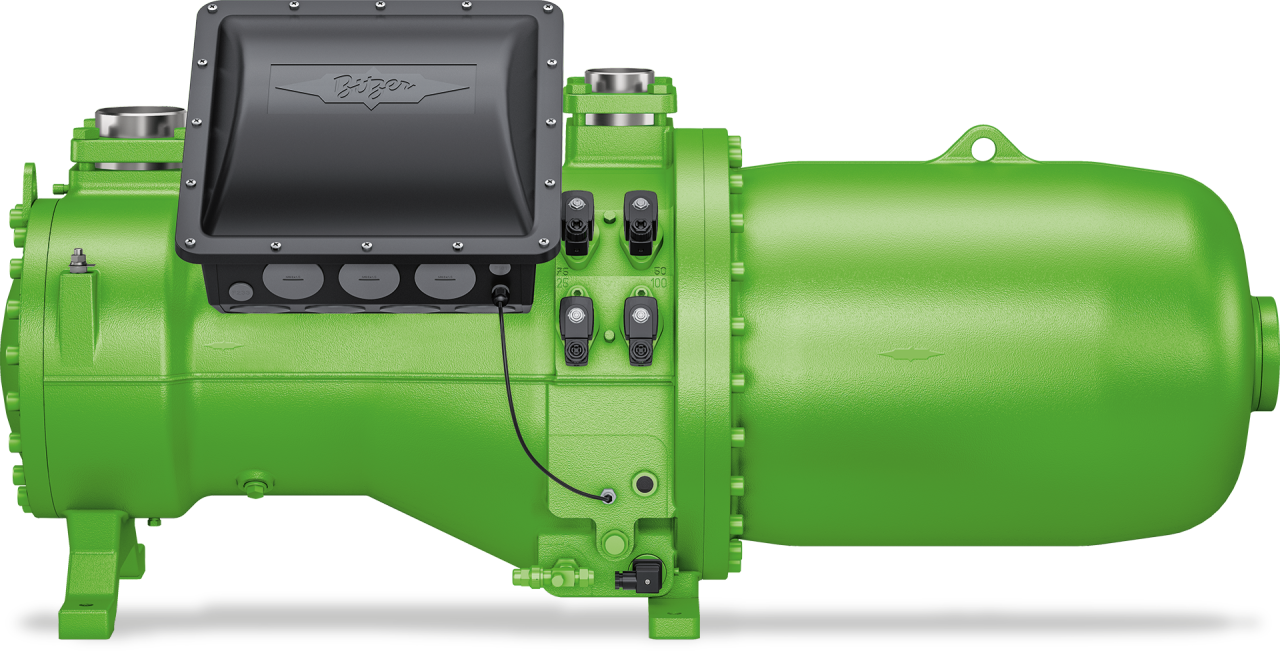

Bitzer CSH8553-110Y Compact Screw Compressor

⚙️ Technical Specifications

• Model: CSH8553-110Y-40P

• Refrigerant: R134a (multi-refrigerant compatible, see list above)

• Cooling Capacity: 147.8 kW @ 0 °C SST / 50 °C SDT

• Power Input: 52.8 kW

• COP / EER: 2.80

• Operating Voltage: 380–415V / 3Ph / 50Hz (standard)

• Displacement: 315 m³/h (50 Hz) | 380 m³/h (60 Hz – custom order)

• Max Operating Current: 185 A

• Starting Current: 520 A (DOL) / 801 A (DD)

• Max. Pressure: 19 bar (LP) / 28 bar (HP)

• Weight: 850 kg

✅ Key Benefits

• High-capacity compressor with strong performance at 147.8 kW

• Energy-efficient with step and infinite capacity control (100–75–50–25% and 100→25%)

• Integrated oil separator, heater, filter, and discharge temperature sensor

• Wide refrigerant compatibility, including HFO low-GWP blends

• Proven Bitzer engineering, ASERCOM-certified performance

📦 Applications

• Industrial process cooling and chillers

• District cooling systems

• Centralized HVAC for commercial and industrial buildings

• Heat pump applications

• Cold storage and large refrigeration plants

🚚 Shipping & Availability

• Condition: Brand new, genuine Bitzer

• Packaging: Original factory packaging

• Availability:

  • 50 Hz version → Standard supply

  • 60 Hz version → Custom order (approx. 3–4 weeks lead time)

• Shipping: Worldwide delivery available
