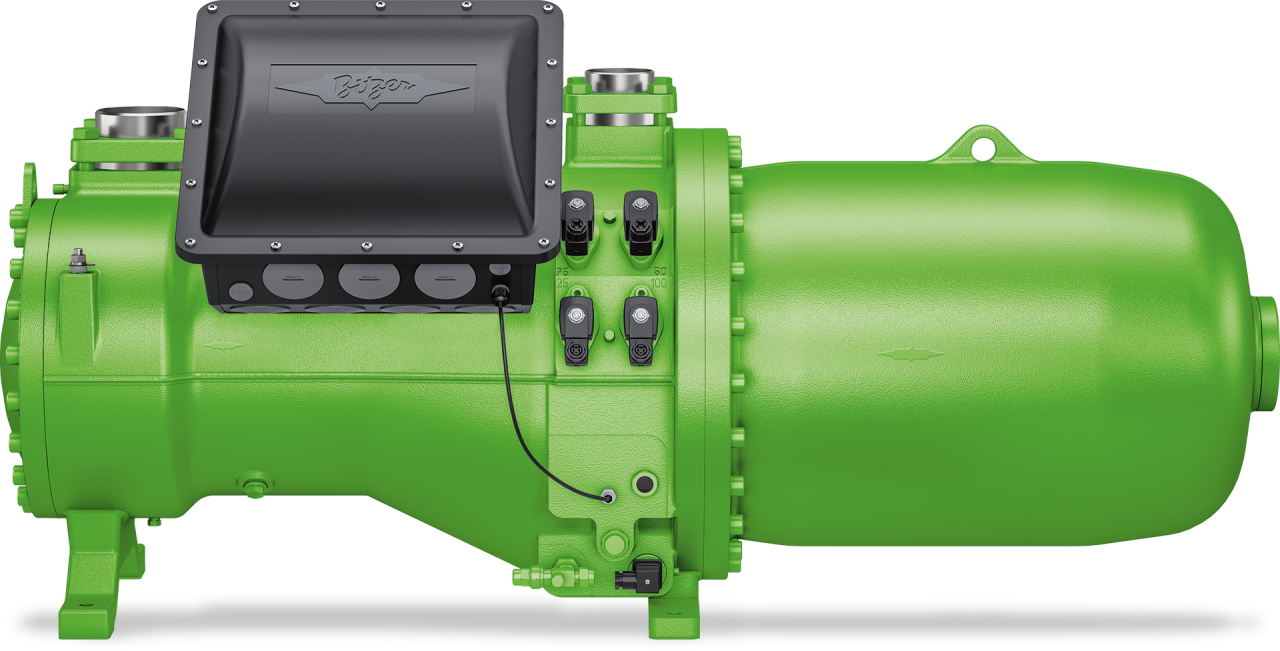

Bitzer CSH7583-100Y Compact Screw Compressor

⚙️ Technical Specifications

• Model: CSH7583-100Y-40P

• Refrigerant: R134a (multi-refrigerant compatible, see list above)

• Cooling Capacity: 137.1 kW @ 0 °C SST / 50 °C SDT

• Power Input: 49.6 kW

• COP / EER: 2.76

• Operating Voltage: 380–415V / 3Ph / 50Hz (standard)

• Displacement: 295 m³/h (50 Hz) | 356 m³/h (60 Hz – custom order)

• Max Operating Current: 170 A

• Starting Current: 479 A (DOL) / 790 A (DD)

• Max. Pressure: 19 bar (LP) / 28 bar (HP)

• Weight: 540 kg

✅ Key Benefits

• High-capacity compressor for heavy-duty industrial cooling

• Optimized efficiency with flexible step and infinite capacity control (100–75–50–25% and 100→25%)

• Integrated oil separator, oil filter, heater, and discharge temperature sensor for reliability

• Supports a wide range of refrigerants, including natural replacements and HFO blends

• Engineered for smooth operation, long service life, and ASERCOM-certified performance

📦 Applications

• Industrial chillers and process cooling systems

• Large-scale HVAC and district cooling networks

• Air conditioning for commercial and industrial buildings

• Heat pump installations

• Cold storage and heavy-duty refrigeration

🚚 Shipping & Availability

• Condition: Brand new, genuine Bitzer

• Packaging: Original factory packaging

• Availability:

  • 50 Hz version → Standard supply

  • 60 Hz version → Custom order (approx. 3–4 weeks lead time)

• Shipping: Worldwide delivery available
