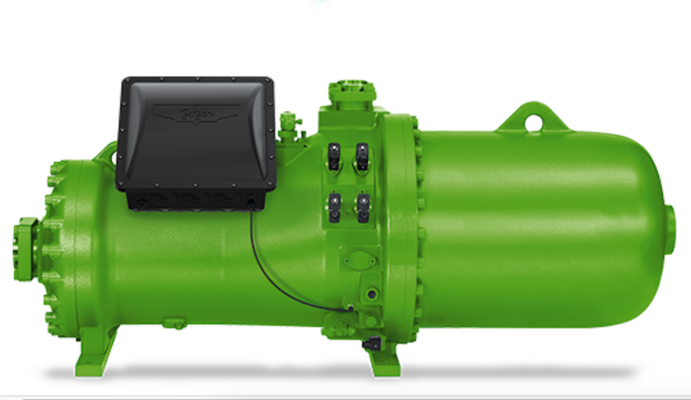

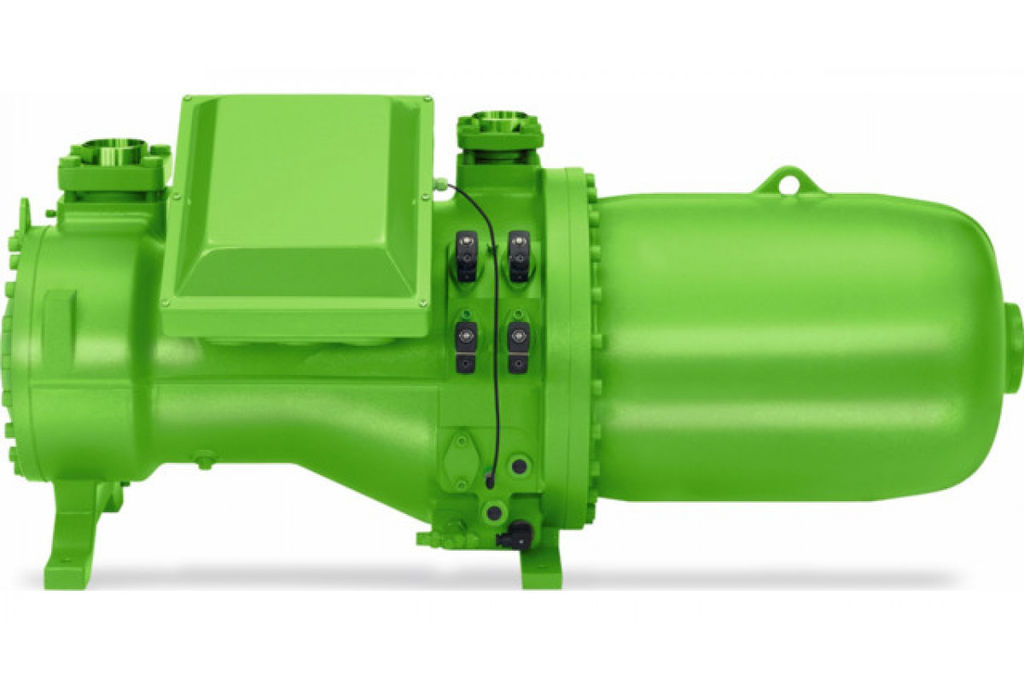

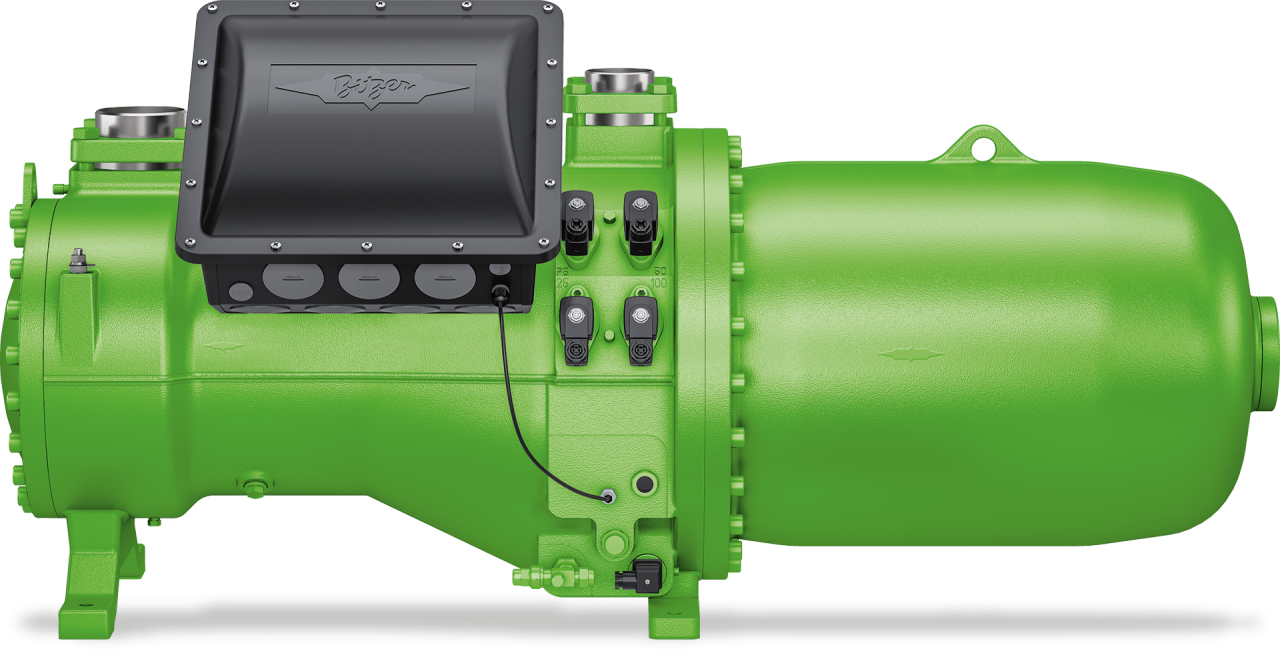

Bitzer CSH6563-60Y Compact Screw Compressor

⚙️ Technical Specifications

• Model: CSH6563-60Y

• Refrigerant: R134a (also compatible with R1234yf, R1234ze(E), R450A, R513A, R515B, R407C, R404A, R507A, R407A, R407F)

• Cooling Capacity: 76.3 kW @ 0 °C SST / 50 °C SDT

• Power Input: 28.0 kW

• COP / EER: 2.73

• Operating Voltage: 380–415V / 3Ph / 50Hz (standard)

• Displacement: 170 m³/h (50 Hz) | 205 m³/h (60 Hz – custom order)

• Running Current (400V): 52.9 A

• Max. Operating Current: 108.0 A

• Starting Current: 269 A (DOL) / 508 A (DD)

• Max. Power Input: 65.0 kW

• Max. Pressure: 19 bar (LP) / 28 bar (HP)

• Connections: Suction 54 mm (2 1/8”), Discharge 42 mm (1 5/8”)

• Weight: 325 kg

⸻

✅ Key Benefits

• High-capacity compressor (76.3 kW) with excellent efficiency

• 4-step or infinitely variable part-load control (100–25%)

• Wide refrigerant compatibility, including eco-friendly HFOs

• Integrated oil separator, oil heater, and discharge gas sensor

• Compact, semi-hermetic design for easier servicing and installation

• ASERCOM-certified performance for reliability and compliance

⸻

📦 Applications

• Industrial and commercial chillers

• Process cooling plants

• Large-scale air-conditioning projects

• Industrial heat pumps

⸻

🚚 Shipping & Availability

• Condition: Brand new, genuine Bitzer

• Packaging: Original factory packaging

• Availability:

  • 50 Hz version → Standard supply

  • **60 Hz version → Custom build, approx.
