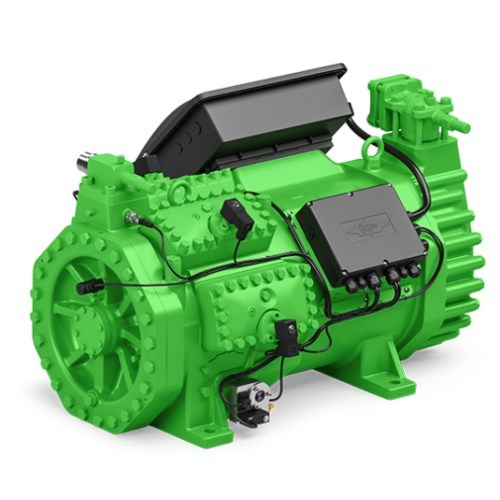

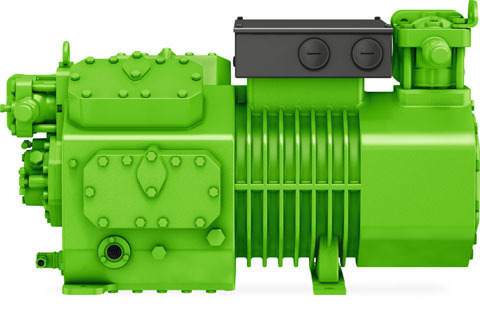

Bitzer 8GE-60Y Semi-Hermetic Reciprocating Compressor

🔧 Technical Specifications

• Model: 8GE-60Y-40P
• Cooling Capacity (R404A @ -10°C / 45°C): 90.5 kW
• Power Input: 42.8 kW
• COP (Efficiency): 2.12
• Displacement (50Hz): 185 m³/h
• Displacement (60Hz): 222 m³/h
• Cylinders / Bore / Stroke: 8 × 75 mm × 60 mm
• Weight: 352 kg
• Voltage Range: 380–420V / 3 Phase / 50Hz
• Max Operating Current: 113.0 A
• Starting Current (Rotor Locked): 349.0 A (Y) / 513.0 A (YY)
• Max Power Input: 63.0 kW

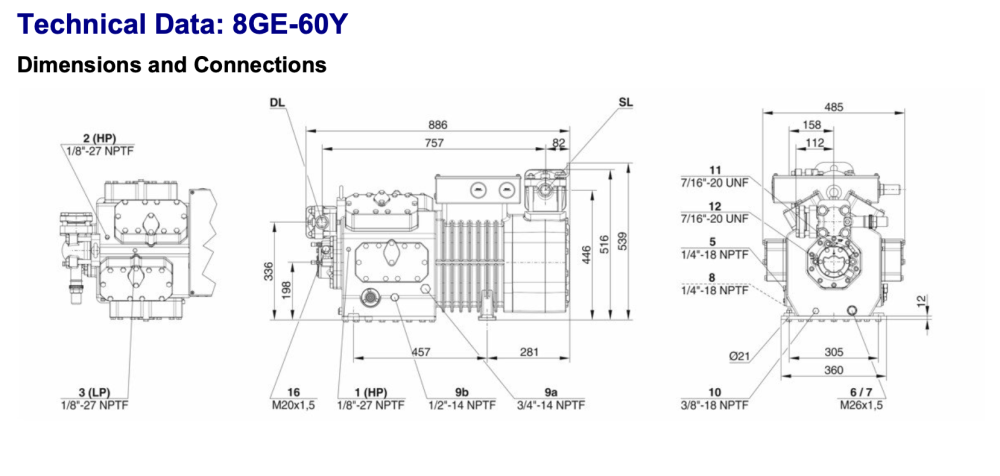

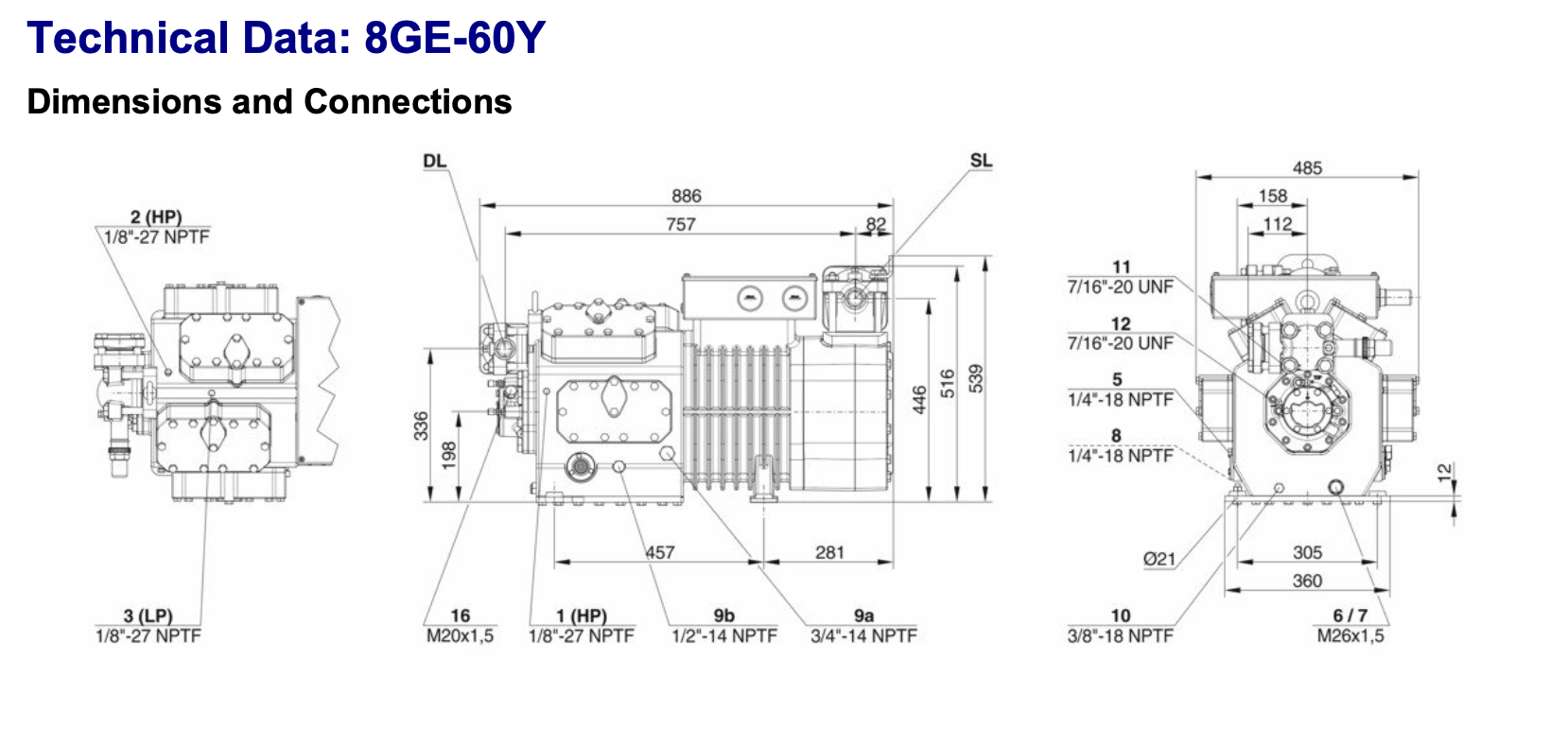

• Suction Connection: 76 mm – 3 1/8”
• Discharge Connection: 42 mm – 1 5/8”
• Discharge Temperature: 95.0°C
• Sound Pressure Level @ 1m: 78.5 dB(A)

🛢 Oil & Refrigerant Compatibility

• Standard Oil Charge: 5.0 dm³ – BSE32
• Compatible Refrigerants:

• R404A, R507A, R407A/F → BSE32
• R134a >70°C → BSE55
• R22 → B5.2
• R1234yf → BSE32 / BSE55
• R1234ze → BSE55 / BSE85K
• R454C, R455A → BSE32
• R515B → BSE55 / BSE85K

💡 Why Choose the 8GE-60Y

✔️ Extremely high cooling output for large-scale refrigeration plants

✔️ Rugged 8-cylinder design for continuous-duty performance

✔️ Factory-installed suction/discharge valves and vibration dampers

✔️ IP54 motor enclosure (optional IP66 upgrade available)

✔️ Capacity control options: 100–75–50% or infinite 100–50%

✔️ Fully compatible with Bitzer IQ Module (CM-RC-02) for Modbus, Bluetooth, and data logging

📦 Recommended Accessories

• Receiver: Bitzer F1602N

• Volume: 160.0 L
• Max R404A Charge: 153.8 kg
• Connections: 2 1/8” suction | 1 5/8” discharge

• IQ Module: CM-RC-02

• Features: Bluetooth, Modbus, compressor monitoring
• IP66 | Voltage: 115–230V
• Real-time clock and remote diagnostics supported

🚚 Shipping & Availability

• ✅ Suitable for 380–420V / 50Hz
• ⚙️ 60Hz version available on request in 3–4 weeks
• 🌍 Export-grade packaging and global shipping supported
