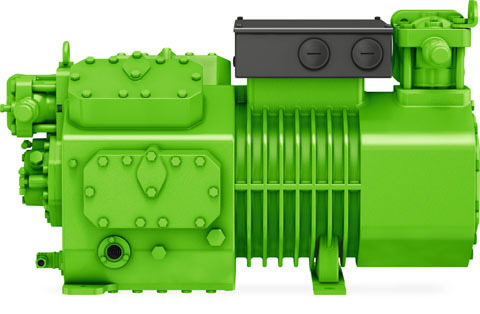

Bitzer 8GE-50Y Semi-Hermetic Reciprocating Compressor

🔧

Technical Specifications

• Model: 8GE-50Y-40P

• Refrigerant: R134a

• Evaporator Temperature: -10°C

• Condensing Temperature: 45°C

• Cooling Capacity: 52.5 kW

• Power Input: 22.4 kW

• COP (Efficiency): 2.34

• Displacement:

  • 50Hz: 185 m³/h

  • 60Hz: 222 m³/h

• Cylinders / Bore / Stroke: 8 × 75 mm × 60 mm

• Weight: 342 kg

• Voltage Range: 380–420V / 3-Phase / 50Hz

• Max Operating Current: 92.0 A

• Starting Current (Rotor Locked): 298.0 A (Y) / 438.0 A (YY)

• Max Power Input: 51.0 kW

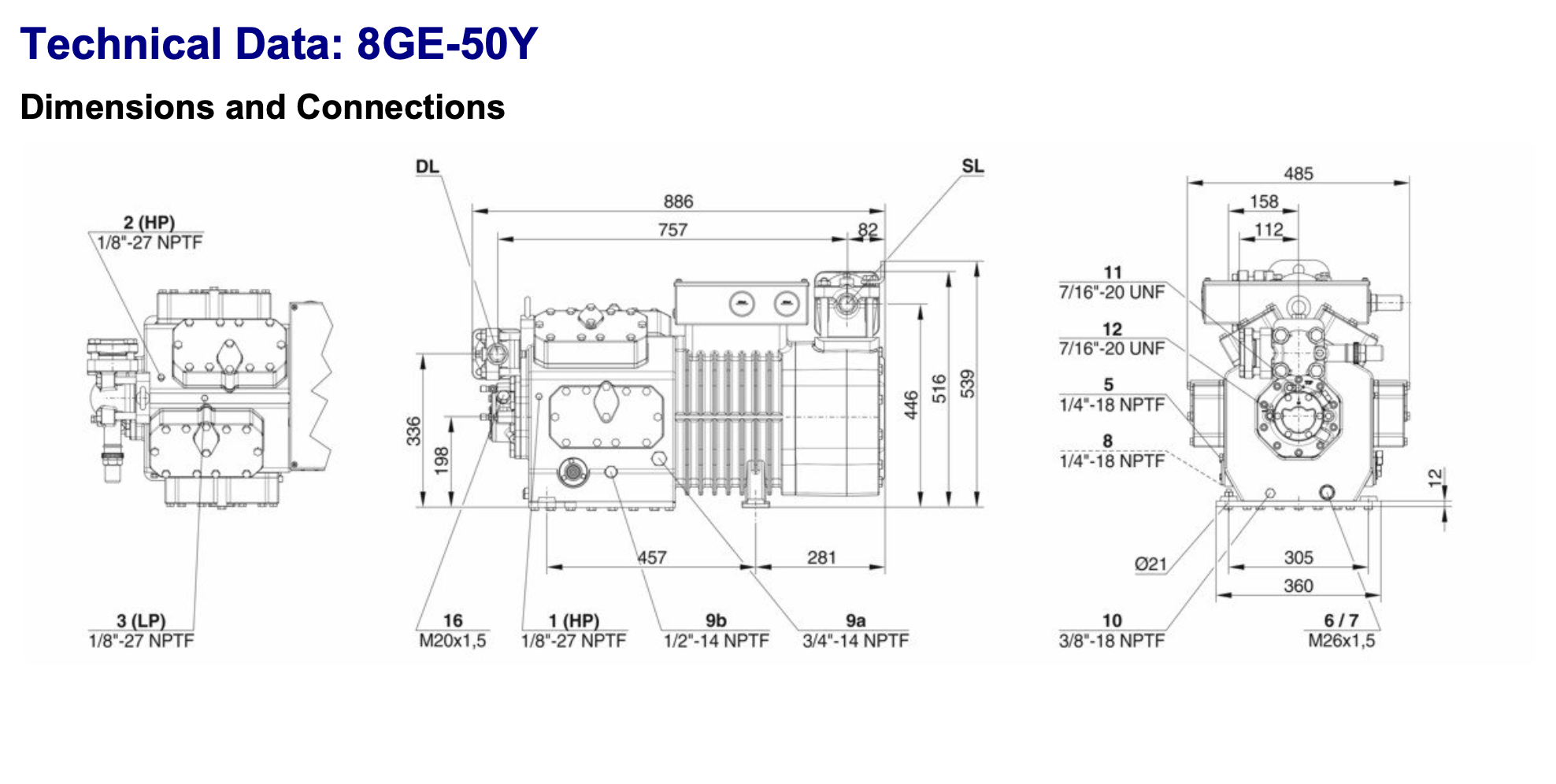

• Suction Connection: 76 mm – 3 1/8”

• Discharge Connection: 42 mm – 1 5/8”

• Discharge Temperature: 100.7°C

• Sound Pressure Level @ 1m: 78.5 dB(A)

🛢

Oil & Refrigerant Compatibility

• Oil Charge: 5.0 dm³ – BSE32 (Standard)

• Compatible Refrigerants:

  • R134a, R404A, R407A/F, R507A → BSE32

  • R134a >70°C → BSE55

  • R22 → B5.2

  • R1234yf → BSE32 / BSE55

  • R1234ze → BSE55 / BSE85K

  • R454C, R455A → BSE32

  • R515B → BSE55 / BSE85K

💡

Why Choose the 8GE-50Y?

✔️ High-capacity compressor for medium and low temperature applications

✔️ Reliable 24/7 operation in harsh environments

✔️ Compatible with the Bitzer IQ Module CM-RC-02 for smart monitoring

✔️ Optional capacity control: 100–75–50% or infinitely variable 100–50%

✔️ Available optional accessories: oil heater, discharge temp sensor, oil pressure monitoring

✔️ IP54 motor protection (IP66 optional)

📦

Compatible Accessories

Liquid Receiver: F732N

• Volume: 73 L

• Max R134a Charge: 80.5 kg

• Inlet: 35 mm – 1 3/8”

• Outlet: 28 mm – 1 1/8”

• Max Pressure: 33 bar

• Max Operating Temp: 120°C

IQ Module: CM-RC-02

• Features: Bluetooth, Modbus, compressor logging

• Operating Voltage: 115–230V

• Enclosure Class: IP66

• Functions: Compressor start, safety monitoring, diagnostics

🚚

Shipping & Availability

✅ Standard version available for 380–420V / 50Hz

⚙️ 60Hz configuration available in 3–4 weeks

🌍 Global delivery with export-grade packaging
