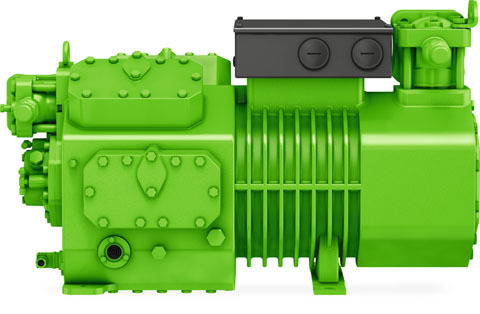

Bitzer 8FE-60Y-40P Semi-Hermetic Reciprocating Compressor

🔧

Technical Specifications

• Model: 8FE-60Y-40P

• Refrigerant: R134a

• Evaporating Temp: -10°C

• Condensing Temp: 45°C

• Cooling Capacity: 62.2 kW

• Power Input: 26.4 kW

• COP (Efficiency): 2.35

• Displacement:

  • 50Hz: 221 m³/h

  • 60Hz: 266.7 m³/h

• Cylinders / Bore / Stroke: 8 × 82 mm × 60 mm

• Weight: 361 kg

• Voltage: 380–420V / 3-Phase / 50Hz

• Max Operating Current: 113.0 A

• Starting Current (Rotor Locked): 349.0 A (Y) / 513.0 A (YY)

• Max Power Input: 63.0 kW

• Suction Connection: 76 mm – 3 1/8”

• Discharge Connection: 54 mm – 2 1/8”

• Discharge Temp: 100.5°C

• Sound Pressure Level @ 1m (-10°C / 45°C): 81.0 dB(A)

🛢️

Oil & Refrigerant Compatibility

• Oil Charge: 5.0 dm³ – BSE32 (Standard)

• Compatible Refrigerants:

  R134a, R404A, R507A, R407A/F → BSE32

  R134a >70°C → BSE55

  R22 → B5.2

  R1234yf → BSE32 / BSE55

  R1234ze → BSE55 / BSE85K

  R454C, R455A → BSE32

  R515B → BSE55 / BSE85K

💡

Why Choose the 8FE-60Y?

✔️ One of the highest cooling capacity compressors in the Bitzer lineup

✔️ Designed for 24/7 operation in extreme industrial conditions

✔️ Supports advanced monitoring via the Bitzer IQ Module CM-RC-02

✔️ Optional capacity control: 100–75–50% or infinitely variable 100–50%

✔️ Optional accessories: oil heater, discharge temp sensor, oil pressure monitoring

✔️ Built with IP54 motor protection (IP66 optional)

📦

Compatible Accessories

Liquid Receiver: F902N

• Volume: 89 L

• Max Refrigerant Charge (R134a): 98.2 kg

• Inlet: 42 mm – 1 5/8”

• Outlet: 35 mm – 1 3/8”

• Max Pressure: 33 bar

• Max Operating Temp: 120°C

IQ Module: CM-RC-02

• Features: Bluetooth, Modbus, compressor logging

• Voltage: 115–230V

• Enclosure Class: IP66

• Functions: Compressor start, safety monitoring, diagnostics

🚚

Shipping & Availability

✅ Standard version available for 380–420V / 50Hz

⚙️ 60Hz configuration available in 3–4 weeks

🌍 Global delivery with export-grade packaging
