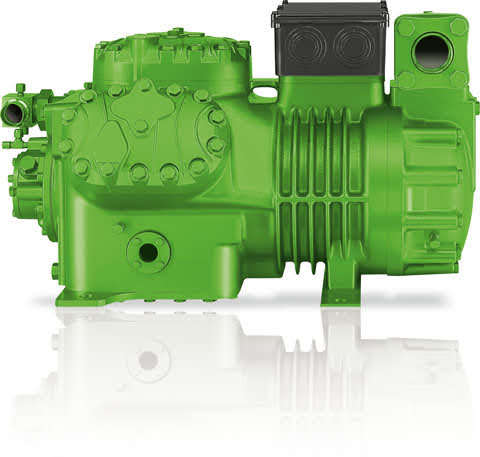

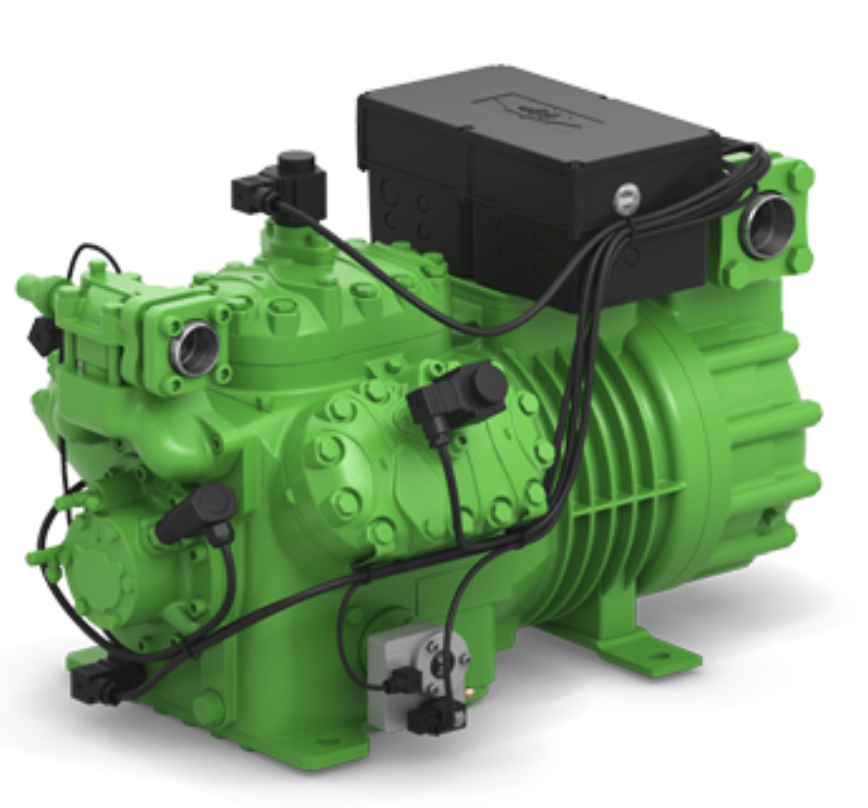

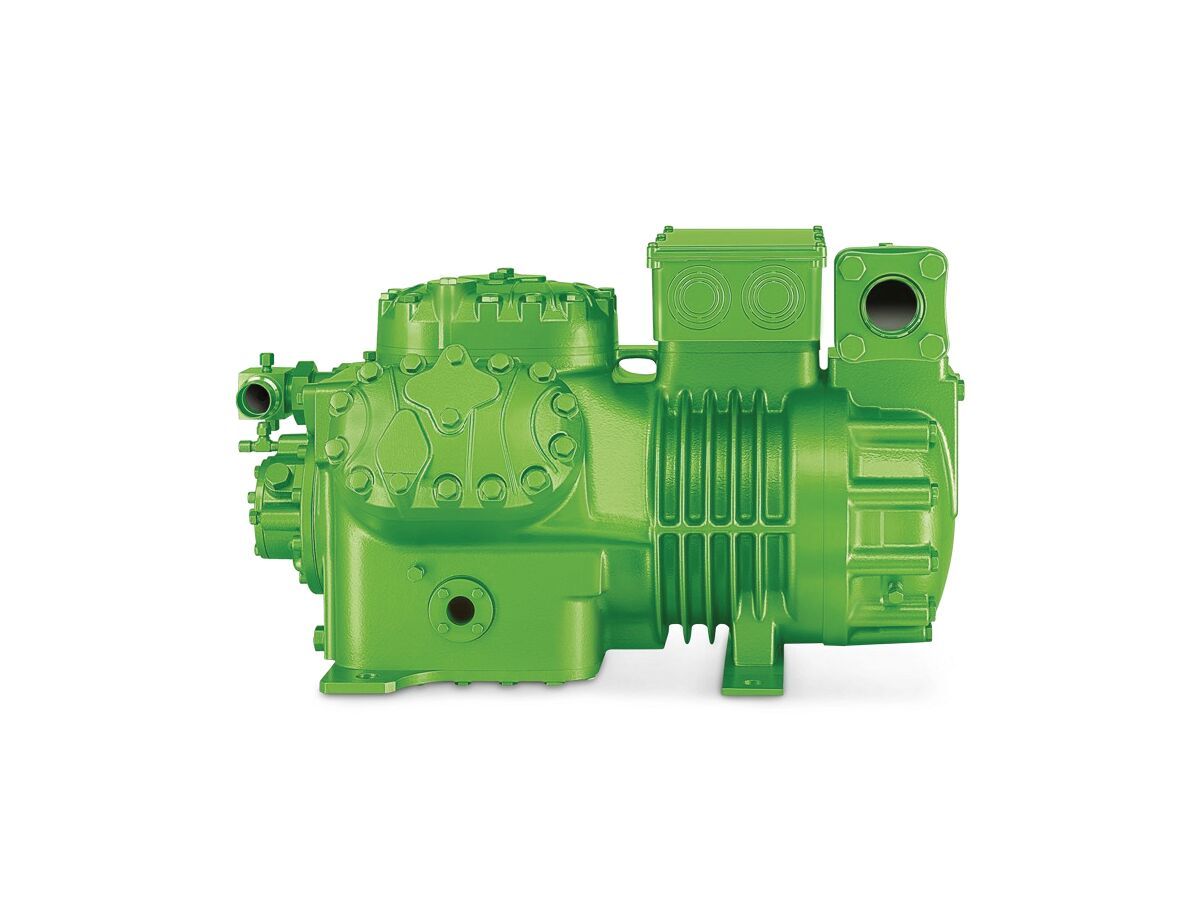

Bitzer 6JE-33Y Semi-Hermetic Reciprocating Compressor

🔧 Technical Specifications

• Model: 6JE-33Y-40P
• Cooling Capacity (R404A @ -10°C / 45°C): 47.7 kW
• Power Input: 20.0 kW
• COP (Efficiency): 2.38
• Displacement (50Hz): 95.3 m³/h
• Displacement (60Hz): 115.02 m³/h
• Cylinders / Bore / Stroke: 6 × 65 mm × 55 mm
• Weight: 244 kg
• Voltage Range: 380–420V / 3 Phase / 50Hz
• Max Operating Current: 53.2 A
• Starting Current (Rotor Locked): 165.0 A (Y) / 275.0 A (YY)
• Max Power Input: 30.0 kW

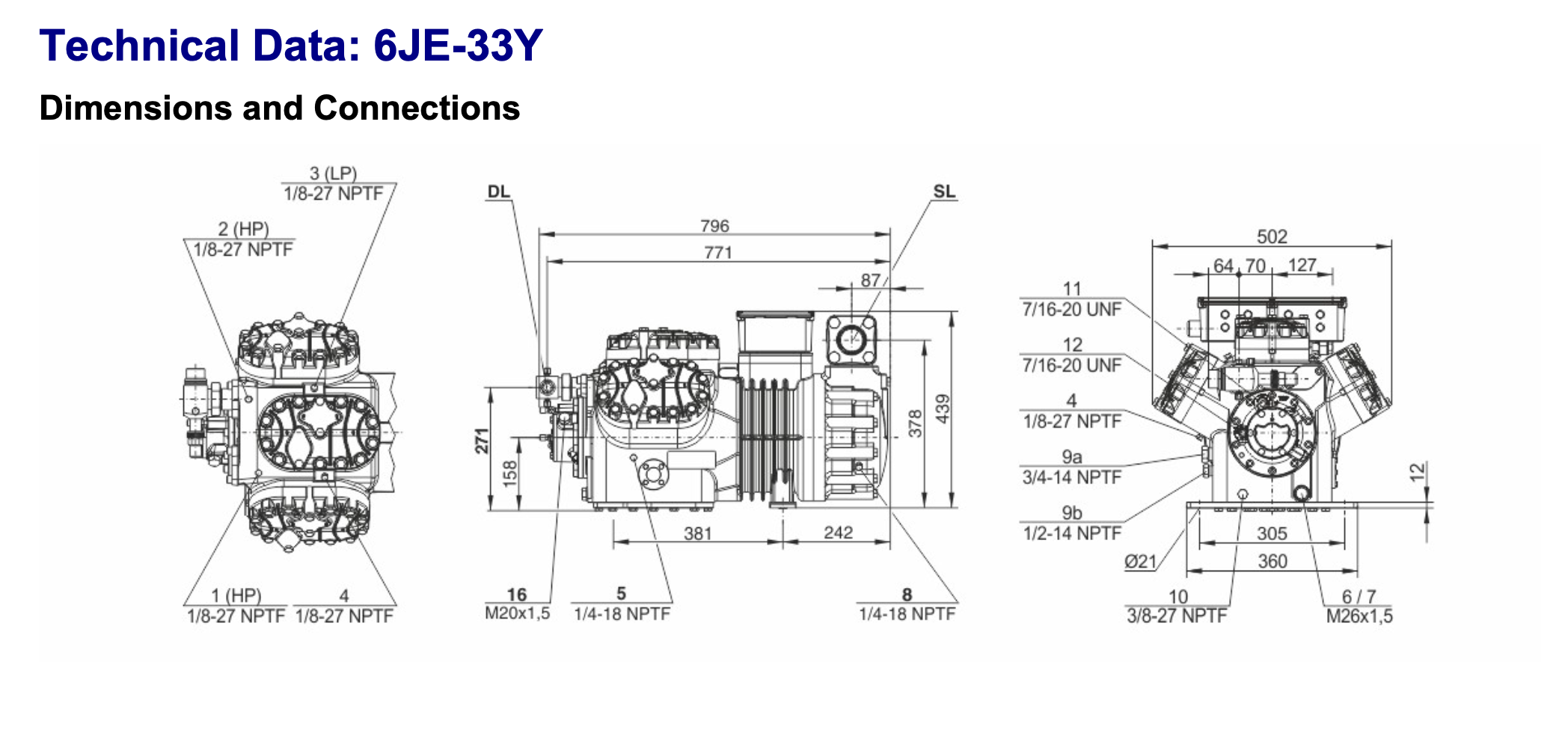

• Suction Connection: 54 mm – 2 1/8”
• Discharge Connection: 35 mm – 1 3/8”
• Discharge Temperature: 89.6°C
• Sound Pressure Level: 71.3 dB(A) @ -10°C / 45°C

🛢 Oil & Refrigerant Compatibility

• Standard Oil Charge: 4.75 dm³ – BSE32
• Compatible Refrigerants:

• R404A, R507A, R407A/F → BSE32
• R134a (>70°C) → BSE55
• R22 → B5.2
• R1234yf → BSE32 / BSE55
• R1234ze → BSE55 / BSE85K
• R454C, R455A → BSE32
• R515B → BSE55 / BSE85K

💡 Why Choose the 6JE-33Y

✔️ High-performance 6-cylinder design for continuous-duty operation

✔️ Excellent efficiency (COP 2.38) and low vibration

✔️ Factory-equipped with suction/discharge shut-off valves and vibration dampers

✔️ Supports capacity control (100-66-33% or 100-10% optional)

✔️ Compatible with IQ Module CM-RC-02 for Modbus, Bluetooth, and logging

'

📦 Compatible Accessories

• Receiver: Bitzer F1052T

• Volume: 105 L
• Max R404A Charge: 100.9 kg

• IQ Module: CM-RC-02

• Interfaces: Modbus + Bluetooth
• Features: Real-time logging, diagnostics, and system monitoring
• Enclosure: IP66 | Voltage: 115–230V

🚚 Shipping & Availability

• ✅ Ready for 380–420V / 50Hz electrical systems
• ⚙️ 60Hz models available with 3–4 week lead time
• 🌍 Global export packaging and delivery supported
