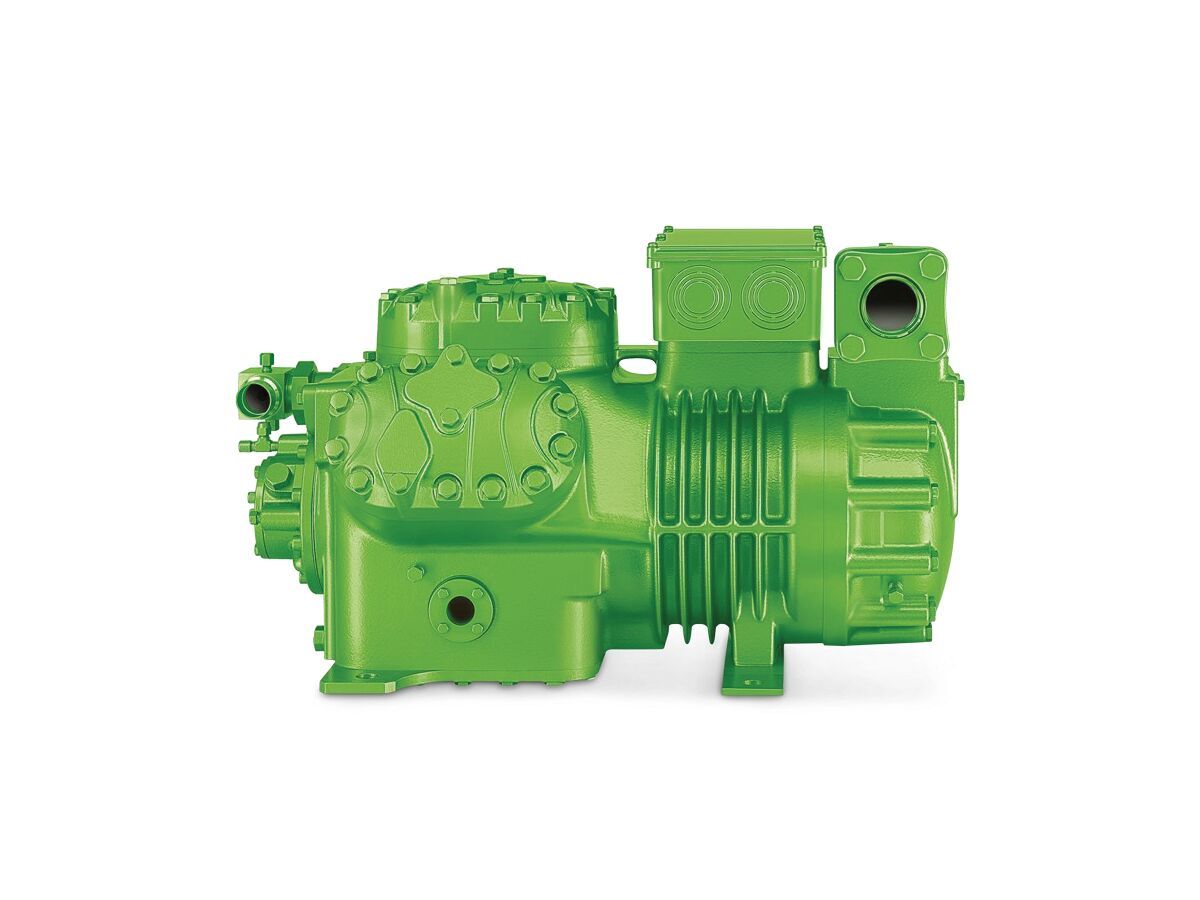

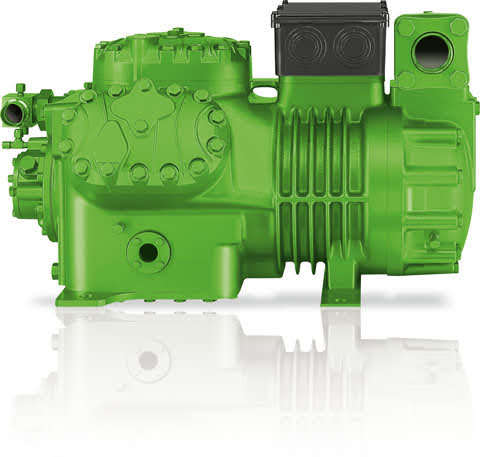

Bitzer 6JE-25Y Semi-Hermetic Reciprocating Compressor

🔧 Technical Specifications

• Model: 6JE-25Y-40P
• Cooling Capacity (R404A @ -10°C / 45°C): 49.3 kW
• Power Input: 20.9 kW
• COP (Efficiency): 2.36
• Displacement (50Hz): 95.3 m³/h
• Displacement (60Hz): 115.02 m³/h
• Cylinders / Bore / Stroke: 6 × 65 mm × 55 mm
• Weight: 234 kg
• Voltage Range: 380–420V / 3 Phase / 50Hz
• Max Operating Current: 46.4 A
• Starting Current (Rotor Locked): 141.0 A (Y) / 233.0 A (YY)
• Max Power Input: 27.0 kW

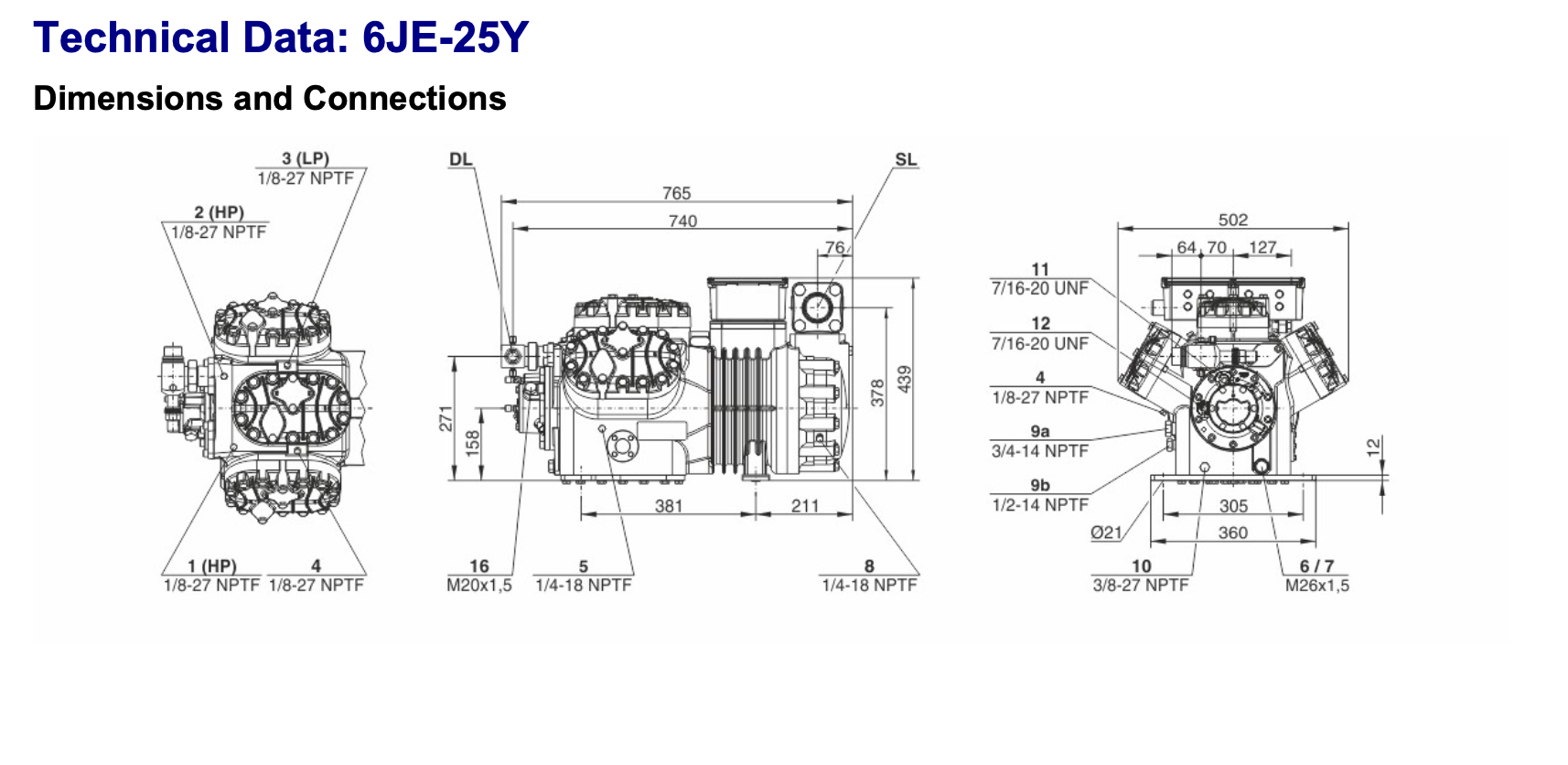

• Suction Connection: 54 mm – 2 1/8”
• Discharge Connection: 35 mm – 1 3/8”
• Discharge Temperature: 89.9°C
• Sound Pressure Level: 71.3 dB(A) @ -10°C / 45°C

🛢 Oil & Refrigerant Compatibility

• Oil Type:

• BSE32 (Standard for R404A, R507A, R407A/F)
• BSE55 (for R134a >70°C)
• B5.2 (Option for R22)
• BSE85K (for R1234ze or R515B at high temps)

• Oil Charge: 4.75 dm³
• Compatible Refrigerants:

• R404A, R507A, R407A/F, R134a, R22, R1234yf, R1234ze, R454C, R455A, R515B

💡 Why Choose the 6JE-25Y

✔️ Excellent performance for large cold storage and freezer facilities

✔️ Reliable 6-cylinder design for smooth operation and reduced vibration

✔️ IP54 motor protection (upgradeable to IP66)

✔️ Optional: Discharge temperature sensor, oil heater, start unloading, and capacity control

✔️ Supports Bitzer’s IQ Module (CM-RC-02) for smart control and diagnostics

📦 Compatible Accessories

• Receiver: F1052T

• Volume: 105.0 L
• Max R404A charge: 100.9 kg

• IQ Module: CM-RC-02

• Bluetooth + Modbus + Real-time data logging
• IP66 enclosure, 115–230V, with protective monitoring

🚚 Shipping & Availability

• ✅ Available for 380–420V / 50Hz
• ⚙️ 60Hz units available within 3–4 weeks
• 🌍 Export packaging and international delivery available
