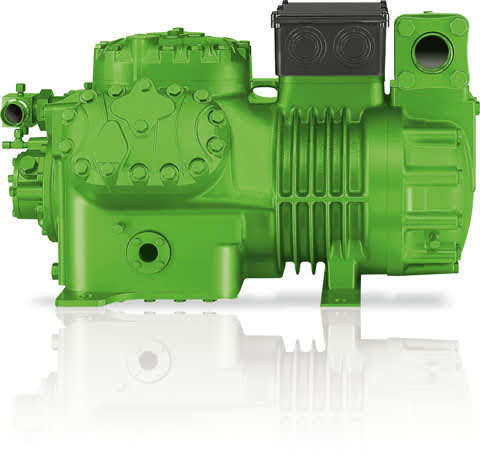

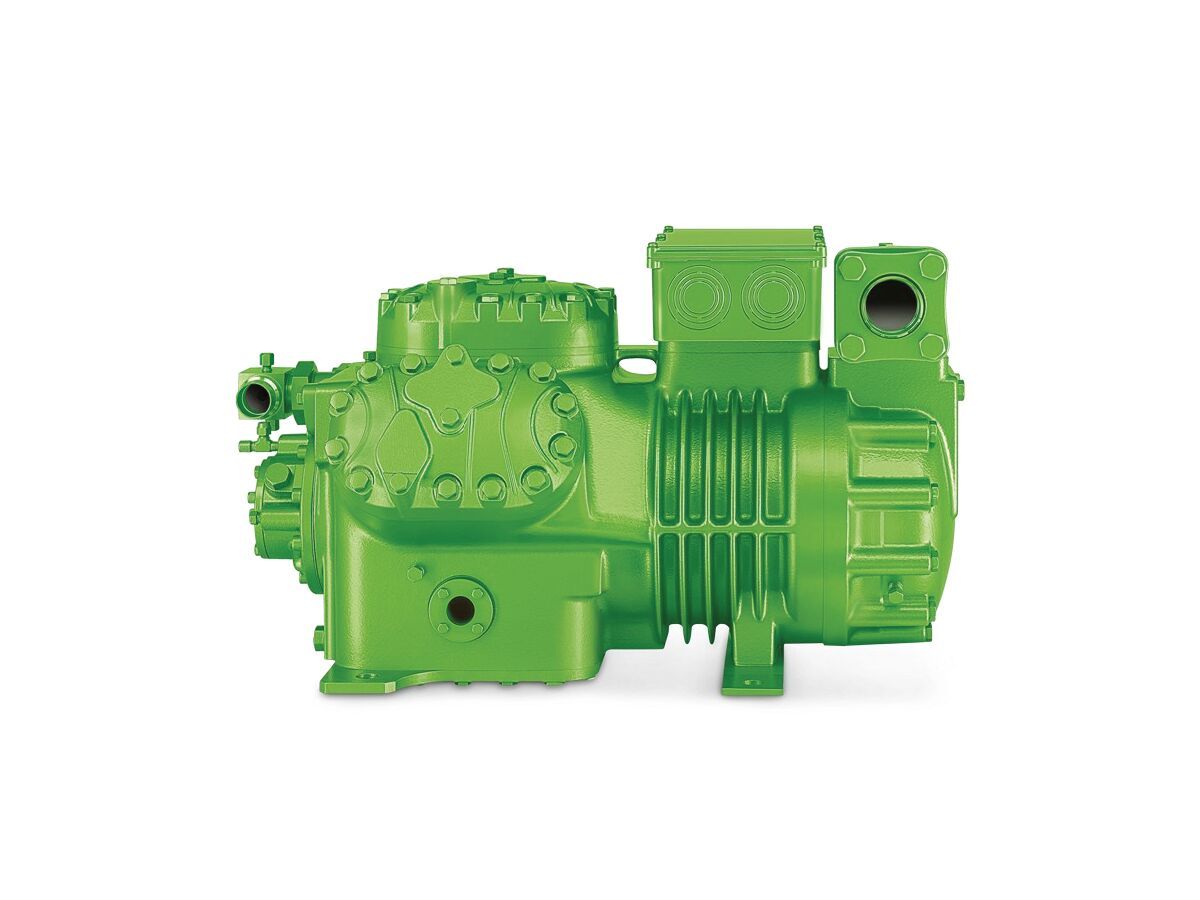

Bitzer 6HE-35Y Semi-Hermetic Reciprocating Compressor

🔧 Technical Specifications

• Model: 6HE-35Y-40P
• Cooling Capacity (R404A @ -10°C / 45°C): 56.0 kW
• Power Input: 24.2 kW
• COP (Efficiency): 2.32
• Displacement (50Hz): 110.5 m³/h
• Displacement (60Hz): 133.4 m³/h
• Cylinders / Bore / Stroke: 6 × 70 mm × 55 mm
• Weight: 241 kg
• Max Pressure (LP / HP): 19 / 32 bar
• Suction Line Connection: 54 mm – 2 1/8”
• Discharge Line Connection: 35 mm – 1 3/8”
• Max Power Input: 36.0 kW
• Max Operating Current: 64.4 A
• Starting Current (Rotor Locked): 165.0 A (Y) / 275.0 A (YY)
• Discharge Temp: 90.7°C
• Sound Pressure Level: 73.8 dB(A) @ -10°C / 45°C

🛢 Oil & Refrigerant Compatibility

• Standard Oil Charge: 4.75 dm³ – BSE32
• Compatible Refrigerants:

• R404A, R507A, R407A/F → BSE32
• R134a (>70°C) → BSE55
• R22 → B5.2
• R1234yf → BSE32 / BSE55
• R1234ze → BSE55 / BSE85K
• R454C, R455A → BSE32
• R515B → BSE55 / BSE85K

💡 Why Choose the 6HE-35Y

✔️ Ultra-high cooling capacity for demanding industrial environments

✔️ Built-in vibration dampers, suction & discharge valves

✔️ Motor protection (IP54 standard / IP66 optional)

✔️ Optional discharge gas temp sensor, oil heater, capacity control

✔️ IQ Module CM-RC-02 support (Bluetooth + Modbus)

📦 Compatible Accessories

• Receiver: Bitzer F1052T

• Volume: 105.0 L
• Max R404A charge: 100.9 kg

• IQ Module: CM-RC-02

• Modbus, Bluetooth, Real-time logging
• Enclosure: IP66 | Voltage: 115–230V

🚚 Shipping & Availability

• ✅ Available for 380–420V / 50Hz
• ⚙️ 60Hz version available with 3–4 week lead time
• 🌍 Global shipping with export packaging
