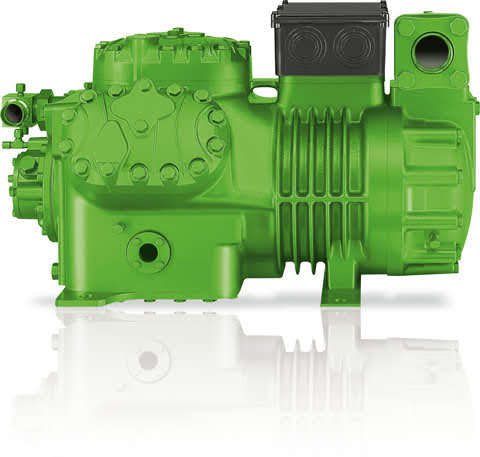

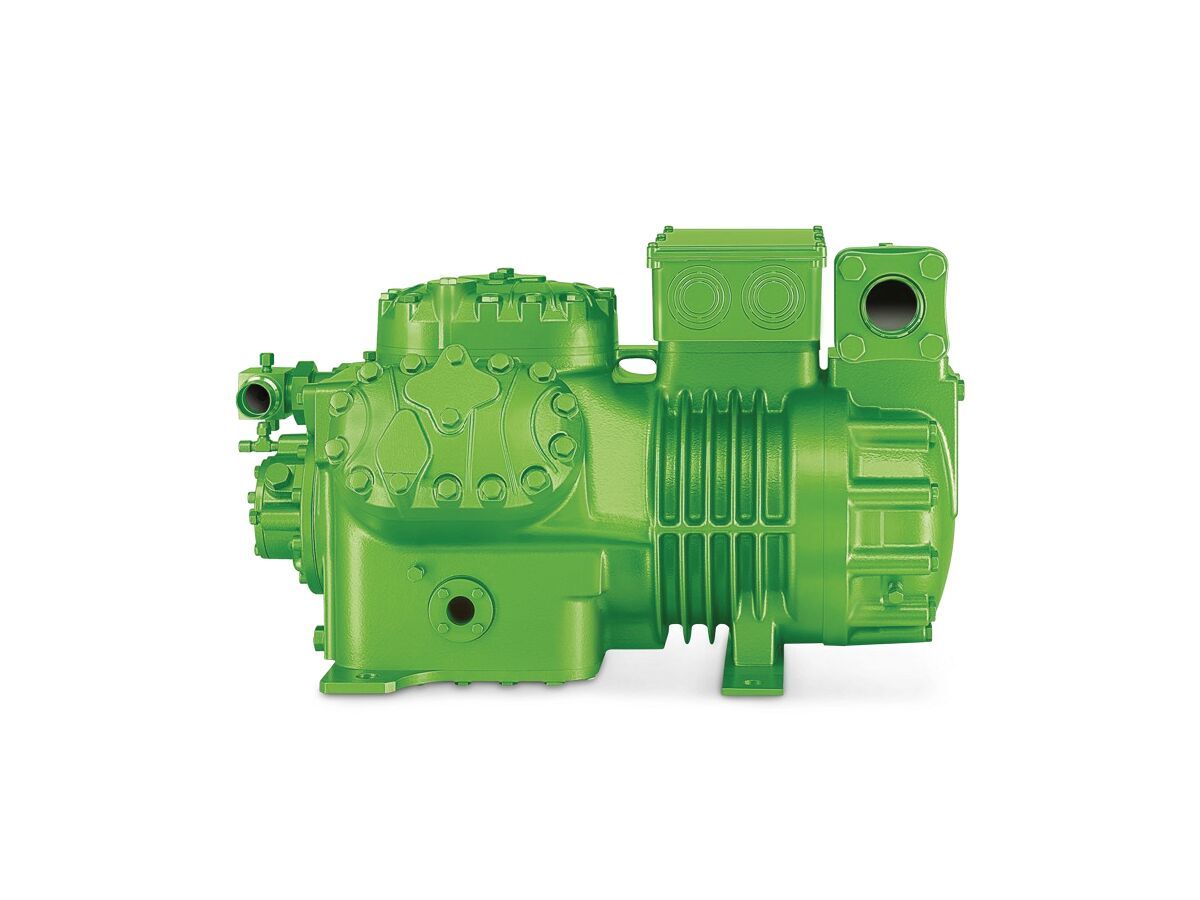

Bitzer 6GE-40Y Semi-Hermetic Reciprocating Compressor

🔧 Technical Specifications

• Model: 6GE-40Y-40P
• Cooling Capacity (R404A @ -10°C / 45°C): 63.8 kW
• Power Input: 28.0 kW
• COP (Efficiency): 2.28
• Displacement (50Hz): 126.8 m³/h
• Displacement (60Hz): 153.0 m³/h
• Cylinders / Bore / Stroke: 6 × 75 mm × 55 mm
• Weight: 240 kg
• Voltage Range: 380–420V / 3 Phase / 50Hz
• Max Operating Current: 73.9 A
• Starting Current (Rotor Locked): 219.0 A (Y) / 362.0 A (YY)
• Max Power Input: 42.0 kW
• Suction Connection: 54 mm – 2 1/8”
• Discharge Connection: 35 mm – 1 3/8”
• Discharge Temp: 91.5°C
• Sound Pressure Level @1m (-10°C / 45°C): 75.3 dB(A)

🛢 Oil & Refrigerant Compatibility

• Standard Oil Charge: 4.75 dm³ – BSE32
• Compatible Refrigerants:

• R404A, R507A, R407A/F → BSE32
• R134a >70°C → BSE55
• R22 → B5.2
• R1234yf → BSE32 / BSE55
• R1234ze → BSE55 / BSE85K
• R454C, R455A → BSE32
• R515B → BSE55 / BSE85K

💡 Why Choose the 6GE-40Y

✔️ Exceptional cooling performance for industrial-scale refrigeration

✔️ Supports advanced options: start unloading, oil heater, refrigerant injection

✔️ Motor protected to IP54 standard (IP66 optional)

✔️ Compatible with Bitzer IQ Module CM-RC-02 (Bluetooth + Modbus)

✔️ Available capacity control (100–66–33% or 100–10%)

📦 Compatible Accessories

• Receiver: F1052T

• Volume: 105.0 L
• Max R404A charge: 100.9 kg

• IQ Module: CM-RC-02

• Features: Bluetooth, Modbus, real-time diagnostics
• Enclosure: IP66 | Voltage: 115–230V

🚚 Shipping & Availability

• ✅ Available for 380–420V / 50Hz
• ⚙️ Custom 60Hz versions produced in 3–4 weeks
• 🌍 Global export packaging and international delivery available
