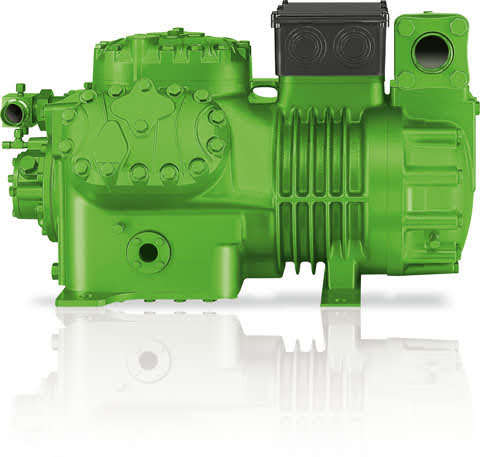

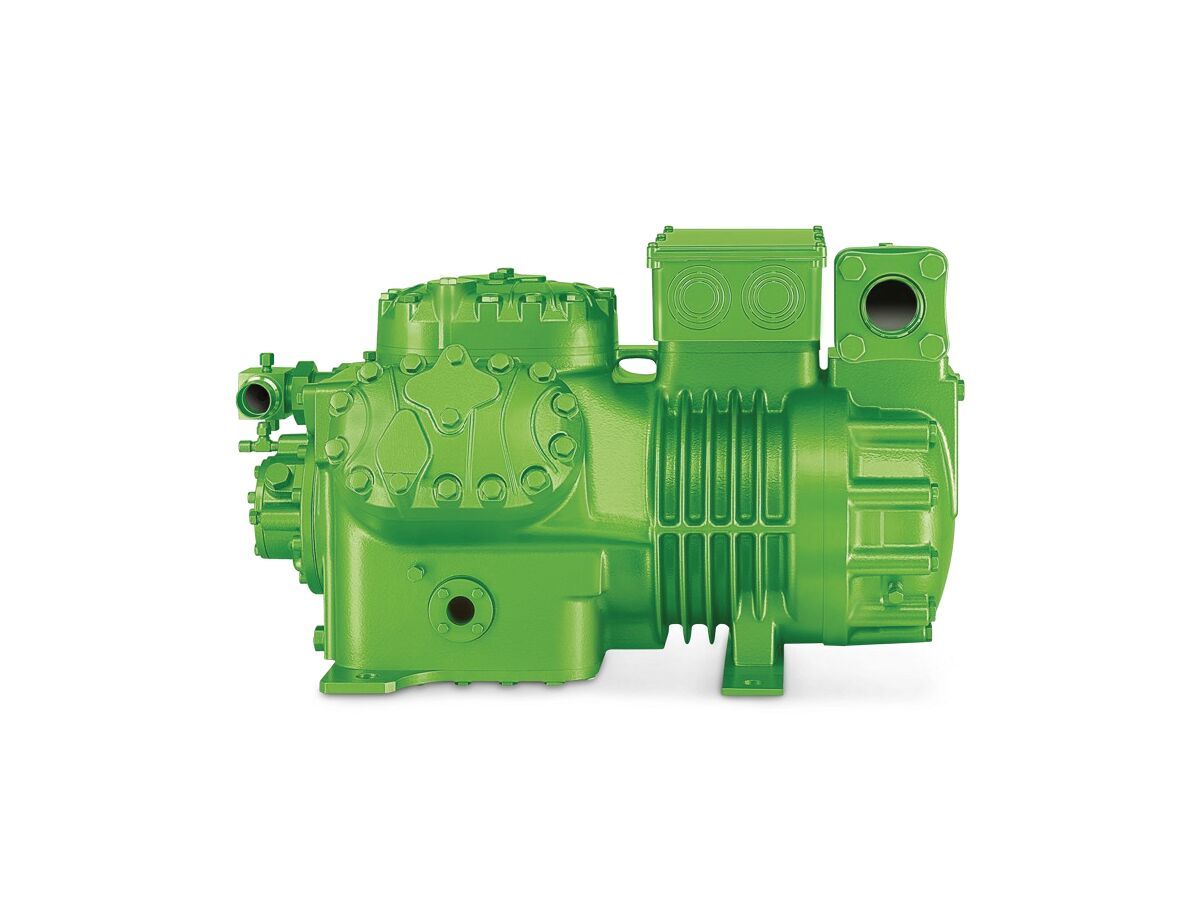

Bitzer 6GE-34Y Semi-Hermetic Reciprocating Compressor

🔧 Technical Specifications

• Model: 6GE-34Y-40P
• Cooling Capacity (R404A @ -10°C / 45°C): 66.7 kW
• Power Input: 30.1 kW
• COP (Efficiency): 2.21
• Displacement (50Hz): 126.8 m³/h
• Displacement (60Hz): 153.0 m³/h
• Cylinders / Bore / Stroke: 6 × 75 mm × 55 mm
• Weight: 230 kg
• Voltage Range: 380–420V / 3 Phase / 50Hz
• Max Operating Current: 65.5 A
• Starting Current (Rotor Locked): 141.0 A (Y) / 233.0 A (YY)
• Max Power Input: 40.0 kW

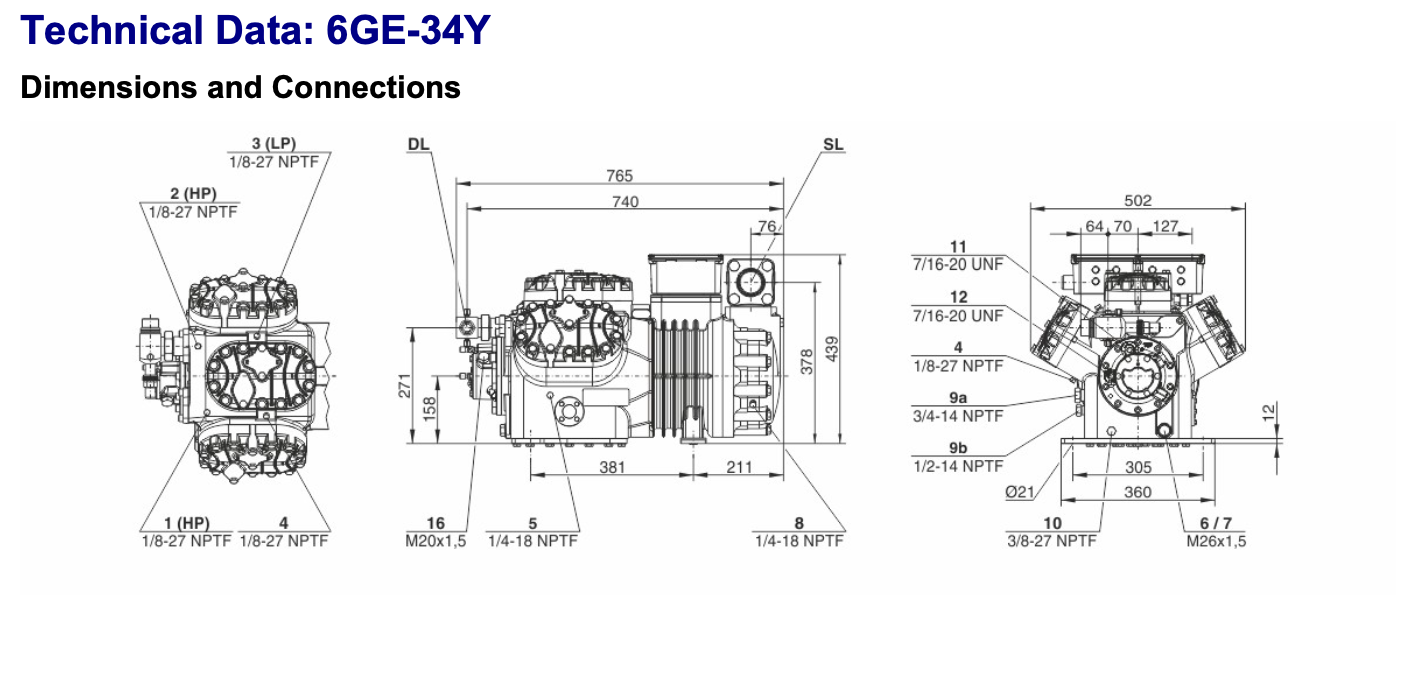

• Suction Connection: 54 mm – 2 1/8”
• Discharge Connection: 35 mm – 1 3/8”
• Discharge Temperature: 92.9°C
• Sound Pressure Level @ 1m: 75.3 dB(A)

🛢 Oil & Refrigerant Compatibility

• Oil Charge: 4.75 dm³
• Standard Oil: BSE32
• Compatible Refrigerants:

• R404A, R507A, R407A/F → BSE32
• R134a >70°C → BSE55
• R22 → B5.2
• R1234yf → BSE32 / BSE55
• R1234ze → BSE55 / BSE85K
• R454C, R455A → BSE32
• R515B → BSE55 / BSE85K

💡 Why Choose the 6GE-34Y

✔️ Extreme cooling performance for large cold rooms

✔️ Rugged 6-cylinder design for continuous duty operation

✔️ Compatible with optional capacity control: 100-66-33% or 100-10%

✔️ Supports Bitzer IQ Module CM-RC-02 (Bluetooth + Modbus monitoring)

✔️ Standard features: shut-off valves, vibration dampers, IP54 enclosure

📦 Compatible Accessories

• Receiver: Bitzer F1052T

• Volume: 105 L
• Max R404A charge: 100.9 kg

• IQ Module: CM-RC-02

• Interfaces: Modbus + Bluetooth
• Features: Data logging, diagnostics, start control
• Enclosure: IP66 | Voltage: 115–230V
