🔧 Technical Data Summary
- Displacement (1450rpm, 50Hz): 34.73 m³/h
- Displacement (1750rpm, 60Hz): 41.92 m³/h
- No. of Cylinders × Bore × Stroke: 4 × 55 mm × 42 mm
- Weight: 146 kg
- Max Pressure (LP / HP): 19 bar / 32 bar
- Suction Line Connection: 28 mm – 1 1/8”
- Discharge Line Connection: 22 mm – 7/8”
- Max Operating Current: 19.9 A
- Starting Current (Rotor Locked): 59.0 A (Y) / 99.0 A (YY)
- Max Power Input: 12.0 kW
- Cooling Capacity (R404A, t₀ = -10°C, t𝑐 = 45°C): 17.23 kW
- Power Input: 7.32 kW
- COP (Efficiency): 2.35
- Discharge Temp: 90.1°C
- Sound Level: 72.3 dB(A) @ -10°C / 45°C
- Oil Type:
- R404A/R507A/R407A/F → BSE32 (Standard)
- R134a >70°C → BSE55 (Option)
- R22 → B5.2 (Option)
- R1234yf → BSE32 / BSE55
- R1234ze → BSE55 / BSE85K
- R454C/R455A → BSE32
- Application: Large cold rooms, logistics hubs, industrial cooling, air-cooled units
🔵 Why Choose the 4VES-10Y?
- Higher cooling capacity than 4VES-7Y — ideal for larger systems
- Durable German design with strong energy efficiency
- Low vibration and quiet operation
- Compatible with multiple eco-friendly refrigerants
- Trusted Bitzer reliability for cold chains, supermarkets, and warehouses
📦 Need a Condensing Unit or Other Bitzer Models?
We supply a full range of Bitzer compressors, condensing units, and genuine Bitzer parts with competitive pricing and fast worldwide delivery.
📧 Email us | 📞 Call or WhatsApp us
We’re ready to support your refrigeration projects!
🚚🌍 Shipping
- Standard stock (380V / 50Hz) available for fast delivery
- Custom options (e.g., 60Hz) take 3–4 weeks production time
📑 For More Technical Data:

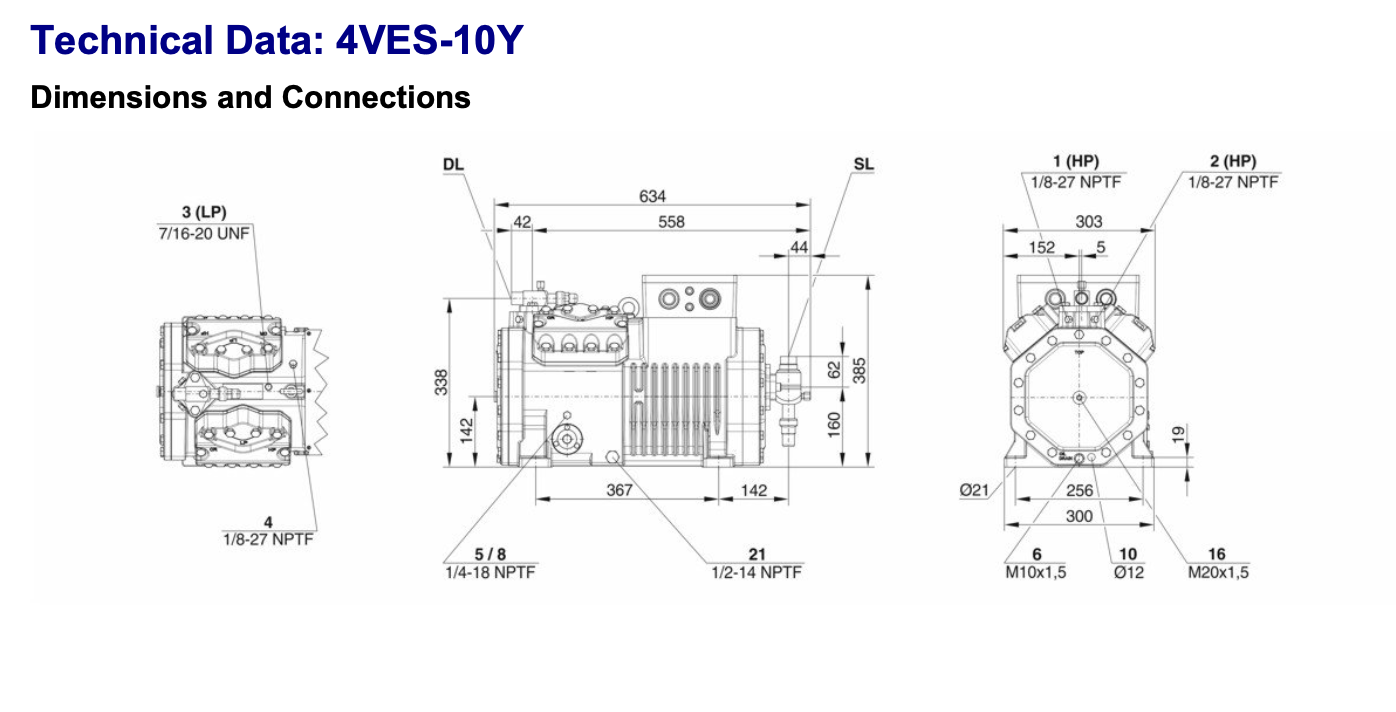

The full technical datasheet includes cooling performance, electrical specs, receiver info, dimensions, sound levels, and accessories.
