🔧 Technical Data Summary
- Displacement (1450rpm, 50Hz): 34.73 m³/h
- Displacement (1750rpm, 60Hz): 41.92 m³/h
- No. of Cylinders × Bore × Stroke: 4 × 55 mm × 42 mm
- Weight: 142 kg
- Max Pressure (LP / HP): 19 bar / 32 bar
- Suction Line Connection: 28 mm – 1 1/8”
- Discharge Line Connection: 22 mm – 7/8”
- Max Operating Current: 16.6 A
- Starting Current (Rotor Locked): 39.0 A (Y) / 68.0 A (YY)
- Max Power Input: 11.0 kW
- Cooling Capacity (R404A, t₀ = -10°C, t𝑐 = 45°C): 17.21 kW
- Power Input: 7.59 kW
- COP (Efficiency): 2.27
- Discharge Temp: 91.7°C
- Sound Level: 72.3 dB(A) @ -10°C / 45°C
- Oil Type:
- R404A/R507A/R407A/F → BSE32 (Standard)
- R134a >70°C → BSE55 (Option)
- R22 → B5.2 (Option)
- R1234yf → BSE32 / BSE55
- R1234ze → BSE55 / BSE85K
- R454C/R455A → BSE32
- Application: Cold rooms, refrigerated storage, industrial freezers, air-cooled condensing units
🔵 Why Choose the 4VE-7Y?
- Efficient and reliable for mid- to large-scale cooling applications
- Compatible with eco-friendly refrigerants
- Compact, easy-to-install construction
- Quiet operation with low vibration
- Strong performance even in hot climates
📦 Need a Condensing Unit or Other Bitzer Models?
We offer a full range of Bitzer compressors, condensing units, and original spare parts at competitive prices — shipped worldwide.
📧 Email us | 📞 Call or WhatsApp us
Let us help with your refrigeration requirements!
🚚🌍 Shipping
- Standard models (380V / 50Hz) are stocked for fast dispatch
- Custom voltage units (like 60Hz) require 3–4 weeks lead time
📑 For More Technical Data:

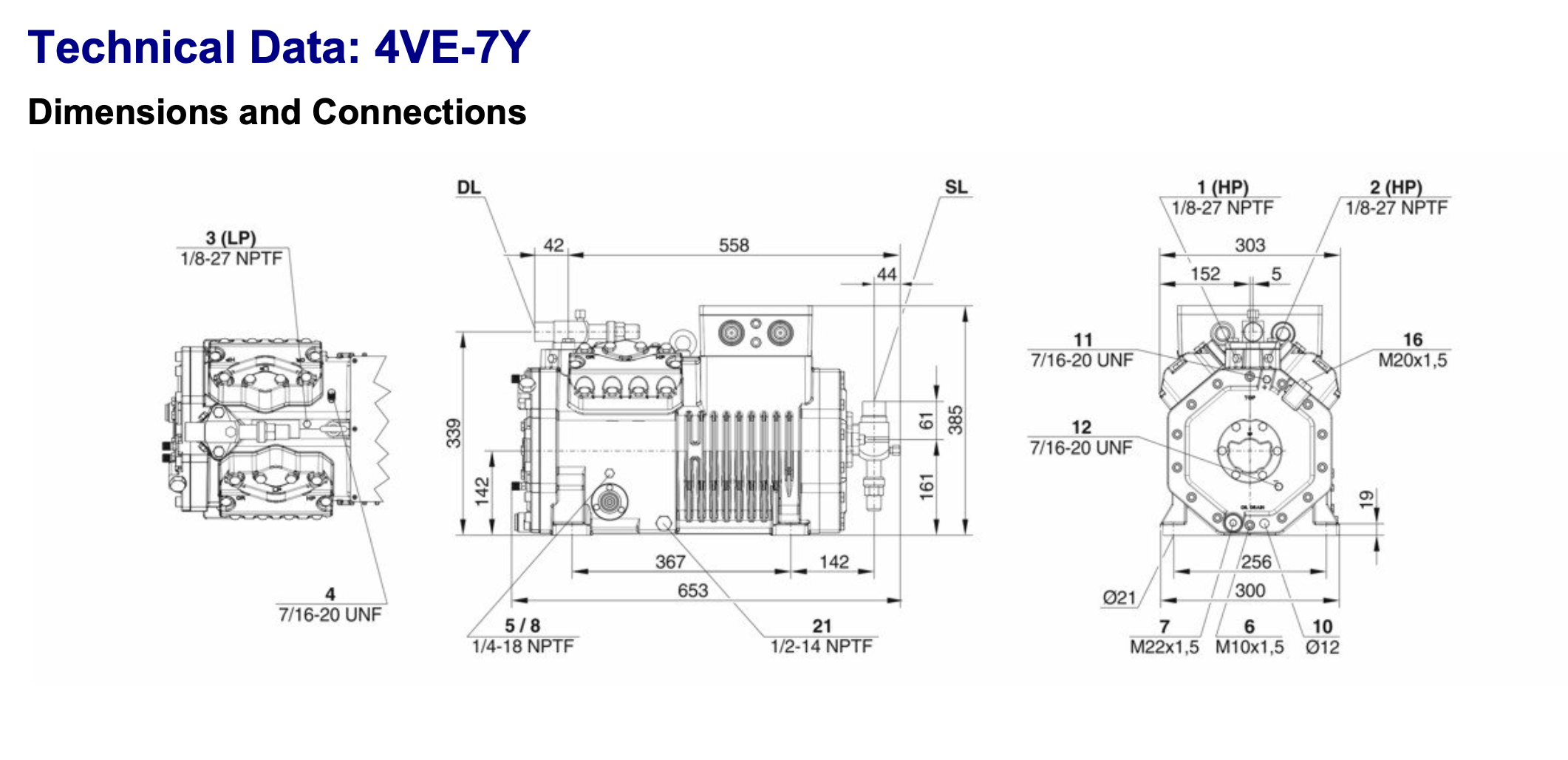

This compressor’s full technical documentation includes performance charts, electrical info, accessory options, sound levels, and installation data.
📥 Download the full PDF datasheet above.
