🔧 Technical Data Summary
- Displacement (1450rpm, 50Hz): 34.73 m³/h
- Displacement (1750rpm, 60Hz): 41.92 m³/h
- No. of Cylinders × Bore × Stroke: 4 × 55 mm × 42 mm
- Weight: 149 kg
- Max Pressure (LP / HP): 19 bar / 32 bar

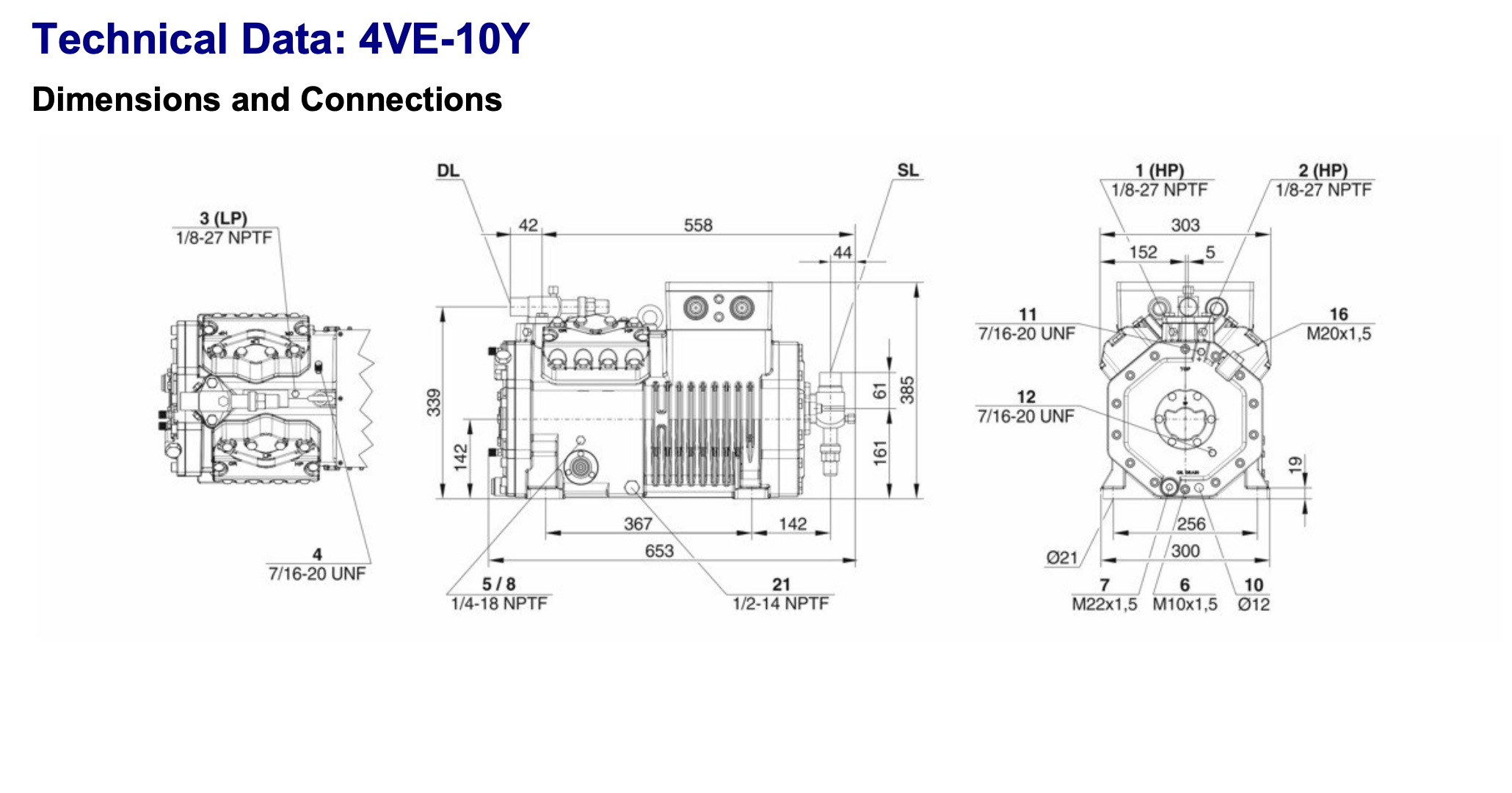

- Suction Line Connection: 28 mm – 1 1/8”
- Discharge Line Connection: 22 mm – 7/8”
- Max Operating Current: 19.9 A
- Starting Current (Rotor Locked): 59.0 A (Y) / 99.0 A (YY)
- Max Power Input: 12.0 kW
- Cooling Capacity (R404A, t₀ = -10°C, t𝑐 = 45°C): 17.23 kW
- Power Input: 7.32 kW
- COP (Efficiency): 2.35
- Discharge Temp: 90.1°C
- Sound Level: 72.3 dB(A) @ -10°C / 45°C
- Oil Type:
- R404A/R507A/R407A/F → BSE32 (Standard)
- R134a >70°C → BSE55 (Option)
- R22 → B5.2 (Option)
- R1234yf → BSE32 / BSE55
- R1234ze → BSE55 / BSE85K
- R454C/R455A → BSE32
- Application: Cold storage, industrial freezing, refrigerated warehouses, and air-cooled condensing units
🔵 Why Choose the 4VE-10Y?
- Higher cooling power with efficient energy use
- Optimized for medium and low temperature applications
- Low noise and vibration for smooth operation
- Supports environmentally friendly refrigerants
- Trusted performance in demanding commercial settings
📦 Need a Condensing Unit or Other Bitzer Models?
We supply the full range of Bitzer compressors, complete condensing units, and authentic spare parts — with global delivery.
📧 Email us | 📞 Call or WhatsApp us
We’re ready to help you with your refrigeration system requirements.
🚚🌍 Shipping
- Standard 380V / 50Hz models available for quick delivery
- Custom voltage (60Hz) units ready in 3–4 weeks
📑 For More Technical Data:
Download the full datasheet above to see electrical specs, sound data, accessories, and detailed performance charts.
