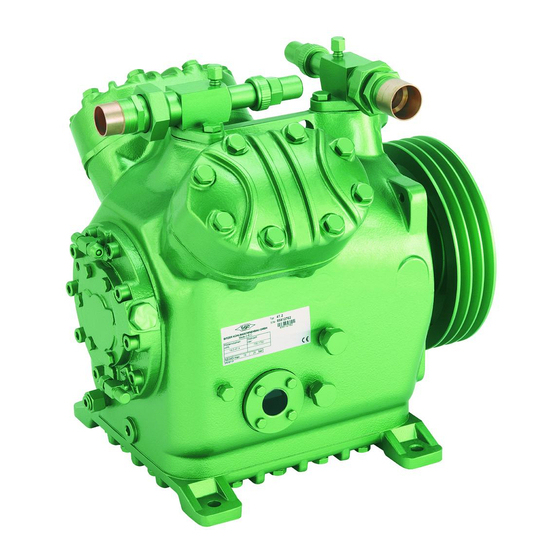

Bitzer 4T.2Y-K Open-Type Reciprocating Compressor

🔧 Technical Specifications:

• Model: 4T.2Y-K

• Refrigerant: R404A (also compatible with R134a, R507A, R407A/F, R407C)

• Evaporating Temp.: -10°C

• Condensing Temp.: 45°C

• Displacement: 39.36 m³/h (50Hz), 47.5 m³/h (60Hz)

• Cooling Capacity: 20.6 kW (EN12900: 21.0 kW)

• Shaft Power: 8.61 kW

• COP: 2.40

• Mass Flow: 650 kg/h

• Cylinder Configuration: 4 cylinders (60 mm bore × 40 mm stroke)

• Weight: 77 kg

• Max. Pressure: 19 bar (LP) / 25 bar (HP)

• Suction Line: 35 mm – 1 3/8”

• Discharge Line: 28 mm – 1 1/8”

• Oil Charge: 4.0 L (BSE32 / BSE55 for R404A; B5.2 for R22)

✅ Key Benefits:

• Efficient cooling performance for industrial and commercial refrigeration

• Durable open-type design for heavy-duty, long-term operation

• Factory-equipped with suction and discharge valves for easy installation

• Optional features for enhanced performance: water-cooled heads, oil heater, advanced monitoring systems

• Compatible with a wide range of refrigerants including R404A, R507A, R407C, and R22

📦 Shipping & Availability:

✅ Standard 380–420V / 50Hz models available

⚙️ 60Hz or custom voltage configurations built-to-order (lead time 3–4 weeks)

📦 Export-grade packaging for global delivery
