🔧 Technical Data Summary
- Displacement (1450rpm, 50Hz): 48.50 m³/h
- Displacement (1750rpm, 60Hz): 58.53 m³/h
- No. of Cylinders × Bore × Stroke: 4 × 65 mm × 42 mm
- Weight: 153 kg
- Max Pressure (LP / HP): 19 bar / 32 bar
- Suction Line Connection: 42 mm – 1 5/8”
- Discharge Line Connection: 28 mm – 1 1/8”
- Max Operating Current: 28.2 A
- Starting Current (Rotor Locked): 81.0 A (Y) / 132.0 A (YY)
- Max Power Input: 16.0 kW
- Cooling Capacity (R404A, t₀ = -10°C, t𝑐 = 45°C): 23.7 kW
- Power Input: 10.17 kW
- COP (Efficiency): 2.33
- Discharge Temp: 90.5°C
- Sound Level: 76.3 dB(A) @ -10°C / 45°C
- Oil Type:
- R404A/R507A/R407A/F → BSE32 (Standard)
- R134a >70°C → BSE55 (Option)
- R22 → B5.2 (Option)
- R1234yf → BSE32 / BSE55
- R1234ze → BSE55 / BSE85K
- R454C/R455A → BSE32
- Application: Industrial blast freezers, large cold storage rooms, high-load refrigeration environments
🔵 Why Choose the 4PES-15Y?
- Exceptional cooling capacity for large-scale refrigeration
- Bitzer reliability for 24/7 industrial operations
- Efficient performance in high-heat environments
- Low vibration and noise despite high output
- Flexible refrigerant compatibility for low-GWP operation
📦 Need a Condensing Unit or Other Bitzer Models?
We supply the full Bitzer product range, including compressors, condensing units, and genuine Bitzer spares, with global delivery and technical support.
📧 Email us | 📞 Call or WhatsApp us
We’re here to assist with any project size.
🚚🌍 Shipping
- Standard models (380V / 50Hz) ready for dispatch
- Custom voltages (e.g., 60Hz) available within 3–4 weeks
📑 For More Technical Data:

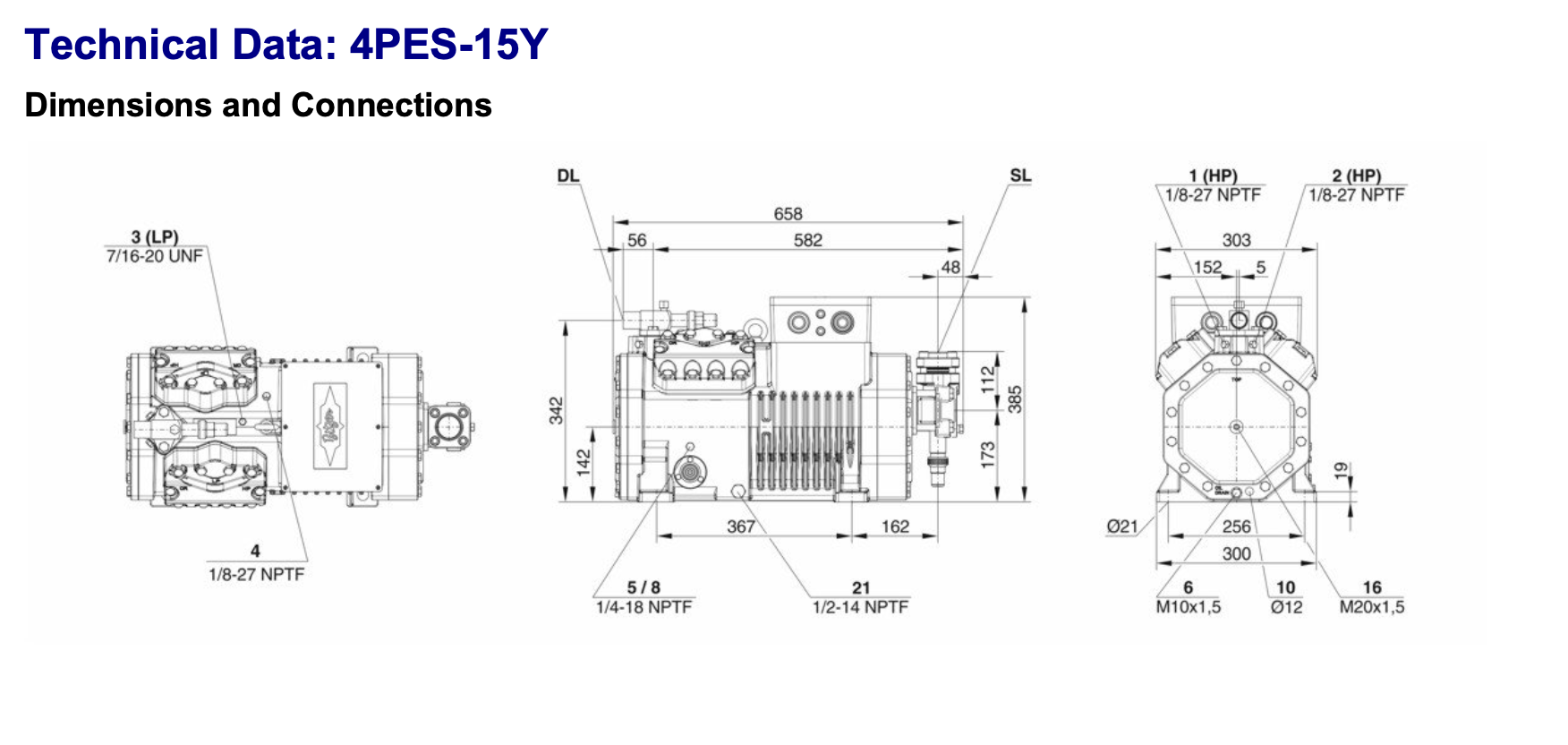

Refer to the full datasheet above for complete specs, electrical data, drawings, and module options.
