🔧 Technical Specifications

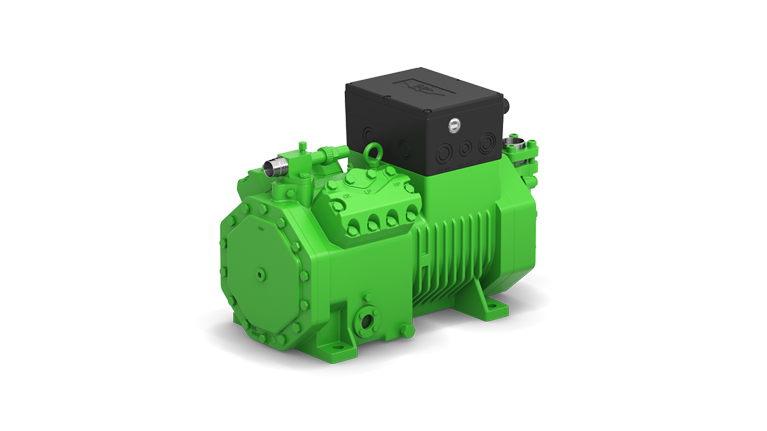

- Model: 4NES-14Y-40P
- Cooling Capacity (R404A @ -10°C / 45°C): 28.6 kW
- Power Input: 12.48 kW
- COP (Efficiency): 2.29
- Displacement (50Hz): 56.25 m³/h
- Displacement (60Hz): 67.89 m³/h
- Cylinders / Bore / Stroke: 4 × 70 mm × 42 mm
- Weight: 146 kg
- Max Pressure (LP / HP): 19 / 32 bar

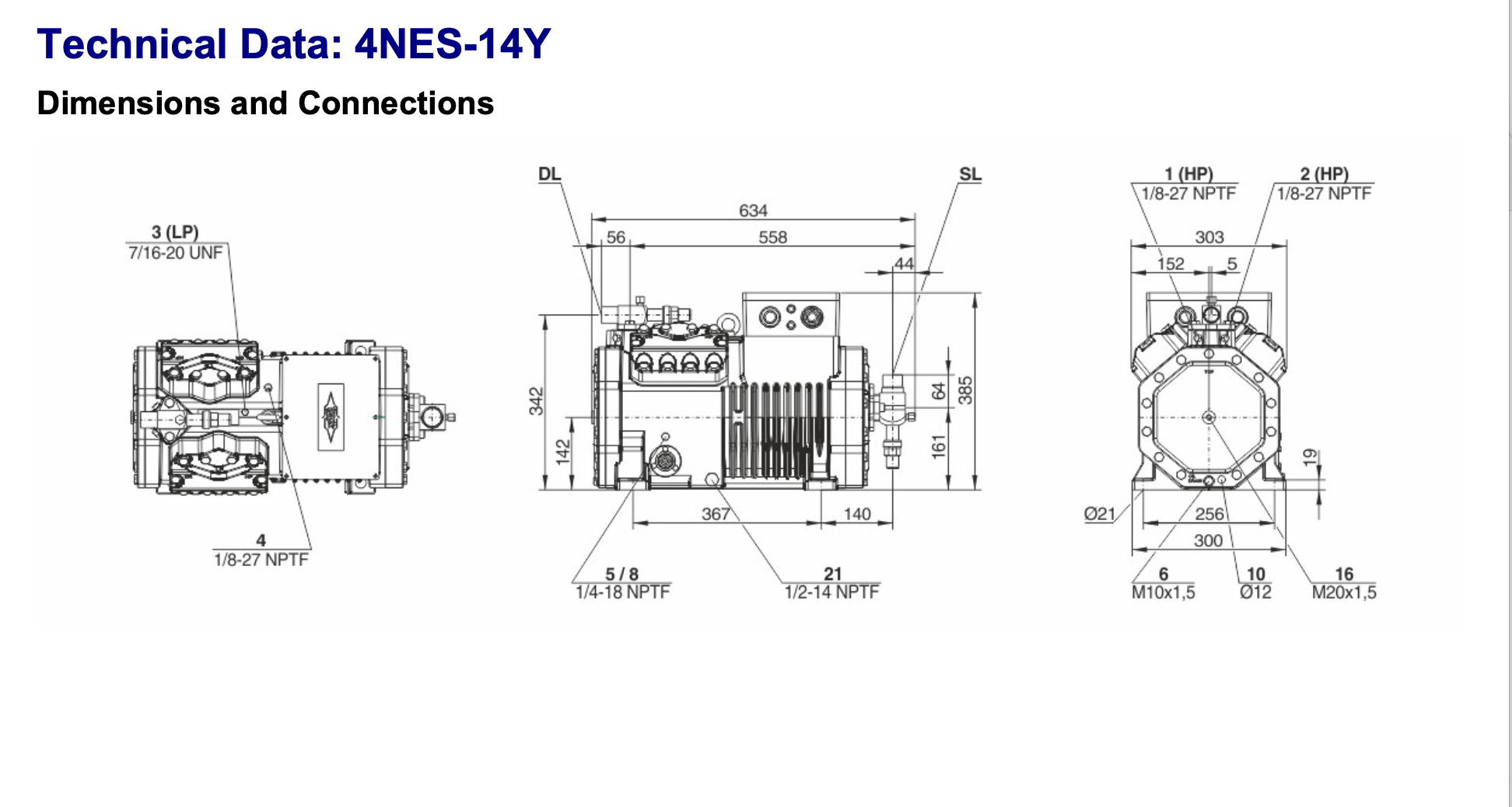

- Suction Line Connection: 35 mm – 1 3/8”
- Discharge Line Connection: 28 mm – 1 1/8”
- Max Operating Current: 26.6 A
- Starting Current (Rotor Locked): 69.0 A (Y) / 113.0 A (YY)
- Max Power Input: 17.0 kW
- Discharge Temperature: 91.3°C
- Sound Pressure Level: 70.3 dB(A) @ -10°C / 45°C
🛢 Oil & Refrigerant Compatibility
- Standard Oil Charge: 2.60 dm³ – BSE32
- Compatible Refrigerants:
- R404A, R507A, R407A/F → BSE32
- R134a >70°C → BSE55
- R22 → B5.2
- R1234yf → BSE32 / BSE55
- R1234ze → BSE55 / BSE85K
- R454C, R455A → BSE32
- R515B → BSE55 / BSE85K
-----------------------------------------------------------------------------------------------------
💡 Why Choose the 4NES-14Y
✔️ Excellent for high-load cold room and freezer systems
✔️ Wide refrigerant compatibility for global compliance
✔️ Includes shut-off valves, vibration dampers, and IP66 motor protection
✔️ Optional features: oil heater, discharge temp sensor, refrigerant injection, IQ module
✔️ Quiet operation: only 70.3 dB(A) at 1m
🚚 Shipping & Availability
- ✅ Operates on 380–420V / 50Hz
- ⚙️ Custom voltage (60Hz) units available in 3–4 weeks
- 🌍 Worldwide export-ready packaging and delivery
