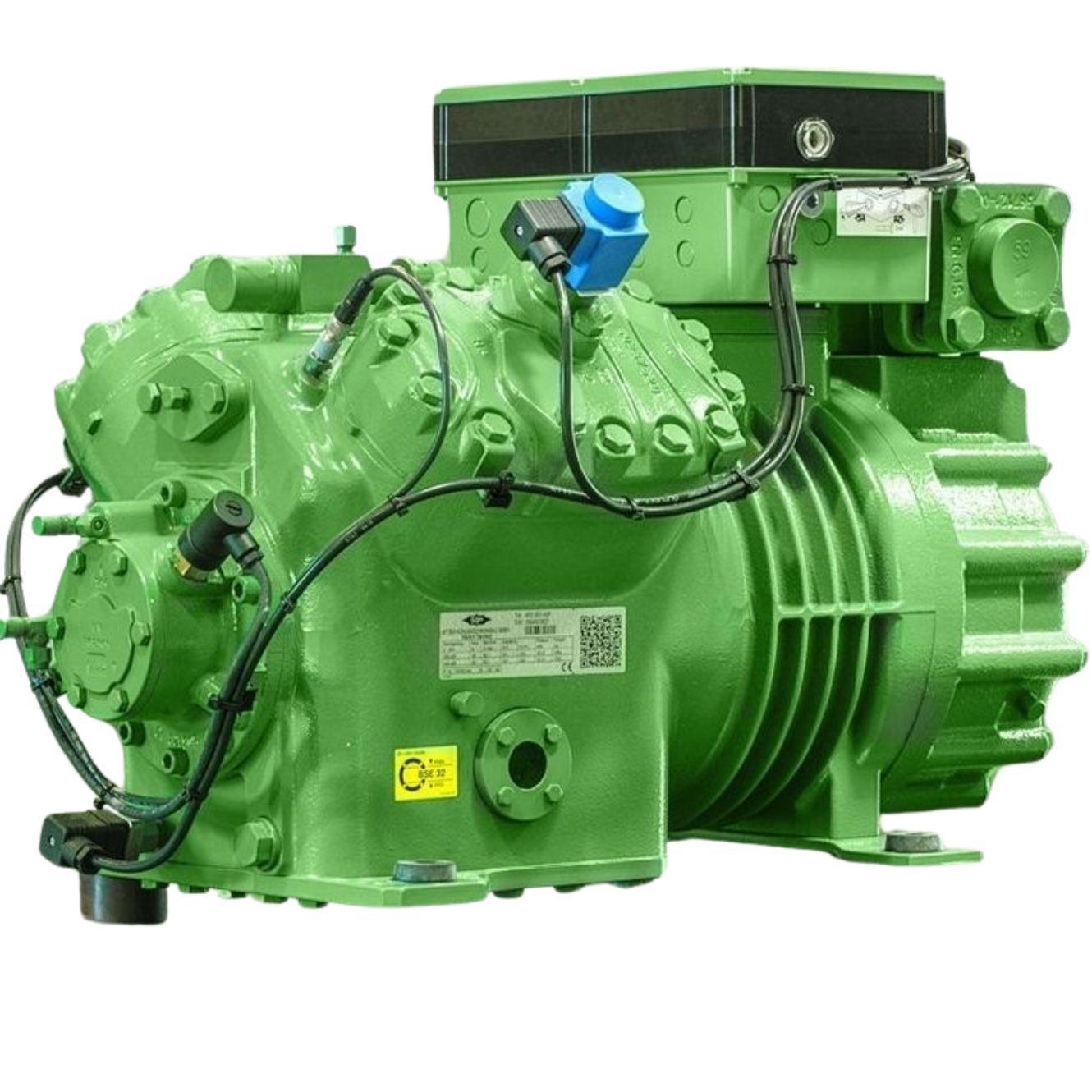

Bitzer 4NE-14Y Semi-Hermetic Reciprocating Compressor

🔧 Technical Specifications

• Model: 4NE-14Y-40P
• Cooling Capacity (R404A @ -10°C / 45°C): 28.6 kW
• Power Input: 12.48 kW
• COP (Efficiency): 2.29
• Displacement (50Hz): 56.25 m³/h
• Displacement (60Hz): 67.89 m³/h
• Cylinders / Bore / Stroke: 4 × 70 mm × 42 mm
• Voltage Range: 380–420V
• Rated Current (400V): 21.0 A
• Max Pressure (LP / HP): 19 / 32 bar
• Suction Line Connection: 35 mm – 1 3/8”
• Discharge Line Connection: 28 mm – 1 1/8”
• Mass Flow: 857 kg/h
• Discharge Temperature: 91.3°C
• Sound Level: ~70 dB(A)

🛢 Oil & Refrigerant Compatibility

• Standard Oil Charge: BSE32 – 2.6 liters
• Compatible Refrigerants:

• R404A, R507A, R407A/F → BSE32
• R134a (>70°C) → BSE55
• R22 → B5.2
• R1234yf → BSE32 / BSE55
• R1234ze → BSE55 / BSE85K
• R454C, R455A → BSE32
• ------------------

💡 Why Choose the 4NE-14Y

✔️ Strong cooling capacity for industrial cold rooms

✔️ German engineering with stable, long-term performance

✔️ Includes IP66 motor protection and high-reliability components

✔️ Compatible with eco-friendly refrigerants

✔️ Perfectly matches with Bitzer’s receiver and IQ control systems

🚚 Shipping & Availability

• ✅ Suitable for 380–420V / 50Hz systems
• ⚙️ Custom configurations (e.g., 60Hz) available in 3–4 weeks
• 🌍 Global shipping with secure packaging
