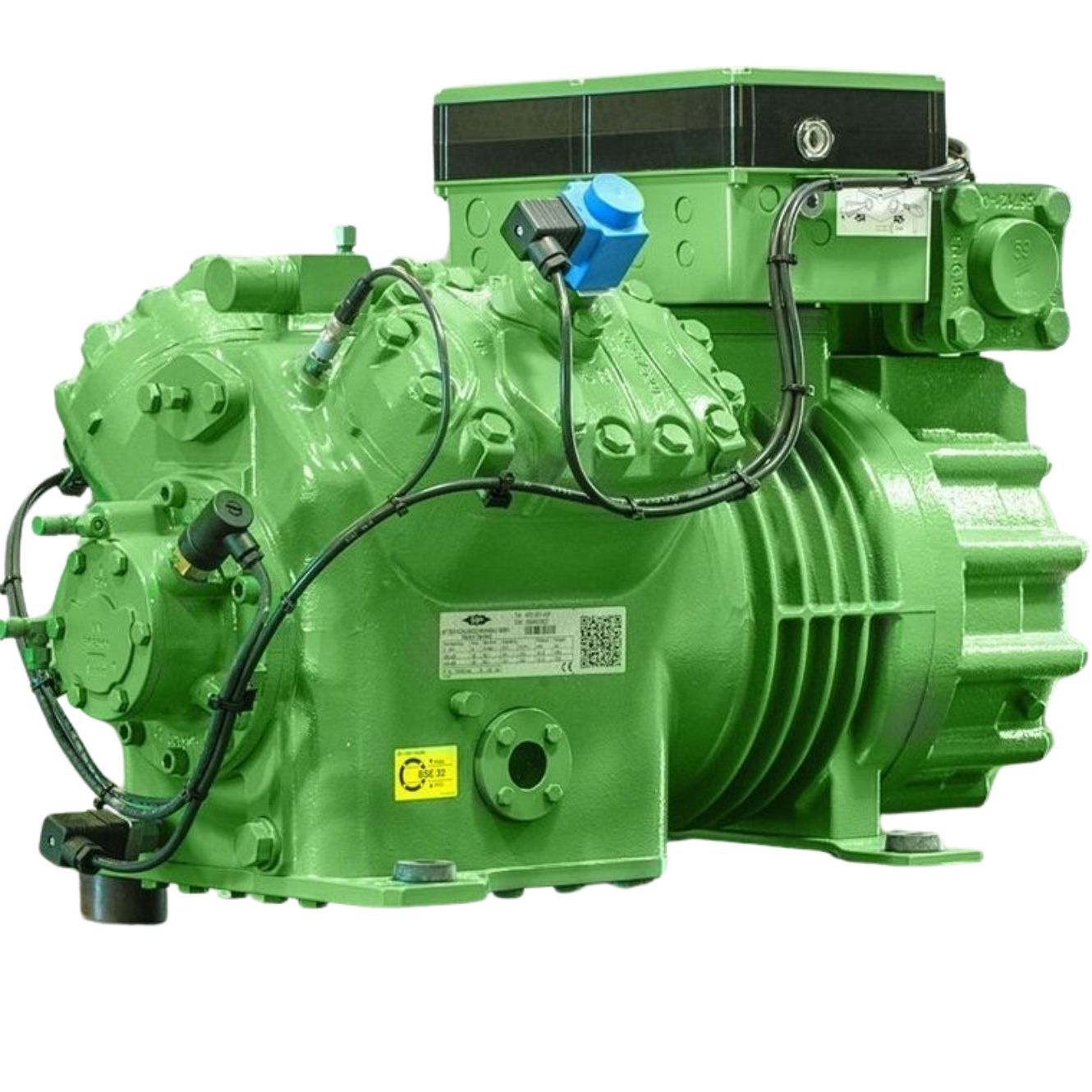

Bitzer 4JE-22Y Semi-Hermetic Reciprocating Compressor

🔧 Technical Specifications

• Model: 4JE-22Y-40P
• Cooling Capacity (R404A @ -10°C / 45°C): 32.2 kW
• Power Input: 13.62 kW
• COP (Efficiency): 2.37
• Displacement (50Hz): 63.5 m³/h
• Displacement (60Hz): 76.64 m³/h
• Cylinders / Bore / Stroke: 4 × 65 mm × 55 mm
• Weight: 192 kg
• Voltage Range: 380–420V / 3 Phase / 50Hz
• Max Operating Current: 37.2 A
• Starting Current (Rotor Locked): 97.0 A (Y) / 158.0 A (YY)
• Max Power Input: 21.0 kW

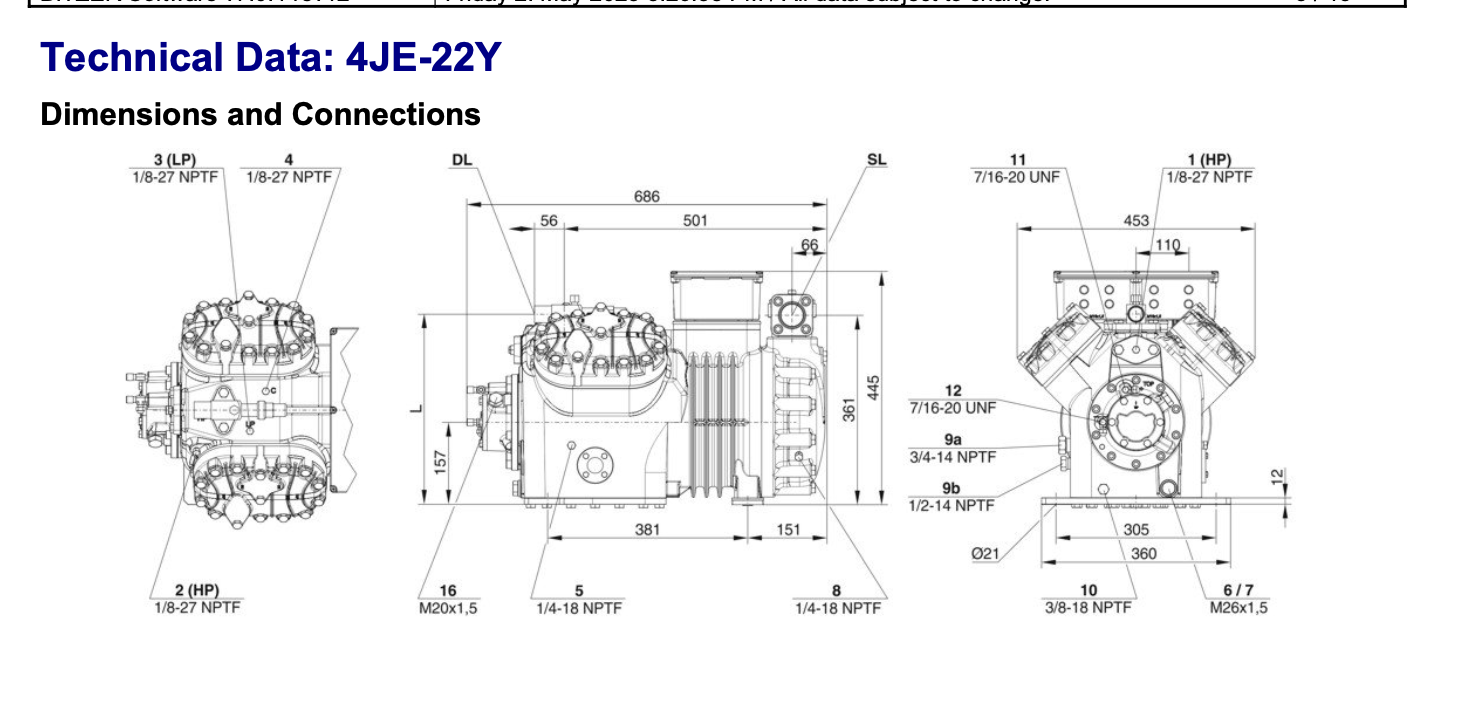

• Suction Connection: 42 mm – 1 5/8”
• Discharge Connection: 28 mm – 1 1/8”
• Discharge Temperature: 89.9°C
• Sound Pressure Level: 69.5 dB(A) at -10°C / 45°C

🛢 Oil & Refrigerant Compatibility

• Standard Oil Charge: 4.00 dm³ – BSE32
• Compatible Refrigerants:

• R404A, R507A, R407A/F → BSE32
• R134a (>70°C) → BSE55
• R22 → B5.2
• R1234yf → BSE32 / BSE55
• R1234ze → BSE55 / BSE85K
• R454C, R455A → BSE32
• R515B → BSE55 / BSE85K

💡 Why Choose the 4JE-22Y

✔️ High-capacity compressor for cold room and freezer operations

✔️ IP54 enclosure with optional IP66 upgrade

✔️ Compatible with Bitzer CM-RC-02 IQ Module

✔️ Quiet and efficient – rated at just 69.5 dB(A)

✔️ Includes suction and discharge shut-off valves, vibration dampers

------------------------------------------------------------------------------------------
📦 Compatible Accessories

• Receiver: Bitzer F1052T

• Volume: 105.0 L
• Max R404A charge: 100.9 kg

• IQ Module: CM-RC-02

• Features: Modbus, Bluetooth, real-time data logging
• Enclosure: IP66

------------------------------------------------------------------------------------------
🚚 Shipping & Availability

• ✅ Available in 380–420V / 50Hz
• ⚙️ Custom 60Hz versions made to order in 3–4 weeks
• 🌍 Export-ready packaging and international shipping available
